En-3

● OPERATING INSTRUCTIONS ●

•   Make sure the polarity of the batteries is correct.

•   Do not use manganese batteries and leaking batteries. The remote controller

could malfunction.

•   Do not use rechargeable batteries.

•   Replace all batteries with new ones of the same type.

•  Batteries  can  be  used  for  approximately  1  year.  However,  batteries  with

expired shelf lives last shorter.

•  Press RESET gently using a thin instrument.

  If the RESET button is not pressed, the remote controller may not operate

correctly.

Before operation:

 Insert the power supply plug into the power outlet and/or turn the breaker on.

•  Press CLOCK gently using a thin instrument.

Operation indicator lamp

Remote control receiving section

Emergency

operation switch

 Page 4

Air inlet (back and side)

Refrigerant piping

Drainage hose

Air outlet

Drain outlet

Horizontal vane

Vertical vane

Air outlet

Fan

Air fi lter

(Nano platinum fi lter)

Air inlet

Heat exchanger

Front panel

Outdoor unit

Installing the remote controller batteries

Setting current time

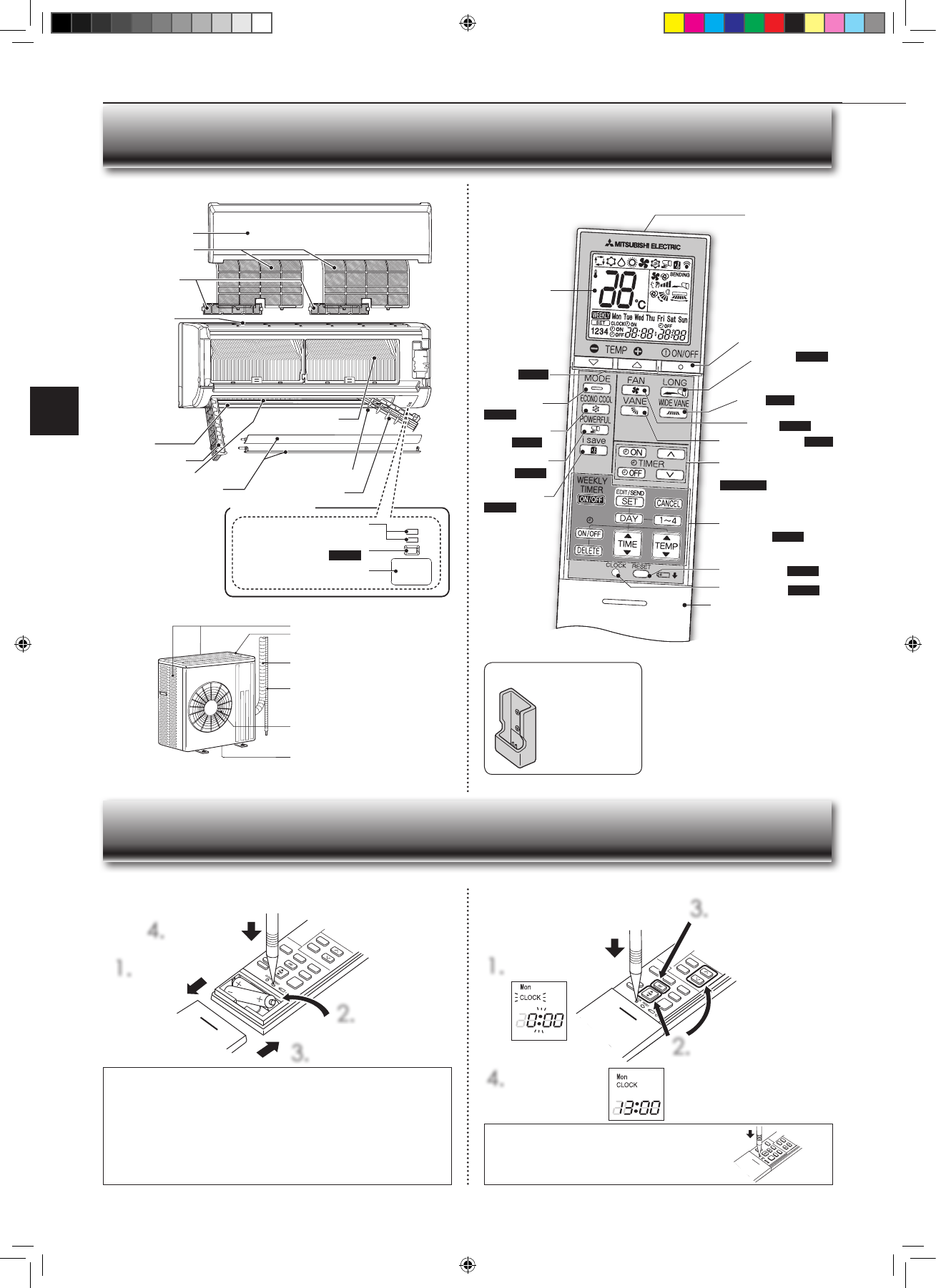

N

AME OF EACH PART

P

REPARATION BEFORE OPERATION

1.

 Press CLOCK.

4.

 Press CLOCK again.

2.

 Press either the TIME button or

the TIMER buttons to set the

time.

Each press increases/decreases

the time by 1 minute (10 minutes

when pressed longer).

Indoor unit

Remote controller

Outdoor units may be different in appearance.

1.

 Remove the front lid.

2.

 Insert the negative

pole of AAA alkaline

batteries fi rst.

3.

 Install the front lid.

4.

 Press RESET.

Air cleaning fi lter

(Electrostatic anti-allergy

enzyme fi lter, option)

Remote controller holder

Signal transmitting

section

Distance of signal :

About 6 m

Beep(s) is (are) heard

from the indoor unit

when the signal is

received.

Operation

display section

ON/OFF

(operate/stop) button

Temperature

buttons

 Page 4

Operation

select button

 Page 4

ECONO COOL

button

 Page 6

FAN speed control

button

 Page 5

LONG button

 Page 5

WIDE VANE control

button

 Page 5

VANE control button

 Page 5

TIME, TIMER set but-

tons

 Pages 3, 6

  Increase time

  Decrease time

CLOCK button

 Page 3

RESET button

 Page 3

Lid

Slide the lid down to open

the remote controller. Slide

it down further to get to the

weekly timer buttons.

•  Install the remote

controller holder in a

place where the signal

can be received by the

indoor unit.

•   When the remote

controller is not used,

place it in this holder.

Only use the remote controller provided

with the unit.

Do not use other remote controllers.

If two or more indoor units are installed

in proximity to one another, an indoor

unit that is not intended to be operated

may respond to the remote controller.

Display section

3.

 Press the DAY button

to set the day.

POWERFUL

button

 Page 5

i-save button

 Page 6

WEEKLY TIMER

set buttons

 Page 7

Fan guard

*1 The manufacturing year and month is indicated on the spec name plate.

Spec name plate *1

Spec name plate *1
