Installation manual

6

EKHTS260AC6W1

Domestic hot water tank for air to water heat pump system

4PW73828-1 – 2012.05

4

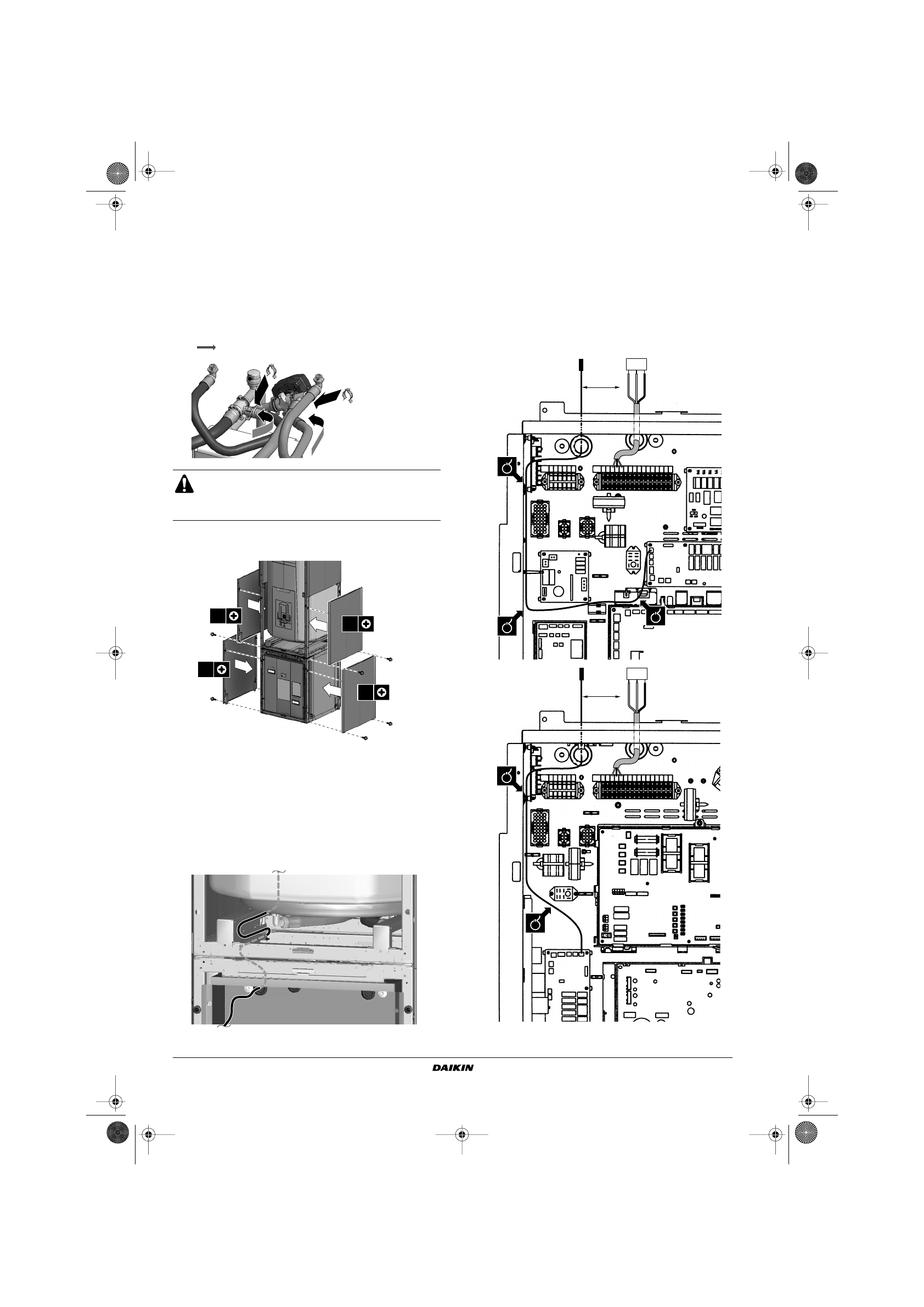

Connect the flexible hoses as indicated below and in figure 4.

5

Fix the side bottom decoration panels of the domestic hot water
tank to the indoor unit.

6

Connect the pressure relief valve (field supply, opening pressure
maximum 10 bar) and the drain.

7

Connect the thermistor wire to the indoor unit switch box. Make
sure power supply is switched off. Refer to the wiring diagram
delivered with the indoor unit.

The distance between the thermistor cable and power supply
cable must always be at least 25 mm to prevent electromagnetic
interference on the thermistor cable.

1 Plug the thermistor cable connector in the socket X11A

(A3P) on the PCB.

2 Fix the cables to the cable tie mountings with cable ties to

ensure strain relief.

3 When routing out cables, make sure that these do not

obstruct mounting of the indoor unit cover.

Note: only relevant field wiring is shown.

1

Hot water from the tank (G 3/4" Female)

2

Cold water to the tank (G 3/4" Female)

3

Anode

4

Hot water from the indoor unit to the tank coil (quick coupling
90°)

5

Return water from the tank coil to the indoor unit
(quick coupling)

6

3-way valve

Water flow direction

It is recommended to install a shut off valve to the cold
water inlet. Close this shut off valve during periods of
absence to avoid damage to the surroundings in case
water should leak.

1

Decoration panel

2

Quick fixation hole

3

Fasten with 2 screws

1

3

2

4

2x

2x

2x

2x

2

2

1

1

1

1

2

2

3

3

3

3

X11A

A3P

BLU

BLK

BRN

N Y L

3-way

valve

X2M

3 4 5

>25 mm

1~

BLU

BLK

BRN

N Y L

3-way

valve

X2M

3 4 5

>25 mm

X11A

A3P

3~
