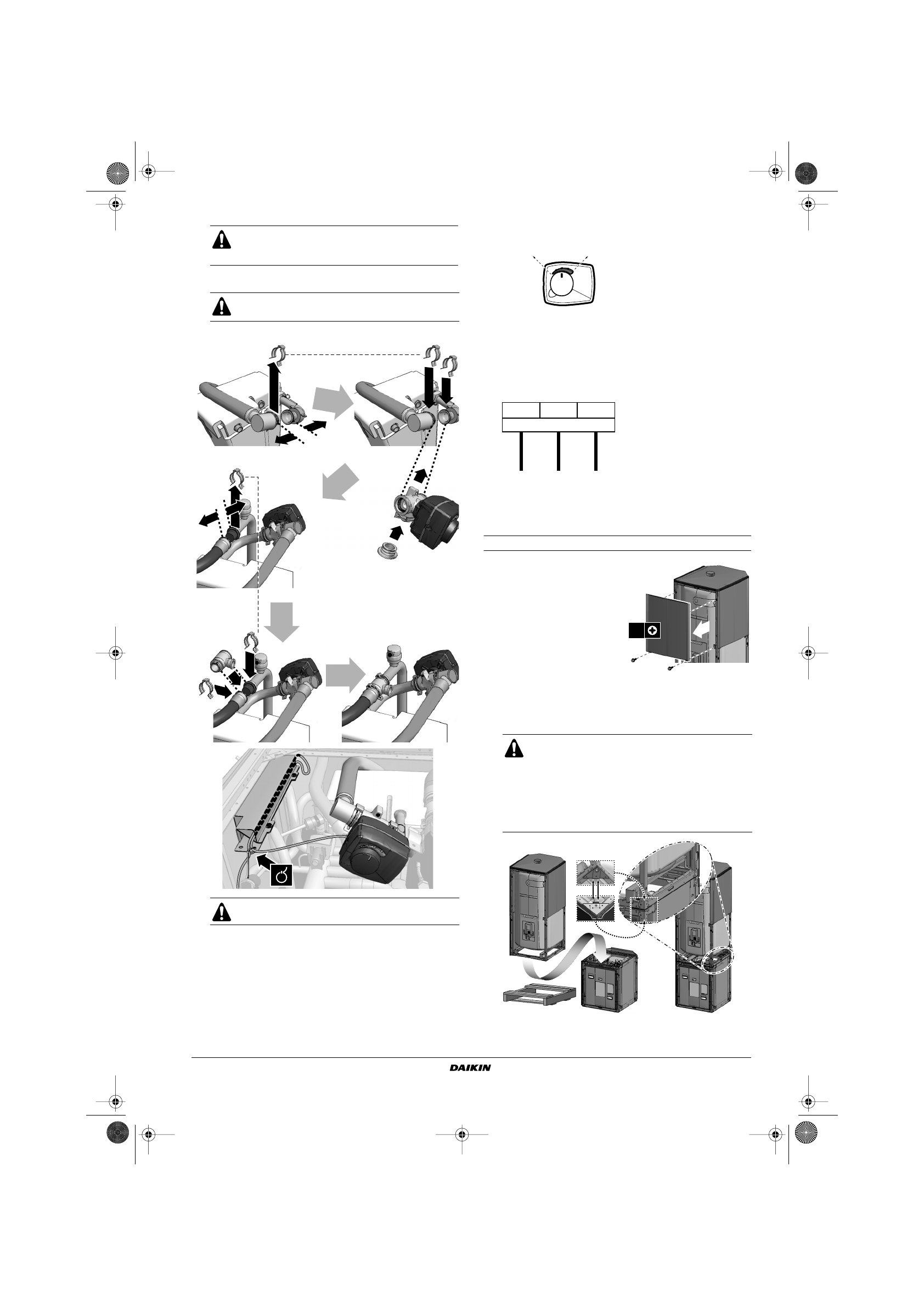

EKHTS260AC6W1
Domestic hot water tank for air to water heat pump system
4PW73828-1 – 2012.05
Installation manual
5
5
Install the 3-way valve body in the pipework.
Refer to the figure below before making the connection.
6
Push the motor on the sleeve.
Make sure not to rotate the sleeve during this action, so as to
maintain the valve position as set during step 4.
7
Put the turn knob on the valve motor cover as shown below.
Make sure that the turn knob is completely pushed in to allow
the turn knob being operated automatically by the unit. If the turn
knob is lifted slightly, manual operation is possible.
8
Perform the wiring in the (indoor) unit switch box in accordance
with the following figure: (make sure power supply is switched off)
Make sure to follow the appropriate wiring routing inside of the
unit (this wiring routing can be found in the installation manual of
the indoor unit).
Refer also to the wiring diagram delivered with the indoor unit.
Installing the hot water tank on top of the indoor unit
1
Remove the top front
decoration panel of the tank
module as indicated in the
figure.
2
Routing of the flexible hoses
with threaded connection
coupling
(G 3/4” female).
Depending on the installation
location (left or right side
installation), punch the
required right or left knock-out
holes out of the rear plate. Apply the grommet to the edges of
the knocked out holes to protect the flexible hoses.
3
Mount the tank module on top of the indoor unit.
If the valve is not positioned in this way before mount-
ing the motor, the valve will give way to both domestic
water and room heating during operation.
Avoid contact between hot piping and electrical wiring
at all time.
The 3-way valve needs to be installed indoors.
B
C
1
2
2
3
4
5
10
11
9
7
8
8
6
12
Room heating
Domestic hot water tank
X2M
3
4
5
3-way valve
BLU
BLK
BRN
N
Y
L
■
Because of the weight of the domestic hot water
tank, it is advised to handle and lift it with two
persons.
■
Refer to the figure below and make sure that the
positioning guides on all four corners of the
domestic hot water tank bottom perfectly match
on the positioning guides of the indoor unit top
when mounting the tank module.
2x
