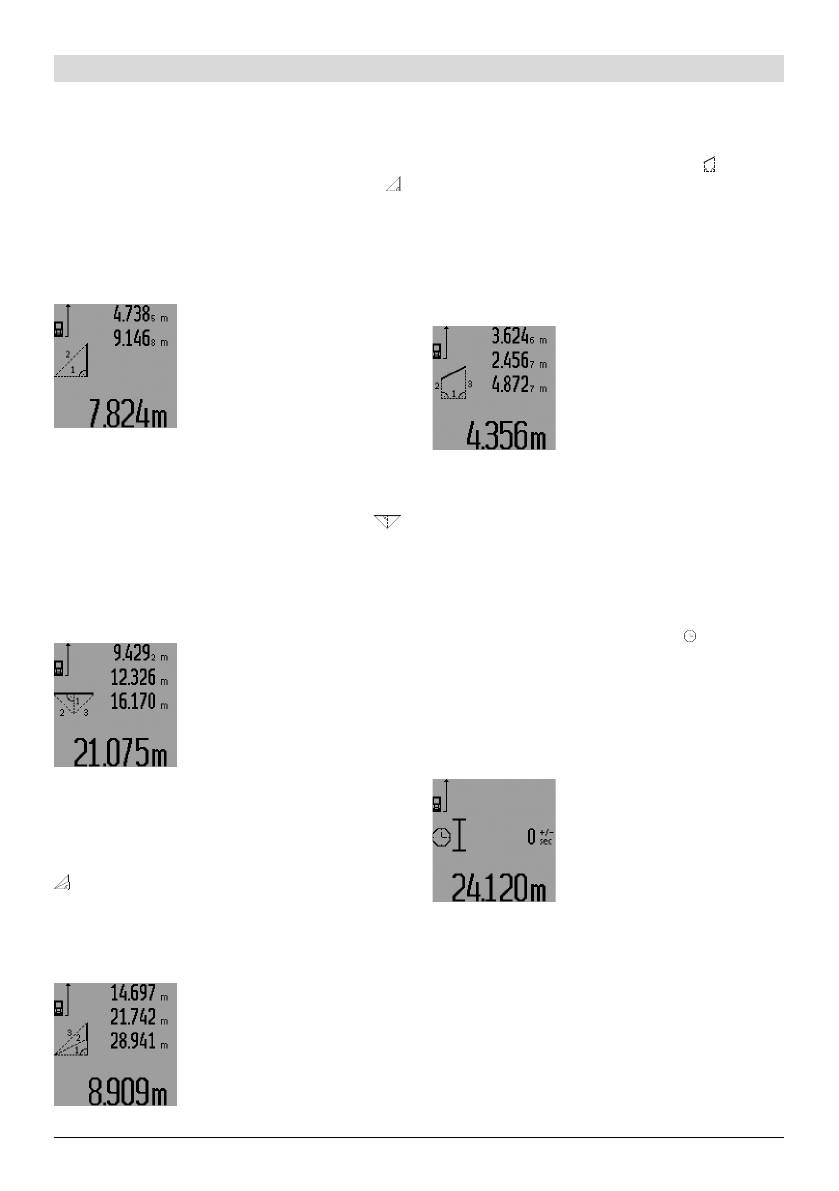

a)  Simple Pythagoras Measurement

(see figure H)

Press the function-mode button

3

 until the in-

dication for simple Pythagoras measurement
appears on the display.
Measure distances

“1”

 and

“2”

 in this sequence

with a length measurement. Pay attention that a
right angle exists between distance

“1”

 and the

sought distance

“E”

.

Upon completion of the last
measurement, the result for
the sought distance

“E”

 is

displayed in the result line

c

.

The individual measured
values are displayed in the
measured-value lines

a

.

b) Double Pythagoras Measurement

(see figure I)

Press the function-mode button

3

 until the indi-

cation for double Pythagoras measurement

appears on the display.
Measure distances

“1”

,

“2”

 and

“3”

 in this se-

quence with a length measurement. Pay atten-
tion that a right angle exists between distance

“1”

 and the sought distance

“E”

.

Upon completion of the last
measurement, the result for
the sought distance

“E”

 is

displayed in the result line

c

.

The individual measured
values are displayed in the
measured-value lines

a

.

c)  Combined Pythagoras Measurement

(see figure J)

Press the function-mode button

3

 until the in-

dication for combined Pythagoras measurement

 appears on the display.

Measure distances

“1”

,

“2”

 and

“3”

 in this se-

quence with a length measurement. Pay atten-
tion that a right angle exists between distance

“1”

 and the sought distance

“E”

.

Upon completion of the last
measurement, the result for
the sought distance

“E”

 is

displayed in the result line

c

.

The individual measured
values are displayed in the
measured-value lines

a

.

d) Trapezium Measurement (see figure K)

Press the function-mode button

3

 until the in-

dication for trapezium measurement   appears
on the display.
Measure distances

“1”

,

“2”

 and

“3”

 in this

sequence with a length measurement. Pay at-
tention that the measurement of distance

“3”

starts exactly at the end point of distance

“1”

and that a right angle exists between distances

“1”

 and

“2”

 as well as between

“1”

 and

“3”

.

Upon completion of the last
measurement, the result for
the sought distance

“E”

 is

displayed in the result line

c

.

The individual measured
values are displayed in the
measured-value lines

a

.

Time-delayed Length Measurement

Time-delayed length measurement is helpful
e. g. when measuring at hard to reach locations
or when movements of the measuring tool
during measuring are to be prevented.
For a time-delayed length measurement, press
function-mode button

3

 until the indicator for

time-delayed length measurement   appears on
the display.
The time period from the actuation until the
measurement takes place is displayed in the
measured-value line

a

. The time period can be

adjusted between 1 s and 60 s by pressing the
plus button

6

 or the minus button

12

.

Then press the measuring
button

7

 to switch the laser

beam on and aim at the tar-
get point. Press the measur-
ing button

7

 again to actuate

the measurement. The meas-
urement takes place after the

set time period. The measured value is dis-
played in the result line

c

.

The addition and subtraction of measuring re-
sults as well as minimum/maximum measure-
ments are not possible for time-delayed length
measurements.
