To end the minimum/maximum measurement,
briefly press the measuring button

7

. Pressing

the measuring button again starts a new meas-
urement.
The minimum/maximum measurement can also
be used for length measurements within other
measuring modes (e. g. area/surface measure-
ment). For this, press button

13

 once for mini-

mal measurement and twice for maximal meas-
urement each time when determining individual
measured values. Then press the measuring
button

7

 to switch the laser beam on. Move the

measuring tool in such a manner that the de-
sired minimum or maximum value is measured,
and press the measuring button

7

 to take over

the minimum or maximum value into the current
calculation.
For time-delayed length measurements and
when in mark-out mode, minimum/maximum
measurements are not possible.
The minimum/maximum measurement auto-
matically switches off after 5 min.

Area Measurement

For area/surface measurements, press button

4

until the indicator for area measurement
appears on the display.
Afterwards, measure the length and the width,
one after another, in the same manner as a
length measurement. The laser beam remains
switched on between both measurements.

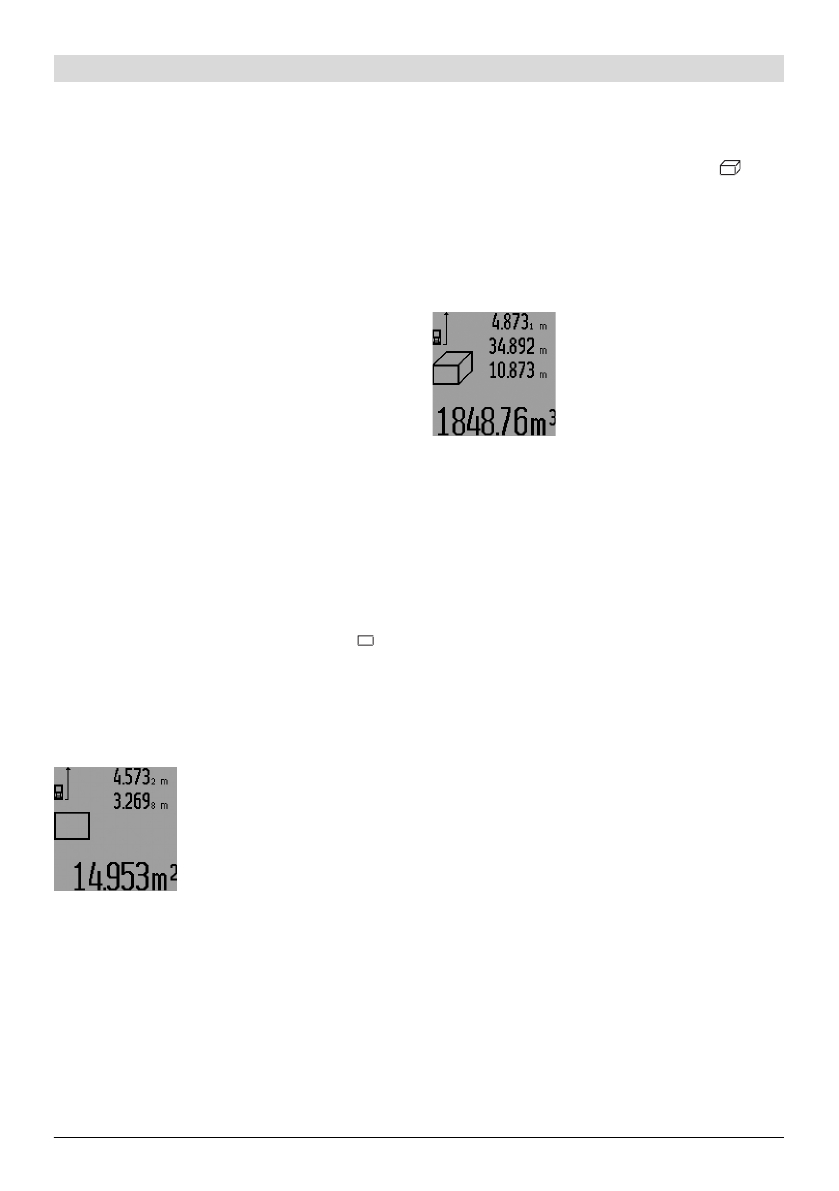

Upon completion of the sec-
ond measurement, the sur-
face is automatically calculat-
ed and displayed in the result
line

c

. The individual meas-

ured values are displayed in
the measured-value lines

a

.

Volume Measurement

For volume measurements, press button

4

 until

the indicator for volume measurement

appears on the display.
Afterwards, measure the length, width and the
height, one after another, in the same manner as
for a length measurement. The laser beam re-
mains switched on between all three measure-
ments.

Upon completion of the third
measurement, the volume is
automatically calculated and
displayed in the result line

c

.

The individual measured val-
ues are displayed in the
measured-value lines

a

.

Values above 999 999 m

3

 cannot be indicated;

“ERROR”

 and

“– – – – ”

 appear on the display.

Divide the volume to be measured into indivi-
dual measurements; their values can then be
calculated separately and then summarized.

Indirect Length Measurement
(see figures H – K)

The indirect length measurement is used to
measure distances that cannot be measured
directly because an obstacle would obstruct the
laser beam or no target surface is available as a
reflector. Correct results are achieved only when
the right angles required for the respective meas-
urement are exactly adhered to (Pythagorean
Theorem).
Pay attention that the reference point of the
measurement (e. g. the rear edge of the measur-
ing tool) remains exactly at the same location for
all individual measurements within a measuring
sequence (exception: trapezium measurements).
The laser beam remains switched on between
the individual measurements.
For indirect length measurements, four measur-
ing modes are available. Each measuring mode
can be used for determining different distances.
To select the measuring mode, press the func-
tion-mode button

3

 until the symbol of the de-

sired measuring mode is indicated on the display.
