5.4  UPS connection

Check that the indications on the name plate located on the back of the UPS correspond to the AC-power source

and the true electrical consumption of the total load.

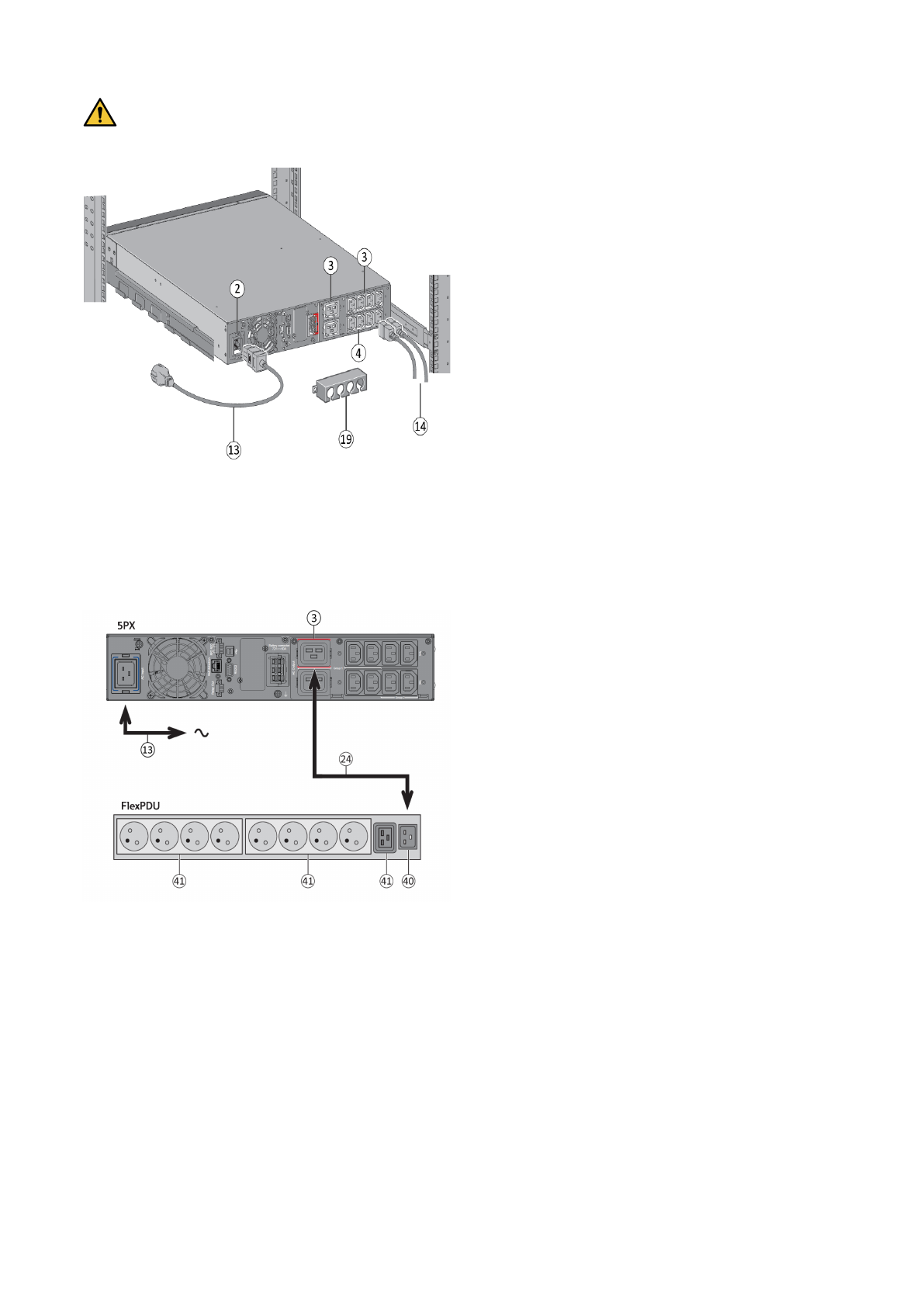

1. For the 5PX 1000 / 1500, connect the UPS input socket

(2) to the AC power source using the cable of the
protected equipment.

For the 5PX

 2200

/ 3000, connect the UPS input socket (2)

to the AC-power source using the cable (13) supplied.

2. Connect the loads to the UPS using the cables (14). It is
preferable to connect the priority loads to the
outlets marked (3) and the non-priority loads to the
outlets Group1, Group2 (4) that can be programmed.

For the 5PX 2200 / 3000 models, connect any high-power
devices or matching Power Distribution Unit (PDU) to
the 16A outlet.

Fit the connection securing system that prevents the
plugs from being pulled out accidentally.

3. To program shutdown and startup of the Group1 and

Group2 outlets in order to extend battery runtime and
perform scheduled shutdowns, please see the "

In/Out

settings

" section.

5.5  Connection with a FlexPDU (Power Distribution Unit) optional module

1. 5PX

 1000 / 1500 : Use the power cable of the protected

equipment.

5PX

 2200 / 3000 connect the UPS input socket to the AC

power source using the cable (13) supplied.

2. Connect the input socket on the FlexPDU module (40)

to the UPS outlet (3) using the cable (24) supplied. The

cable and the connectors are marked in red.

3. Connect the equipment to the outlets (41) on the

FlexPDU module. These outlets differ, depending on the
version of the FlexPDU module.

4. Fit the connection securing system that prevents the
plugs from being pulled out accidentally.

5.6  Connection with a HotSwap MBP (Maintenance ByPass) optional module

The HotSwap MBP module makes it possible to service or even replace the UPS without affecting the connected loads

(HotSwap function).
