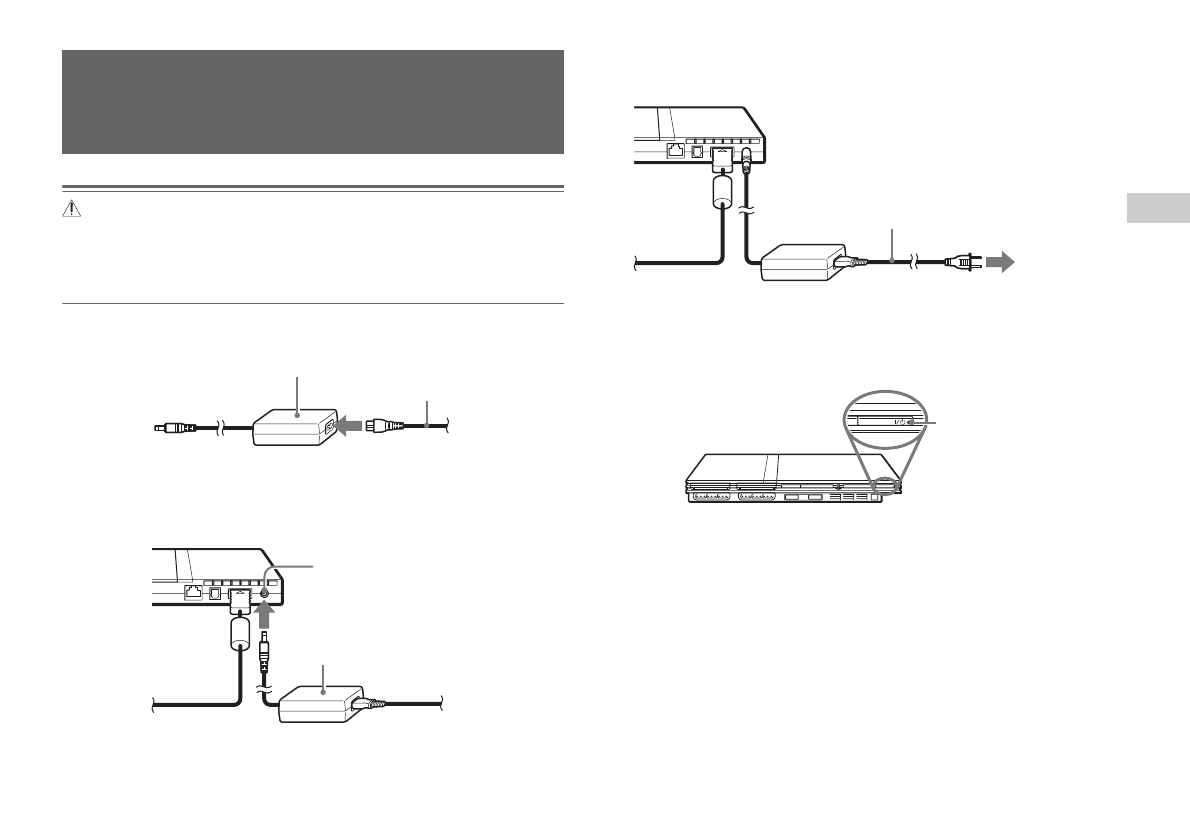

Connecting the AC adaptor and AC power cord

Pr
eparation

GB

Pr
eparation

Warnings

• The socket-outlet shall be installed near the equipment and shall be easily

accessible.

• Do not plug the AC power cord for the console into the electrical outlet until you

have made all other connections.

1

Connect the AC power cord to the AC adaptor.

2

Plug the connector of the AC adaptor into the

!

 DC IN 8.5V

connector on the console rear.

3

Plug the AC power cord into the electrical outlet.

The

=

/

1

 (on/standby) indicator on the console front will light up in red

to indicate that the console is in standby mode.

Connecting the AC adaptor and
AC power cord

AC adaptor

AC power cord

Console rear

AC adaptor

!

 DC IN 8.5V connector

Console rear

AC power cord

To the electrical outlet

Some regions and countries may
use a different electrical outlet
plug from the one illustrated.

RESET

Console front

]/1

 indicator
