English

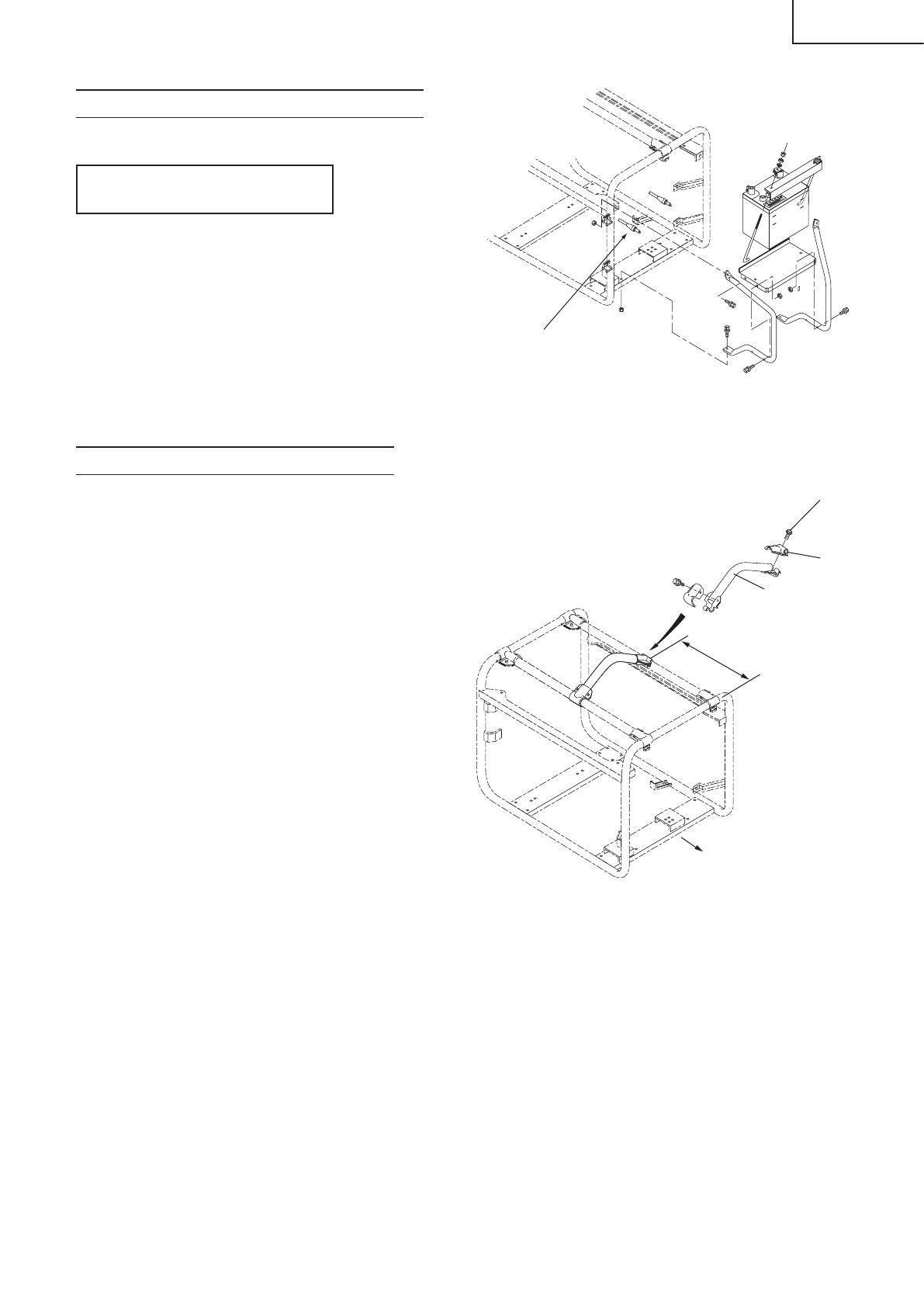

BATTERY TRAY INSTALLATION

RECOMMENDED BATTERY for E57(S3P)

Recommended battery:

Capacity: 12V/26A·h

NOTE:

   Clamp the wire of red sign to the positive (+)

terminal and the black wire to the negative (–)

terminal of the battery. Do not reverse these

positions.

Be sure the battery is installed on the battery

mount tray securely.

HANGER KIT INSTALLATION

(Optional)
1.  Position the Hanger

③

 at the generator’s

balance point as shown in Fig. 14.

2.  Fit the end tabs of the Hanger brackets

②

through the Hanger

③

 slots, and bolt the

Hanger brackets

②

 to the Hanger

③

 using

the four M6 x 15 mm Bolts

①

 and tighten

securely.

  Parts Number: KY90077AA

UP

PE

R L

EV

EL

LO

WE

R L

EV

EL

MADE IN JAPAN

FB

300 mm

 ± 30

 mm

②

①

③

The side of Alternator

Fig. 13

Fig. 14

Red sign
