EN - 3

2.1.  MACHINE COMPONENTS

(Fig. 1)

A.

Chassis

B.

Engine

C.

Cutting means

D.

Rear discharge guard

E.

Side discharge chute (if provided)

F.

Side discharge guard (if provided)

G.

Grass catcher (if provided)

H.

Handle

I.

Operator presence lever

J.

Drive lever (if provided):

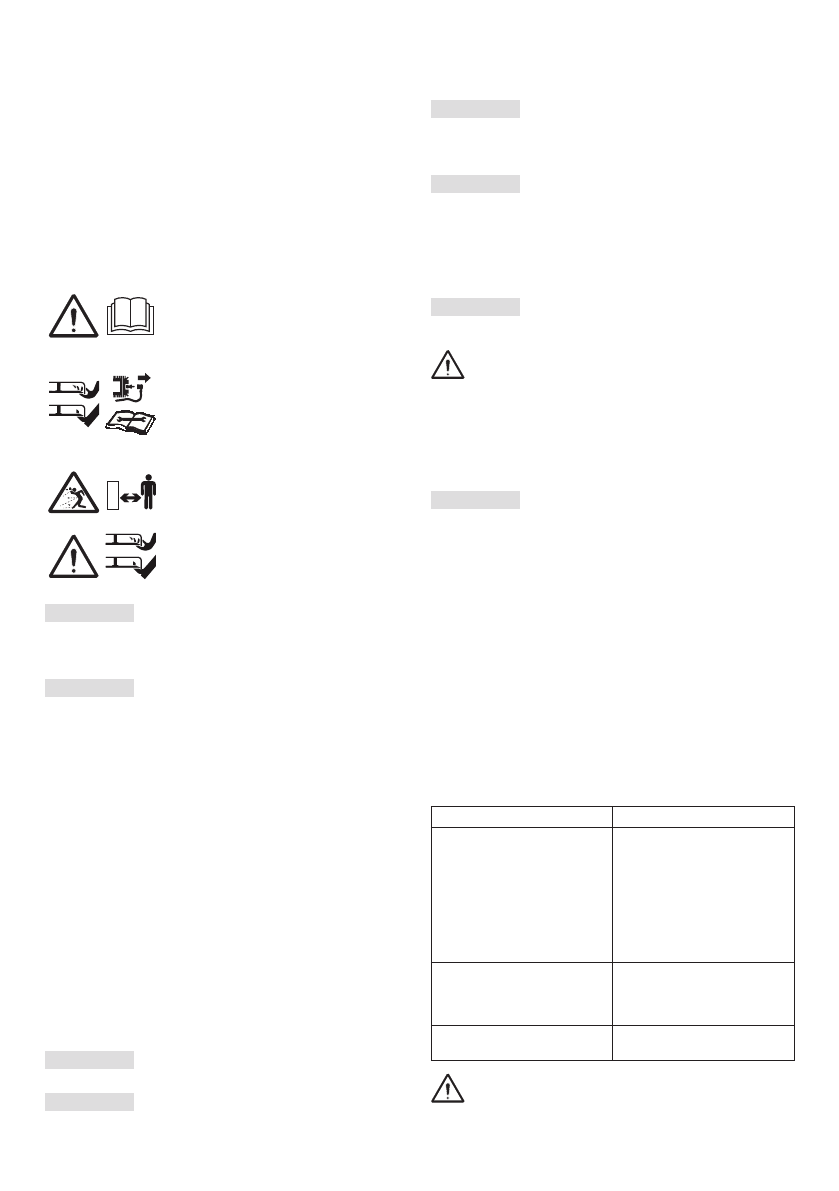

2.2.  SAFETY SIGNS

WARNING:

Read the instructions before operating 

the machine.
CAUTION:

Do not put hands or feet near or under 

the  opening  of  the  cutting  means. 

Disconnect the spark plug cap and read 

the instructions before carrying out any 

maintenance or repairs.

DANGER! Risk of thrown objects. Keep 

all  persons  away  from  the  work  area 

whilst working.
DANGER!  Danger  of  cutting  yourself. 

Cutting  means  in  motion.  Do  not  put 

hands or feet near or under the opening 

of the cutting means.

 IMPORTANT

  Damaged or illegible labels must be replaced..

Order replacement decals from an authorised service centre.

3.

ASSEMBLY

 IMPORTANT

  Unpacking  and  assembly  must  be  carried  out

on a flat, solid surface with sufficient space to move the machine

and the packaging.

1.

Unpacking (Fig. 2)

2.

Assembling and adjusting the handle (Fig. 3)

3.

Grass catcher assembly (Fig. 4)

4.

CONTROLS

•  Starter control

 -

Type I: Manual starter hand grip (Fig. 5). Enables manual 

starting of the engine

 -

Type  II:  Push-button  electric  starter  control  (Fig.  6). 

Enables electrical starting of the engine

•

Operator presence lever

This lever is used to engage the cutting device and the drive. 

The engine stops when the lever is released (Fig. 7).

•

Drive engagement lever (if provided)

This  engages  the  wheel  drive  and  allows  the  machine  to 

move forward (Fig. 8).

 IMPORTANT

  The  engine  must  always  be  running  with  the

drive disengaged.

 IMPORTANT

  To prevent damage to the transmission, do not

pull the machine backwards with the drive engaged.

•

Cutting height adjustment

By  lowering  or  raising  the  chassis  the  grass  can  be  cut  at 

different heights. (Fig. 9)

 IMPORTANT

  This  operation  must  be  carried  out  when  the

cutting device is stationary.

5.

USING THE MACHINE

 IMPORTANT

  For instructions regarding the engine and the

battery (if supplied), read the relevant manuals.

5.1.  PRELIMINARY PROCEDURES

Place the machine in a stable horizontal position on the ground.

•

Filling up with oil and fuel

 IMPORTANT

  The  machine  is  supplied  without  engine  oil  or

fuel.

Refuelling  shall  take  place  with  the  machine

sw i t c h e d   o f f   a n d   t h e   s p a r k   p l u g   c a b l e

disconnected.

Proceed  to  refuel  and  check/top-up  engine  oil  according 

to  the  procedures  and  precautions  outlined  in  the  engine 

instruction manual.

•

Preparing the machine before starting work

 IMPORTANT

  Carry  out  this  operation  with  the  cutting  de

-

vice stationary.

With this machine, it is possible to mow the lawn in several ways:

•

Setting  up  for  cutting  the  grass  and  collecting  it  in  the 

grass catcher (Fig. 10)

•

Setting up for cutting and rear grass discharge onto the 

ground (Fig. 11)

•

Setting up for cutting and shredding the grass ('mulching' 

function) (Fig. 12)

•

Setting  up  for  cutting  and  lateral  grass  discharge  onto 

the ground (Fig. 13)

5.2.  SAFETY CHECKS

•

Check the integrity and correct assembly of all machine 

components;

•

Make sure that all fasteners are tightened correctly;

•

Keep every surface of the machine clean and dry.

Action

Result

1.

Start the machine.

2.

Release  the  engine  /  cutting 

means brake lever.

1.

The  cutting  means  should 

move.

2.

The levers must return to the 

neutral position automatically 

and  quickly,  the  engine  must 

switch  off  and  the  cutting 

device must stop within a few 

seconds.

1.

Start the machine.

2.

Engage the drive lever.

3.

Disengage the drive lever.

2.  The machine moves forward.

3.  The  machine  comes  to  a 

standstill.

1.

Test drive.

1.

No  abnormal  vibrations.  No 

abnormal sound.

If any of the results fail to match the indications

provided in the tables, do not use the machine!

Contact a service centre to have it checked and

repaired if necessary.
