Electric oven

TECHNICAL PASSPORT

EPT1 Oven Control Manual 1

Technical Data

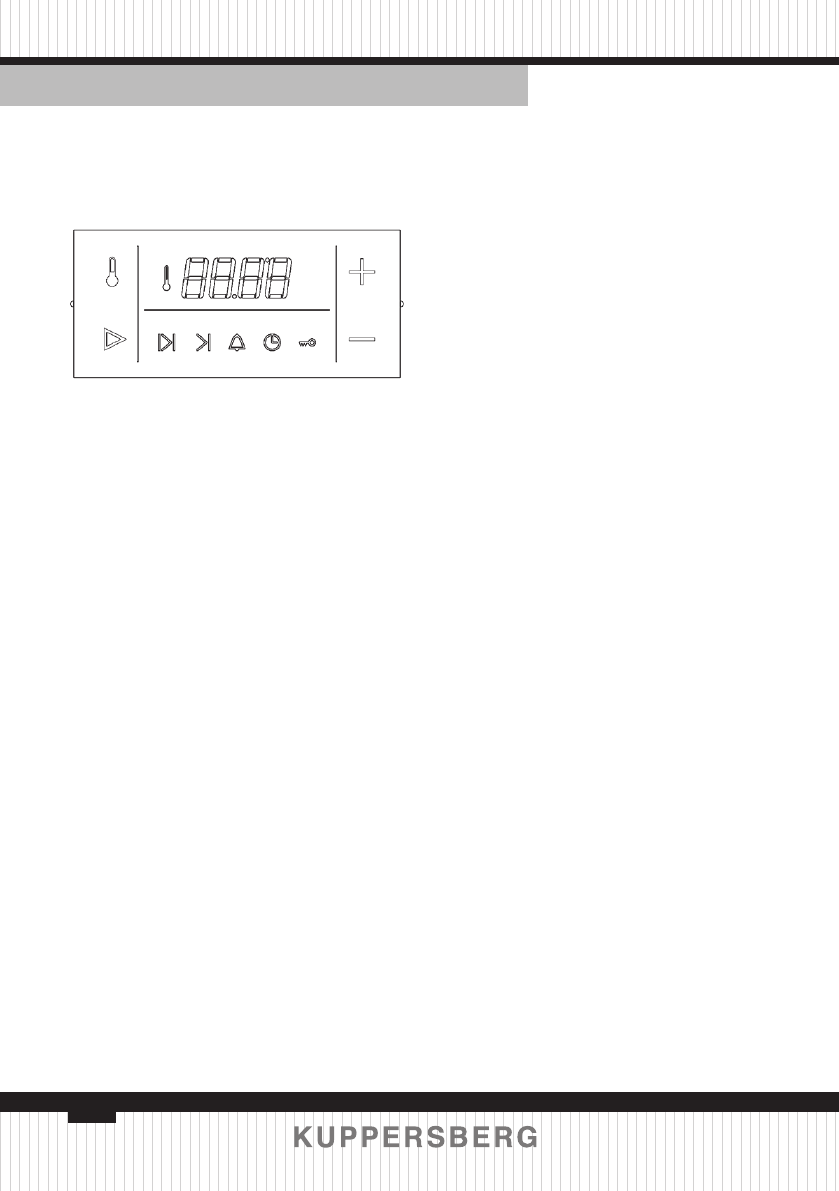

1.1 Display

1.2 Constants and Setting Ranges
[a] Automatic Program:

Setting range duration 0h:01min
to 10h:00min, end time = actual
time+23:59, accuracy 1 minute.

[b] Buzzer

Signal tone frequency: 2,2 kHz / 2,7 kHz
/ 3,2 kHz / 3,4 kHz = default = loudest
tone
Tone setting menu: Press MINUS key for
3 sec while no program is active
Key press answering signal: 60ms

Clear function confirm signal: 255ms

[br] Power Fail bridge time

Times and programs are restored after
power fail when it’s duration is not
longer than approx. 2 min

[c] Clock

Setting range 0h:00m to 23h:59m with

minutes to hour overflow.

[c] Display

setting time window: 5 sec after
choosing program or last value setting.

[m] Minute Minder

Setting range 0h:01m to 10h:00m,
accuracy 1 second.
Minute minder end state, automatically
timeout: 5 min

[t] Test Mode

Selecting possibility after power on: 15
sec.
Timeout unless key pressed: 60 sec.

2 Start of Operation

2.1 Power On

At power on (after Reset), relay outputs
are open.

Touch sensitivity coding jumper

Touch key sensitivity is selected by a
jumper on the backside of EPT printed
circuit board. It’s position is checked
once after power on, i.e. after Reset.
The display shows for 3sec according to
jumper position:

“META” =

standard Housing - Jumper

set

“GLAS” =

 Housing plus additional

Glass front -Jumper not set The “Glass”
position makes the touch keys more
sensitive.

Daytime flashing

After jumper position display, daytime

flashes,  starting  from  12:00.  The  Clock
symbol also flashes.
