EN

1

12

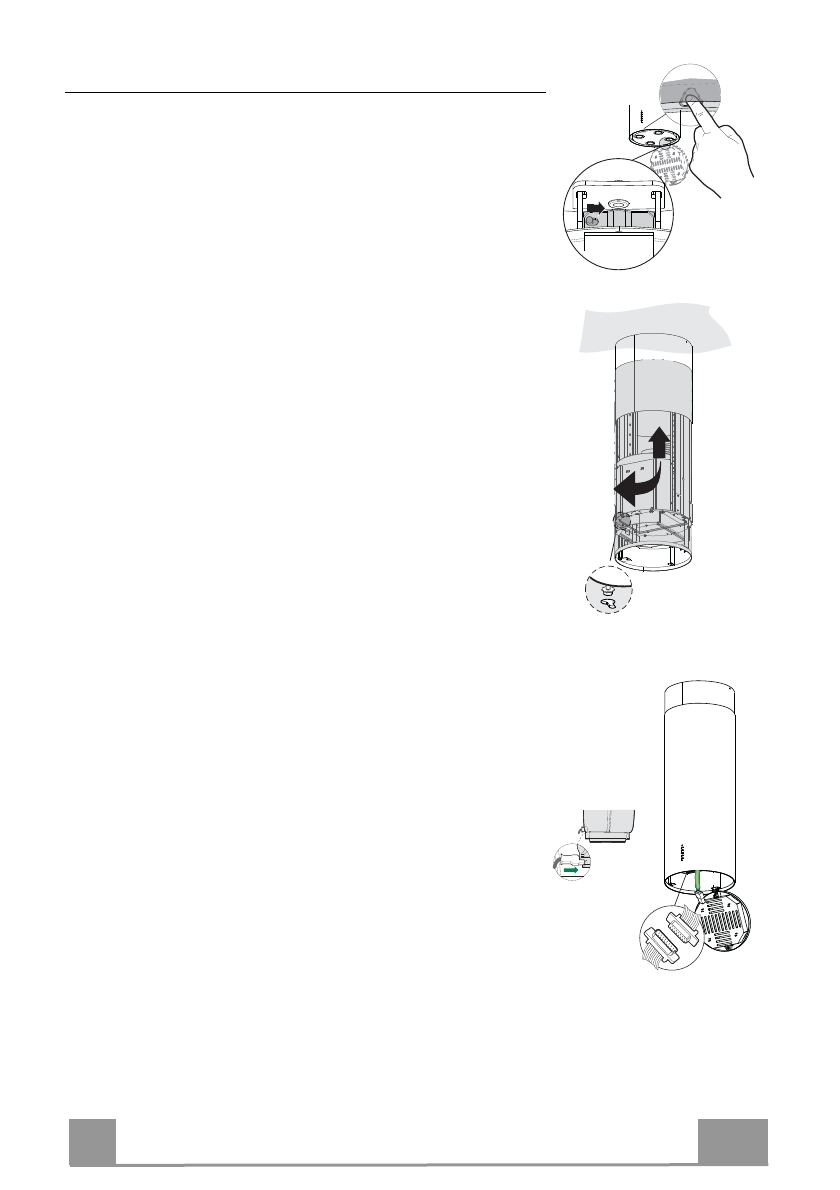

Installing of the chimney and fixing of the hood

When the hood is installed in recycling version the chimney has
to be positioned with the slots upwards. When the hood is in-
stalled in ducting version it has to be positioned in the opposite
way.
•  Place the chimney on the frame and fix it to the upper part of it

with the earlier removed screws. When installing the hood in
recycling version make sure that the slots correspond to the air
outlet of the recycling air outlet piece

15

.

•  Open the lighting unit by slightly pulling the notch. Remove

the unit from the hood by sliding the fixing pivot.

•  Remove the filter pushing it towards the back side of the hood

unit and simultaneously pulling downwards.

•  Remove possible charcoal filters.
•  In order to fix the hood body to the frame insert the 4 screws

12f

in their seats. It is necessary to leave at least 4-5 mm gap

between the screw heads and the frame plate.

•  Hook the hood canopy to the frame and turn it to the left until

it reaches the stop, then lock the screws immediately to prevent
the hood canopy from falling out accidentally.

2

1

ELECTRICAL CONNECTION

•  Connect the Hood to the mains power supply, inserting a two-

pole cut-out switch with contact aperture of at least 3 mm
along the line.

•  Ensure that the supply cable connector is properly inserted into

the Suction device socket

•  Hook up the Commands connector

Cmd

.

•  Hook up the Spotlights connector

Lux

 to the socket provided

behind the lighting unit cover.

• For the Recirculation Version, fit the Activated Charcoal

Odour Filter.

•  Replace the filters and the lighting unit.

Cmd

Lux
