INSTALLATION

Wall drilling and bracket fixing

11a

1

1

2

2

140

11

12a

164 164

788

540

450

140

X

1÷2

7.2.1

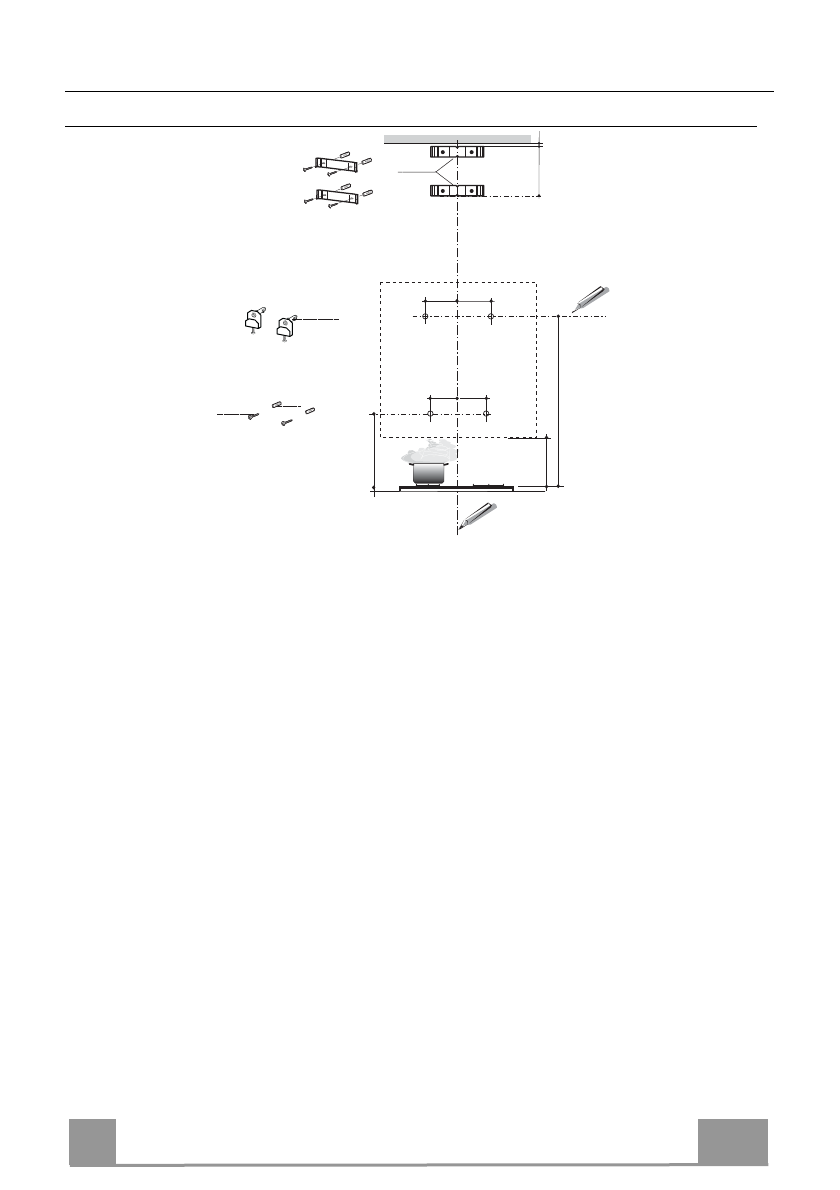

As a first step, proceed with the following drawings:
•  a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the

hood is to be fitted;

•  a horizontal line at a minimum  788 mm above the cooker top.
•  Mark a point

(1)

 on the horizontal line, 164 mm to the right of the vertical reference line.

•  Repeat this operation on the other side, checking that the two marks are levelled.
•  Mark a reference point

(2)

 as indicated at 140 mm from the vertical reference line and 540

mm above the cooker top.

•  Repeat this operation on the other side, checking that the two marks are levelled.
•  Drill at the marked points

(1)

, using a ø 12 mm drill bit.

•  Drill at the marked points

(2)

 using a ø 8 mm drill bit.

•  Insert the bracket plugs

11a

 into the holes (

1)

 and tighten the screws.

• Insert plug

11

 into holes

(2)

.

To install a decorative chimney ( optional )

• Place bracket

7.2.1

 on the wall, about 1-2 mm from the ceiling or from the upper limit,

aligning the centre (notch) with the vertical reference line.

•  Mark the wall at the centres of the bracket holes.
•  Place the bracket

7.2.1

 on the wall at X mm below the first bracket (X = height of the upper

chimney section), aligning the centre (notch) with the vertical line.

•  Mark the wall at the centres of the bracket holes.
•  Drill ø 8 mm holes at all the marked centre points.
•  Insert the wall plugs

11

 in the holes.

•  Fix the brackets using the

12a

 screws (4,2 x 44,4) supplied with the hood.
