ENGLISH
IMPORTANT!
The water heater must be mounted on a vertical wall only in the
position, specified in Fig. 4, 5, 6 (RS1/RS7 series vertically,
RS2/MS2 horizontally). Mounting of the appliance in any other
position or vertical or horizontal tilting will inevitably result in
failure of the water heater, emergency situation and is considered
a non-guarantee case by the manufacturer.

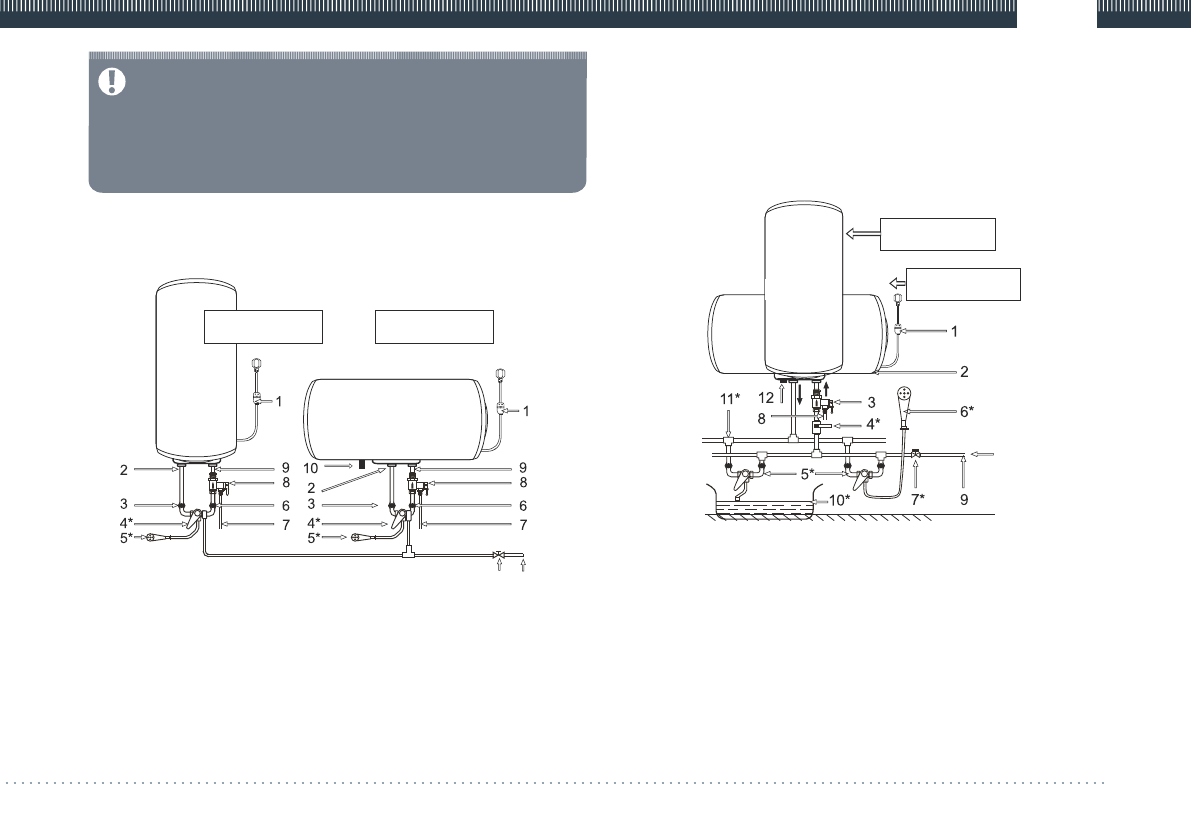

Fig
.
8
Water heater mounting methods
Fig.8 shows the way to mount the water heater for one consumption
point.
1 power cord with a plug and GFCI**
2 outlet nozzle
3 hot water flow adjustment tap*
4 mixer*
5 shower header*
6 cold water supply adjustment tap
7 discharge pipe
8 composite pressure safety valve
9 inlet nozzle
water drain
water drain
RS1
Vertical position
RS2/MS2
Horizontal position
11 12
1 power cord with a plug and GFCI**
2 mounted water heater
3 composite pressure safety valve
4 cold water inlet tap*
5 mixer*
6 shower header*
7 water main shut-off valve
8 discharge pipe
9 water main
10 tub*
11 T-bend
12 magnesium anode-nozzle for water discharge (for RS2 series)
* not included in the scope of delivery
** depending on the product batch, GFCI can be located not within the power cable electric plug
cold water
RS1
Vertical position
RS2/MS2
Horizontal position
Water heater mounting methods
Fig.9 shows the way to mount the water heater for several consumption
points.
Fig
.
9
10 magnesium anode-nozzle for water discharge (for RS2 series)
11 water main shut-off valve*
12 water main
* not included in the scope of delivery
** depending on the product batch, GFCI can be located not within the power cable electric plug
7
/
RS7
/
RS7
