Fig

.

6

1

2

3

5

6

7

8

9

4

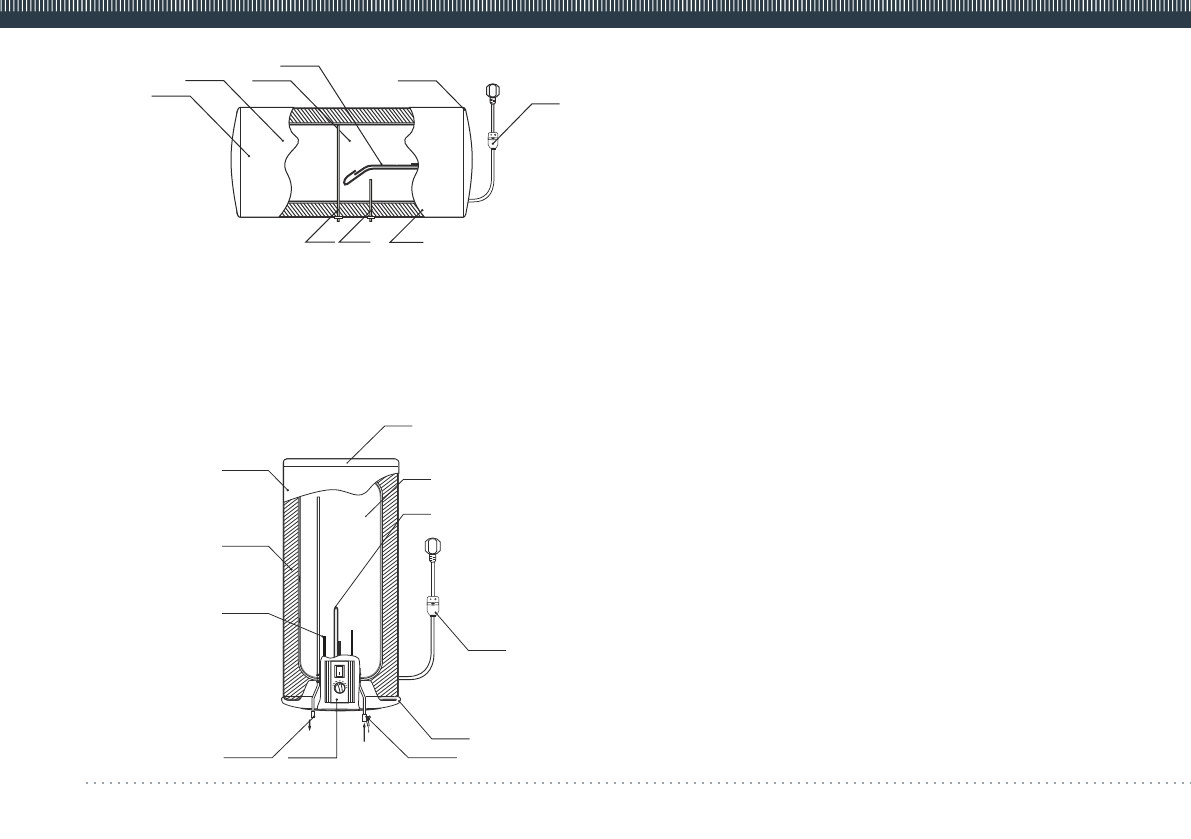

S2

 series

 (

Fig.6)

1   left composite protective cover

2   external case

3   inner tank

4   heating element

5   right composite protective cover

6   power cable with GFCI

7   urethane foam heat insulation layer

8   inlet nozzle

9   hot water outlet nozzle

RS1

/RS7 series

 (

Fig

.

7)

1   upper composite protective cover

2   inner tank

3   heating element

4   power cable with GFCI

5   lower composite protective cover

6   inlet nozzle

7   control panel

8   hot water outlet nozzle

9   protective magnesium anode

10   urethane foam heat insulation layer

11   external case

Fig

.

7

outlet

inlet

1

2

3

4

5

6

7

8

9

10

11

6.

WATER HEATER INSTALLATION

Location

1. Electric water heater should be mounted on a firm wall.

2.  The  wall,  where  the  electric  water  heater  is  to  be  mounted,  must
withstand at least the double weight of the water heater, fully filled with
water; there must be no cracks and other damages on the wall. Otherwise
it is necessary to take measures to strengthen the mounting or mount the
water heater on a special support.

3. If a bathroom is too small, the water heater can be installed elsewhere,
unexposed  to  direct  sunlight  and  unavailable  for  moisture.  However,  to
reduce heat losses in pipelines, the location, where a water heater is to be
installed,  must  be  as  close  to  the  place,  where  hot  water  is  used,  as
possible.

5.

SCOPE OF DELIVERY

1. Water heater   1 pc.
2. Anchor bolt   2 pcs.*
3. Securing plate   1 pc.**
4. Pressure safety valve   1 pc.
5. Discharge pipe   1 pc.
6. Operation manual   1 pc.
7. Guarantee card   1 pc.
8. Packing   1 pc.

*   only for RS1/RS2

/

RS7 series

**   only for MS2 series
