TROUBLESHOOTING

Table 6

7. Bear  in mind to check serviceability of the relief valve every 14 days
inspection method:

- turn the discharge lever to the left up until you feel the change of thread,
then  water  must  start  flowing  from  the  valve's  hole.  After  checking  the
water flow, return the lever to its initial position.

IMPORTANT!

If  water  doesn't  flow,  then  the  valve  is  damaged.  In  this  case  you
must not use the heater and it is recommended to call for a service
technician.

8. If necessary, wipe external surfaces of the heater by a damp cloth with
soap.

Possible malfunctions and troubleshooting methods

1

1.

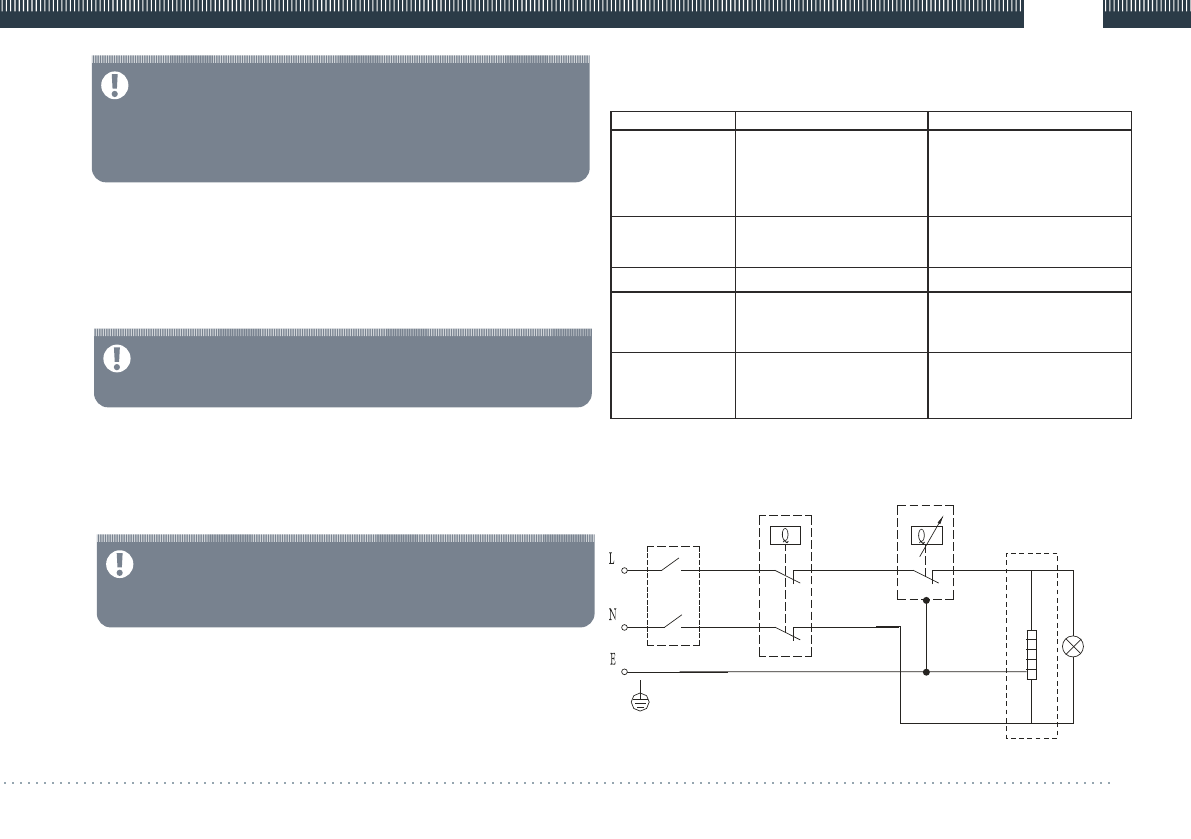

WIRING DIAGRAM

Fig

.1

9

Switch   only for RS series
Indicator light   only for MS2/RS7 series

Switch

Temperature limiter

Thermostat

Heating

indicator

light

Heater

6. To  drain  water  from  the  internal  tank  properly,  you  need  to  use  the
drain  hole  (only  for  RS2/MS2  line)  (it  is  necessary  to  unscrew  a  plug,
covering the drain hole), water can also be drained through a composite
relief valve (Fig. 14) (unscrew the composite relief valve drain knob screw
and set the drain knob to the upper position, at that hot water tap must
be open, and cold water supply valve must be closed).

IMPORTANT!

If these actions had no positive result or the thermal switch turns
off repeatedly during a short period of time, then you should de-
energize the water heater, cut off water supply and contact your
local Timberk Authorized Service Center for a consult or repair of
the appliance.

IMPORTANT!

Never drain water if its temperature is over 50°C since it may result in
burns.

1. Temperature adjustment device is broken.

2. Temperature limiter was actuated or was

not switched on.

3. Temperature limiter is broken.

1. Water feed is cut off.

2. Water pressure is too low.

3. Water supply exhaust valve is closed.

Water temperature control system is

damaged.

Seal at the point of pipe connection is

broken.

Breaking of the internal tank (corrosion)Seal

at the point of the heating element

connection is broken.

1. Temperature adjustment device is broken.

2. Insufficient time for heating.

3. Heating element is broken.

Contact a repairer, TIMBERK service center.

Switch on the temperature switch following

instructions on its activation. (page 15)

Contact a repairer, TIMBERK service center.

1. Wait until water supply is restored.

2. Switch on the water heater again, when

normal water pressure restores.

Contact a repairer, TIMBERK service center.

Replace the joint seal.

Contact a repairer, TIMBERK service center.

1. Contact a repairer, TIMBERK service center.

2. Wait until water is heated.

3. Contact a repairer, TIMBERK service center.

Heating indicator light

doesn't light up, water is

not heated

Water doesn't flow from the

hot water discharge cock

Water temperature is too

high

Water leakage

Water flows from the

appliance's case

Heating indicator light

lights up but water is not

heated

FAILURE

POSSIBLE CAUSES

TROUBLESHOOTING METHOD
