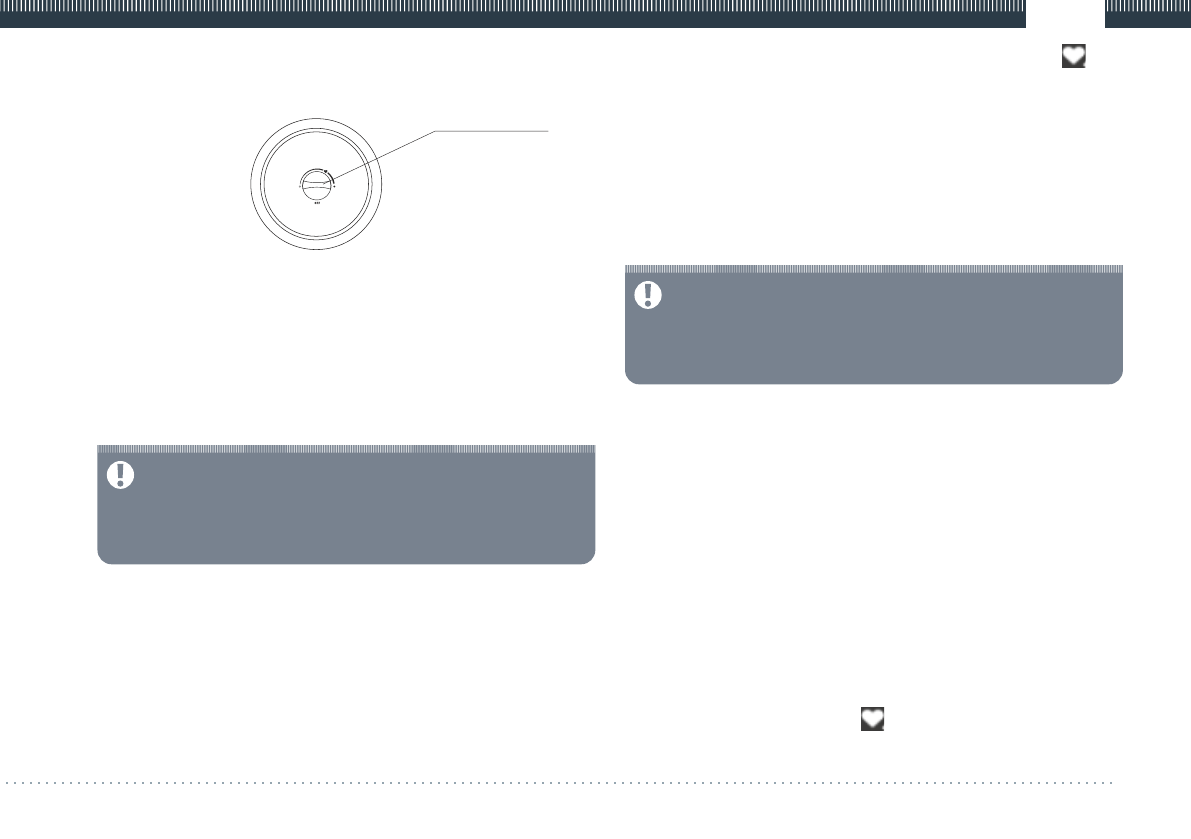

Control panel for the following model
SWH MS2 10H

Thermostat handle

Fig

.

1

5

8.

WATER HEATER OPERATION

SWH RS1, SWH RS2, SWH MS2 series

1. At first, open one of the discharge valves on the outlet of the water
heater, then open the inlet valve. The electric water heater will start
filling with water. When water flows from the outlet valve freely, it means
the water heater is fully filled with water and you can close the discharge
tap.

Warning: During normal operation the inlet valve must be set  open .

2. Plug the power cord into the outlet, an indicator light will light up.

IMPORTANT!

Power outlet must be designed for rated current not less than 10A,
copper  stranded  power  cord  not  less  than  3  x  1.5  mm2  in  cross
section (for copper).
Power plug of the appliance represents a single unit with GFCI.

5. If you choose position of thermostat handle like  optimum  or           ,
it means you choose the most comfortable water temperature +58°C
(±2°C).

S

WH RS7 series

1. At first, open one of the discharge valves on the outlet of the water
heater, then open the inlet valve. The electric water heater will start
filling with water. When water flows from the outlet valve freely, it means
the water heater is fully filled with water and you can close the discharge
tap.

Warning: During normal operation the inlet valve must be set  open .

2. Plug the power cord into the outlet, an indicator light will light up.

3. The appliance can automatically control water temperature. When
water temperature in the water heater reaches the temperature, set by
the user, the heating is automatically switched off, and water
temperature will be maintained due to the heat insulation layer; when
water temperature drops to a certain level, heating is automatically
switched off, in such a way continuous hot water supply is provided.
When the water heater automatically switches off, the indicator light
goes out.
4. If you will turn the thermostat handle clockwise, you ll increase the
temperature of heating. Maximum temperature inside inner tank is
+75

°

C approx. If you want to reduce the temperature of water, please,

turn the handle anticlockwise.

IMPORTANT!

Power outlet must be designed for rated current not less than 10A,
copper  stranded  power  cord  not  less  than  3  x  1.5  mm2  in  cross
section (for copper).
Power plug of the appliance represents a single unit with GFCI.

Description of control panel operation

3. Using the switch keys, you can select one of the appliance power modes.
The upper key corresponds to the "NORMAL" mode (1200W, medium power),
lower key - "ENERGY SAVE" mode (800W, low power), two keys pressed
together - "EXPRESS HEAT" mode (2000W, high power).
4. In addition, each switch key has an indicator lamp. You can easily see
whether the appliance power modes are activated at a particular moment. If
a key lamp glows, this means that the water heater is switched to a power
mode.
5. Remember that a lower power mode of the working appliance allows it to
consume lesser electricity, but on the other hand a lower power mode results
in slower water heating. Select the desired power mode according to your
individual preferences of water heating speed and electricity consumption.
6. Turning the thermostat knob clockwise, you increase the desired
temperature of water heating. The maximum value approximately
corresponds to +75°C (desired water temperature in the internal tank of the
water heater). If you want to decrease the temperature of water heating, turn
the knob counterclockwise.
7. Setting the thermostat knob to «          » position, you select the "Optimum"
mode, which corresponds to the most comfortable temperature of water
heating in the tank (+58°C (±2°C)) and to the most effective mode of
electricity consumption.
