Possibilities for insertion

Kitchen unit with door

Proper arrangements must be taken

in designing the forniture unit, in order to
avoid any contact with the bottom of the
hob which can be heated when it is
operated. The recommended solution is
shown in Fig. 7. The panel fitted under
the hob should be easily removable to
allow an easy access if a technical assis-
tance intervention is needed.

Kitchen unit with oven

The hob recess dimensions must

comply the indication given in Figs. 8
and 9 and must be provided with
brackets to allow a continuous supply of
air. The hob's electric connection and
the oven's one must be carried out
separately, both for safety reasons and
to allow the oven to be easily taken off
the unit.

a) Removable panel
b)  Space for connections

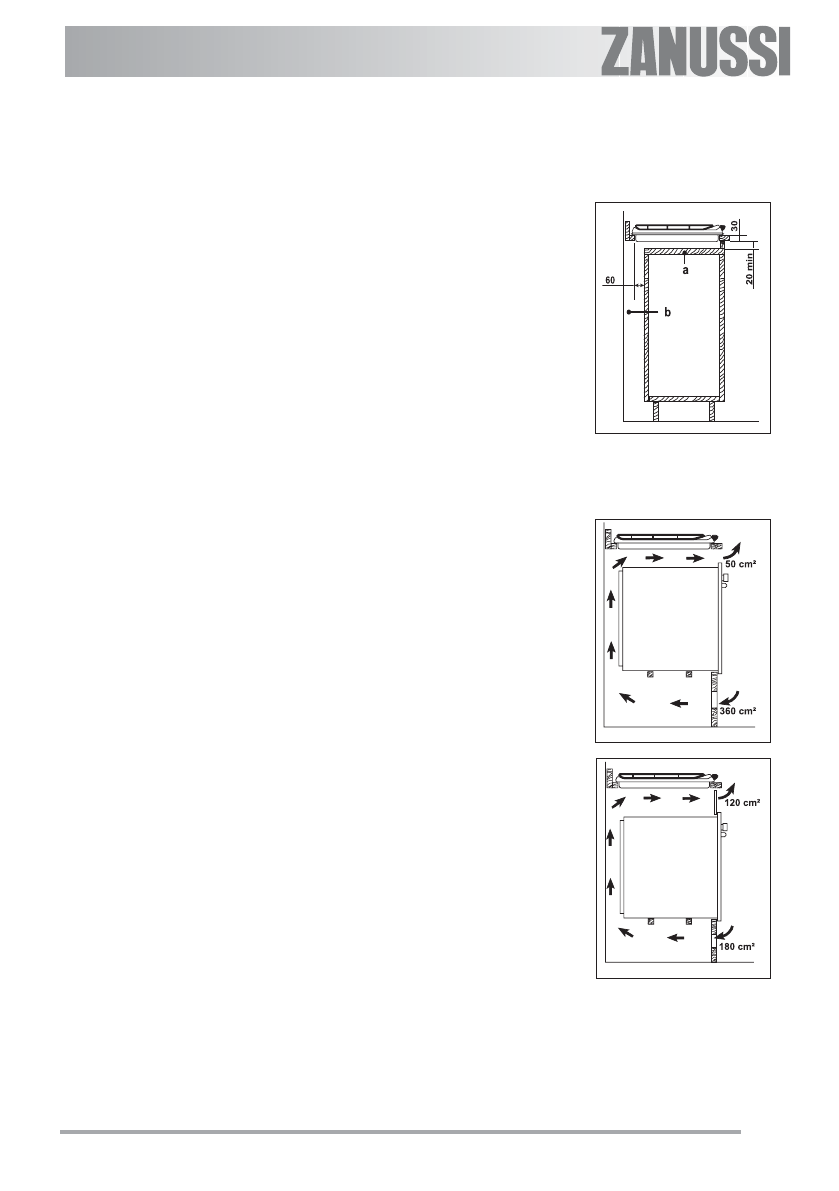

Fig. 7

Fig. 8

Fig. 9
