 17

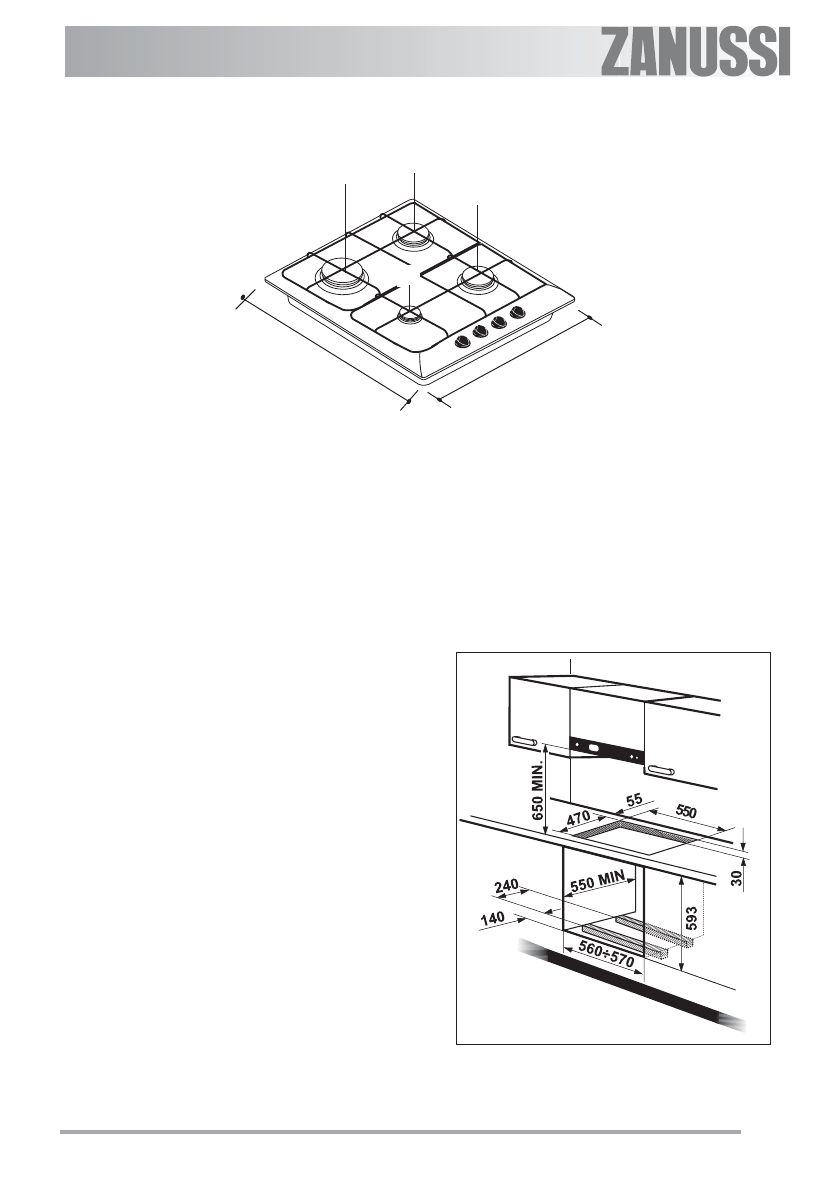

Building In

This hob can be inserted in a built-in

kitchen unit whose depth is between
550 and 600 mm. The hobs dimensions
are shown in Fig. 4.

The edge of the cut out must have a

minimum distance from the rear wall of
55 mm.

If there are side walls, or sides of the

furniture unit near the hob, the cut out
edges must have a minimum distance of
100 mm.

Hanging forniture units or hoods

must be placed at 650 mm. minimum
from the hob.

Fitting the hob to the worktop

The hobs can be installed in a

kitchen unit with an opening for insertion
whose dimensions are shown in Fig. 5.
To install the hob, proceed as follows:
1) Remove the pan supports, the

burners caps and crowns and turn
the hob upside down, taking care
the ignition candles are not
damaged in this operation.

A

= Auxiliary burner

SR

= Semi-rapid burner

R

= Rapid burner

Fig. 5

Dimensions are given in millimeters

SR

SR

A

R

500

580

Fig. 4
