GB





  

 

   







  



 









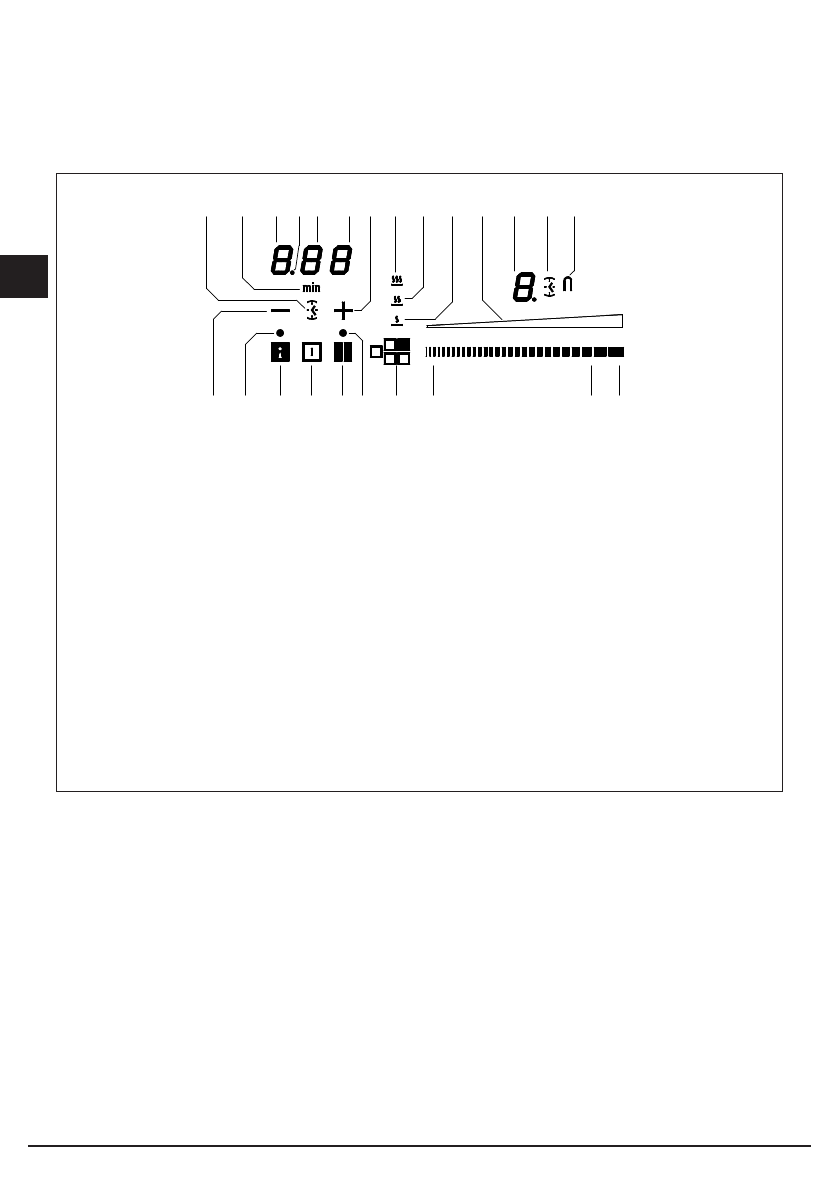

1 ON/OFF
2   + TIMER
3  - Timer
4  Key on LED
5  Key on button
6  Pause on button
7  Pause and Recall involuntary switch-

off LED

8  Heating area and special function

activation indicator

9  Minimum level activation cursor area
10  Maximum level activation cursor area
11  Power Booster (P) activation cursor

area

12  Extension function on icon

13  Timer for cooking area activation

icon

14  Cooking area level display
15  Cooking level illuminated bar
16  Melt function symbol
17  Heating function symbol
18  Simmering function symbol
19  Timer (minutes/seconds) display
20  Timer (minutes/seconds) display
21  Separator dot (hours/minutes)
22  Timer display (hours/minutes)
23  Icon indicating minutes
24  Independent timer icon

Fig. 3

Residual heat indicator

this tells the user that the glass is at a
dangerously high heat in case of contract
with the whole area over the cooking zone.
The temperature is determined using a
mathematical model and any residual heat
is indicated with an “H” by the corresponding
seven-segment display.
Heating and cooling are calculated in
relation to:

- the power level selected (from “0“ to “9“);
- the relay activation period.

After switching off the cooking zone, the
corresponding display shows an “H” until

the temperature in the zone falls below the
critical level (

≤

 60°C) in compliance with the

mathematical model.

Protection in the event of
accidental switching on.

- If the electronic control sense continuous

activation of a key for about 10 sec. it
switches off automatically. The control
gives off an acoustic error signal for 10
seconds, warning the user of the presence
of an object on the sensors. The displays
show the permanent error code, which
