FHMA 604 3G DC / FHMA 755 4G DC/DCL / FHMA 905 4G DCL / FHSM 604 3G DC

FHSM 604 4G / FHSM 755 4G DC / FHSM 905 4G DCL

– 8 –

EN

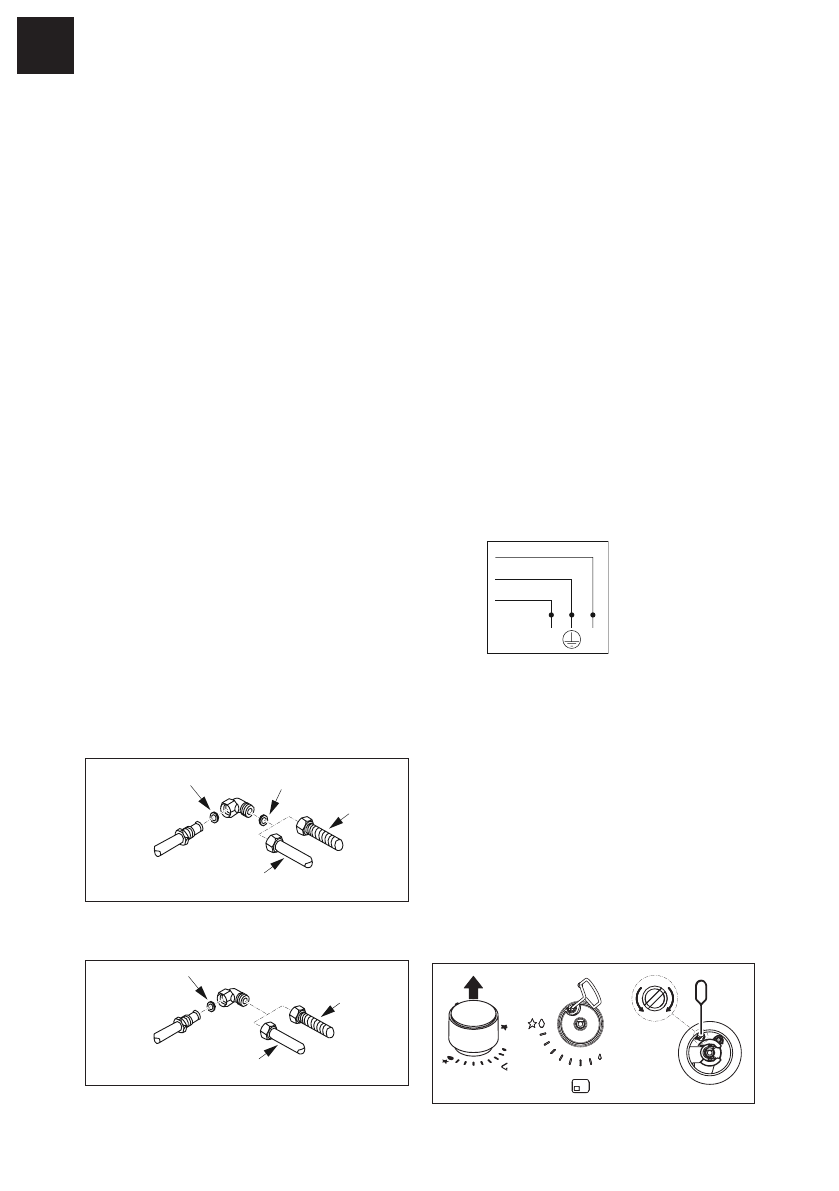

Connection to gas supply

X

Connect the appliance to the gas supply in

compliance with the current regulations,

only after making sure it is arranged for the

type of gas to be used. Otherwise, carry out

the operations described in the paragraph

„Replacing injectors“.

Z

For liquid gas use pressure regulators

complying with the current regulations.

Connection to the gas supply can be made

in two ways:

A.

Connect the gas hob using a 12 mm diameter

rigid copper pipe (3). To ensure a good seal, use

the elastomer gasket supplied as an accessory (1).

B.

 Connect the hob using a continuous-surface

flexible steel tube (2). Also in this case, to

ensure a good seal use the gasket supplied as

an accessory (1). The maximum length of the

hose is 2 linear metres.

Important:

 if a stainless steel hose is used,

it must be installed so as not to touch

any mobile part of the furniture. It must

pass through an area where there are no

obstructions and where it is possible to inspect

it on all its length.

X

After connection to the gas supply light up

the burners and turn the knobs from max

position to minimum position to check

flame stability.

X

After carrying out the connection use soapy

water to check for any leaks.

1

1

2

3

For United Kingdom, Northern Ireland and

Republic of Ireland.

1

2

3

Electrical connection

The FRANKE cooking hob comes with a 3-core

power cable with free terminals.

X

Ensure the following:

– The characteristics of your household

electrical power supply (voltage, maximum

output and current) are compatible with

those of your FRANKE hob.

– The plug and the socket can be easily

reached and are positioned so that no

live part is accessible when inserting or

removing the plug.

– A 3 x 0.75 mm2 H05RR-F type cable

for completely gas hobs is used when

replacing the power cable.

– The terminals of two appliances are not

connected to the same plug.

– The polarities of the free terminals

(Blue = Neutral = (1) /Yellow and Green

= Earth =(2) / Brown = Live = (3)) are

respected.

1

2

3

L

N

Adjustment to different types of gas

WARNING:

This operation must be performed

by a qualified technician.

Minimum flame adjustment

X

Remove the knob.

X

Insert the screwdriver between the

gasket and the cover until it reaches the

adjustment screw.

X

Adjust the minimum flame by turning the

screw clockwise to decrease the flame

and anticlockwise to increase it.

The screwdriver for adjustment is supplied

with the accessories.

+

-
