− 16 (GB) −

3

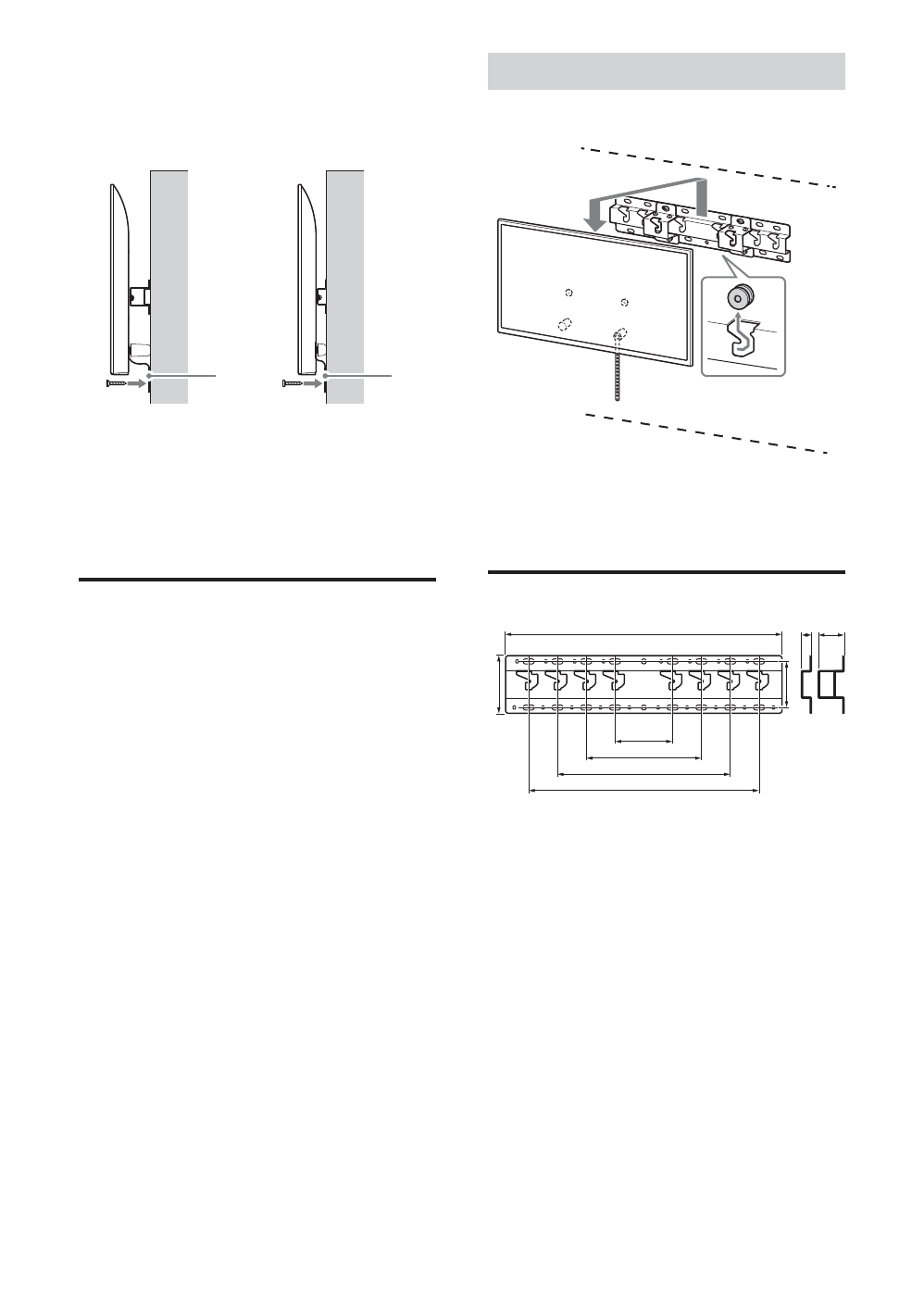

Preventing the bottom of the TV
from shifting.



Take up the slack of Belt



 and attach it

to the wall tightly.

2-a

2-b







Use a 5 mm diameter screw or
equivalent (not supplied).

Note



Try to pull the bottom of the TV towards yourself
slightly, to make sure that it does not move forward.
If there is any movement, it is not fixed correctly, and
the Belt



 should be secured firmly again.

Confirming the completion of

the installation

Check the following points.



The Pulleys



 are firmly hung onto the Base

or Base Adaptor.



The cord and the cable are not twisted or
pinched.



The Belt



 is tight with no slack.

WARNING



Improper placement of the AC power cord (mains lead),
etc., may cause fire or electric shock through a short
circuit. Be sure to confirm the completion of the
installation for safety.

Other information

When removing the TV, reverse the previous
installation procedure.

WARNING



Be sure that two or more persons (three or more persons
for 75 inches and above TV set) hold the TV when
removing it.

Specifications

f

c

d

b

a

g

e

h2

h1

Dimensions: (Approx.) [mm]

a  : 400
b  : 300
c  : 200
d  : 100
e  : 80
f  : 480
g  : 100

h1  :  20 (case 2-b)
h2  :  60 (case 2-a)

Weight (base only): (Approx.) [kg]

0.8

Design and specifications are subject to change without
notice.
