− 11 (GB) −

GB

Preparing for the installation

of the TV

Make sure to attach the Table-Top Stand
before installing the TV to the wall by referring
to the Setup Guide (except KD-49X75xxH /
49X74xxH / 43X75xxH / 43X74xxH).

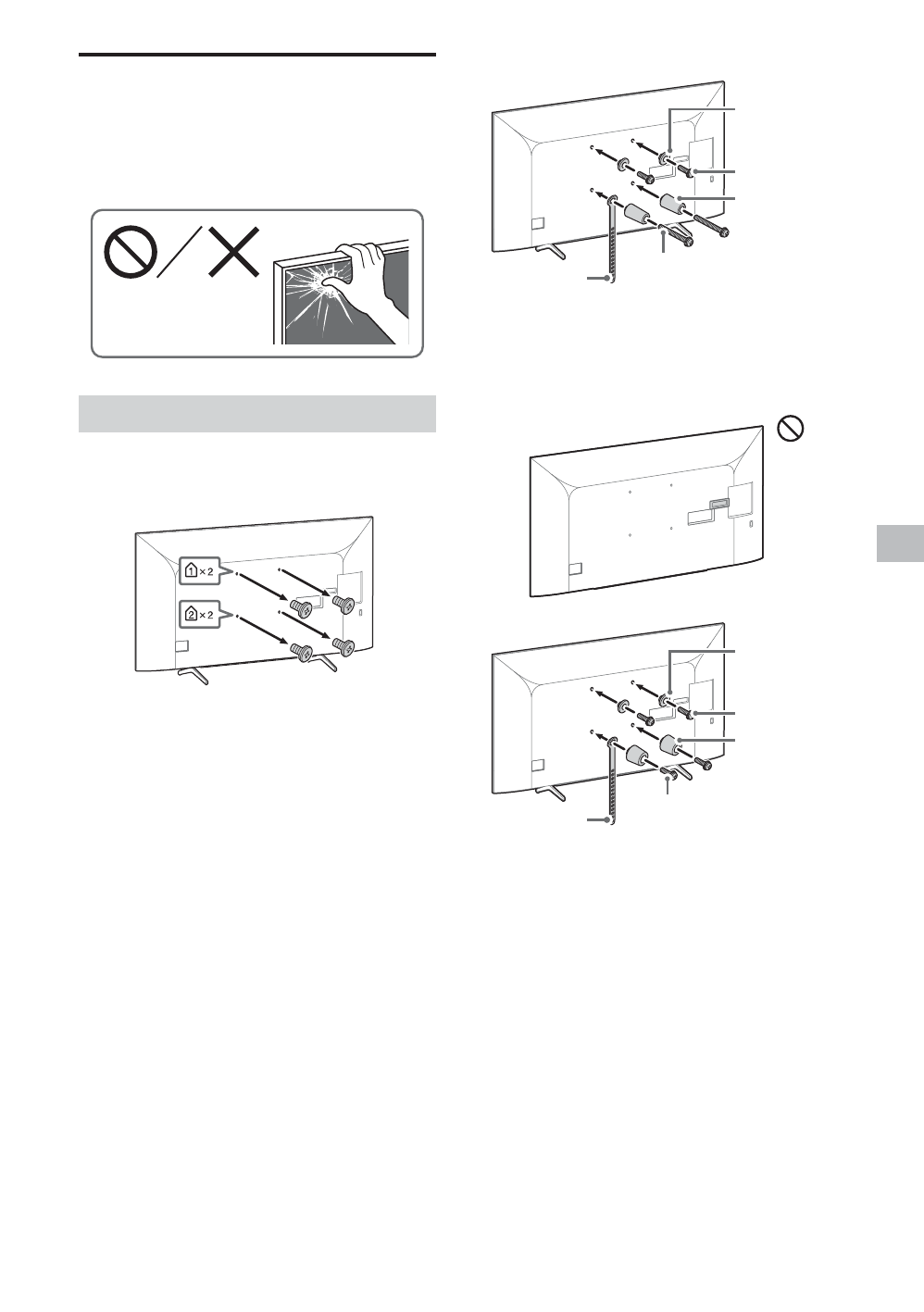

KD-65X75xxH

1

Remove the screws from the
rear of the TV.

Note



Be sure to store the removed screws and unused
parts in a safe place, keeping them away from
children.

2

Attach the Attachment parts for
Wall-Mount Bracket. Check the
Attachment parts by referring to
“Supplied with SU-WL450” in
“Checking the parts” on page
6.

Note



Firmly secure the Attachment parts using screws.



When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.

Standard mounting (2-a)

Belt



Spacer
(60 mm)



Screw
(+PSW 6 x 50)



Pulley



Screw
(+PSW 6 x 20)



Slim mounting (2-b)

Note



You cannot use some of the terminals on the rear of
the TV when using this mounting style.

Belt



Spacer
(20 mm)



Screw
(+PSW 6 x 20)



Pulley



Screw
(+PSW 6 x 20)



3

Connect the necessary cable(s)
to the TV.

Make sure to connect the cables before
installing the TV on the wall. You will be
unable to connect the cables when the TV
is installed.
Refer to the Reference Guide supplied with
your TV.

Note



Subcontract the cable routing in the wall to a licensed
contractor.



Bundle the connecting cables to prevent stepping on
them before wall mounting.
