− 12 (GB) −

4

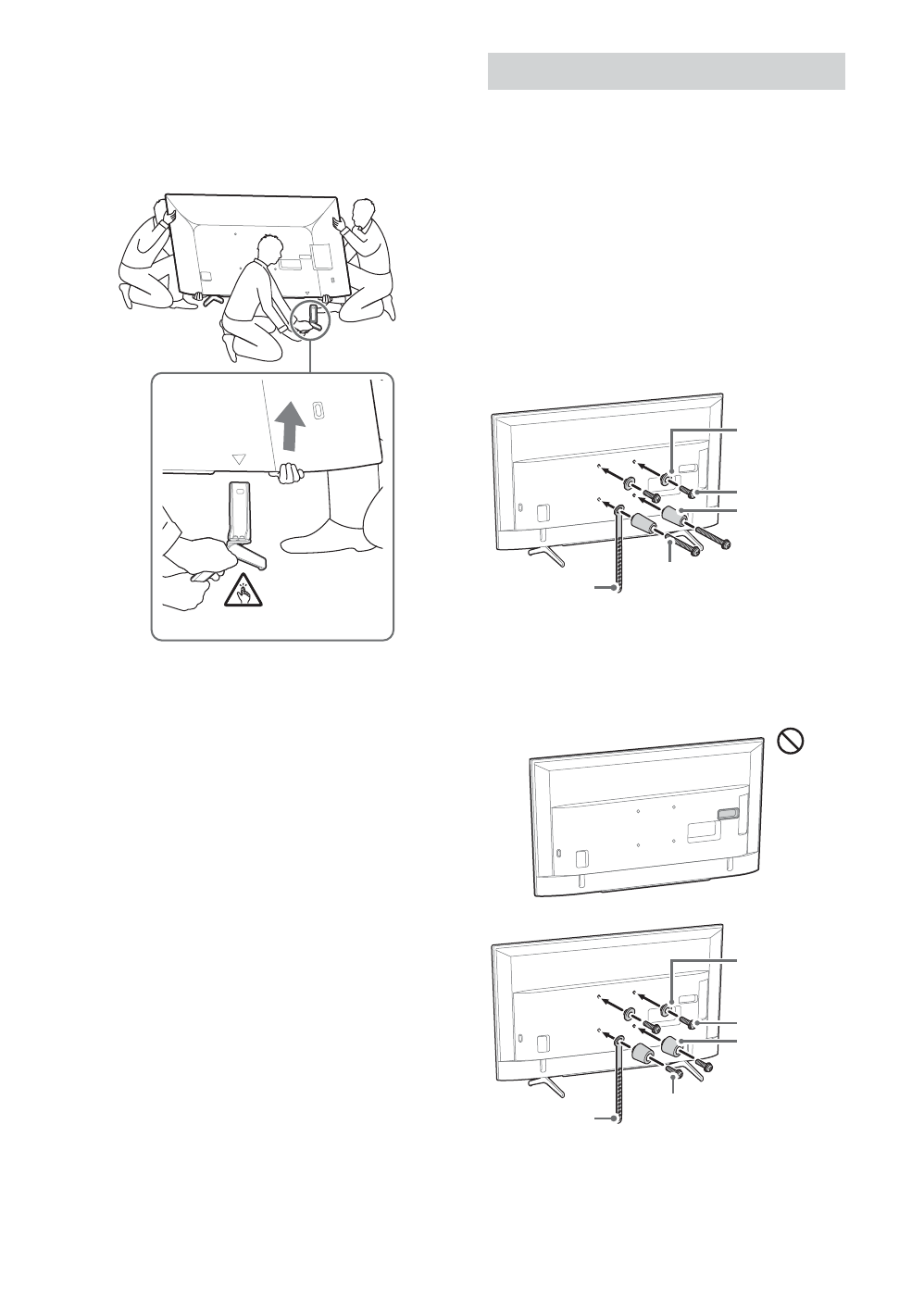

Detach the Table-Top Stand
from the TV.



Remove one side of the Table-Top Stand
at a time. Firmly hold the Table-Top
Stand securely with both hands while
the other people lift up the TV.



Repeat the previous step and remove
the other side of the Table-Top Stand.

Note



Three or more people are required to detach the
Table-Top Stand.



Be careful not to use excessive force while detaching
the Table-Top Stand from the TV as it may cause the
TV set to fall resulting in personal injury or physical
damage to the TV.



Take care when handling the Table-Top Stand to
prevent damage to the TV.



Be careful when lifting the TV as the Table-Top Stand
is detached, the Table-Top Stand may topple over
and cause personal injury.



Take care when removing the Table-Top Stand from
the TV to prevent it from falling over and damaging
the surface that the TV is sitting on.

KD-55X75xxH / 55X74xxH

1

Attach the Attachment parts for
Wall-Mount Bracket. Check the
Attachment parts by referring to
“Supplied with SU-WL450” in
“Checking the parts” on page
6.

Note



Firmly secure the Attachment parts using screws.



When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.

Standard mounting (2-a)

Spacer
(60 mm)



Screw
(+PSW 6 x 50)



Pulley



Screw
(+PSW 6 x 20)



Belt



Slim mounting (2-b)

Note



You cannot use some of the terminals on the rear of
the TV when using this mounting style.

Spacer
(20 mm)



Screw
(+PSW 6 x 20)



Pulley



Screw
(+PSW 6 x 20)



Belt


