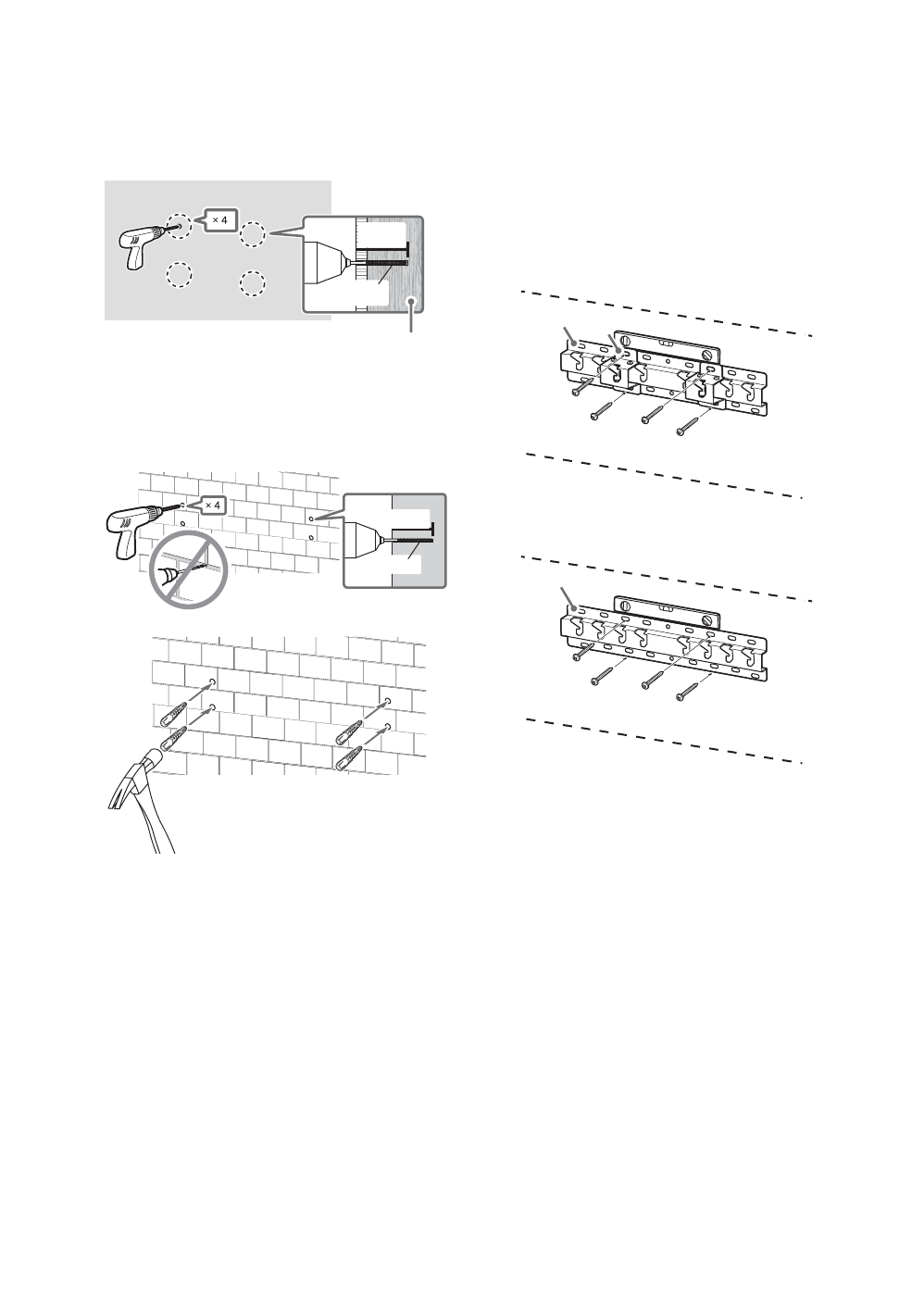

Drill pilot holes on the marks.

Make sure the location on the wall to drill
the holes are strong enough to support a
weight of at least four times that of the TV.

Dry wall with studs

Stud or Reinforcement

75 mm

5.5 mm

Note



Pilot holes must be drilled to a depth of 75 mm, using
a 5.5 mm diameter drill bit.

Solid Concrete or Concrete Block

10 mm

75 mm

6

Install the Base (20)



 on the

wall using suitable screws (not
supplied).

Note



Use four or more screws of 8 mm diameter or
equivalent (not supplied).



Use a level to check whether the Base (20)



 is level.



Fit four screws to the holes of Base Adaptor



with Base (20)



 (2-a only).

2-a





2-b


