English-41

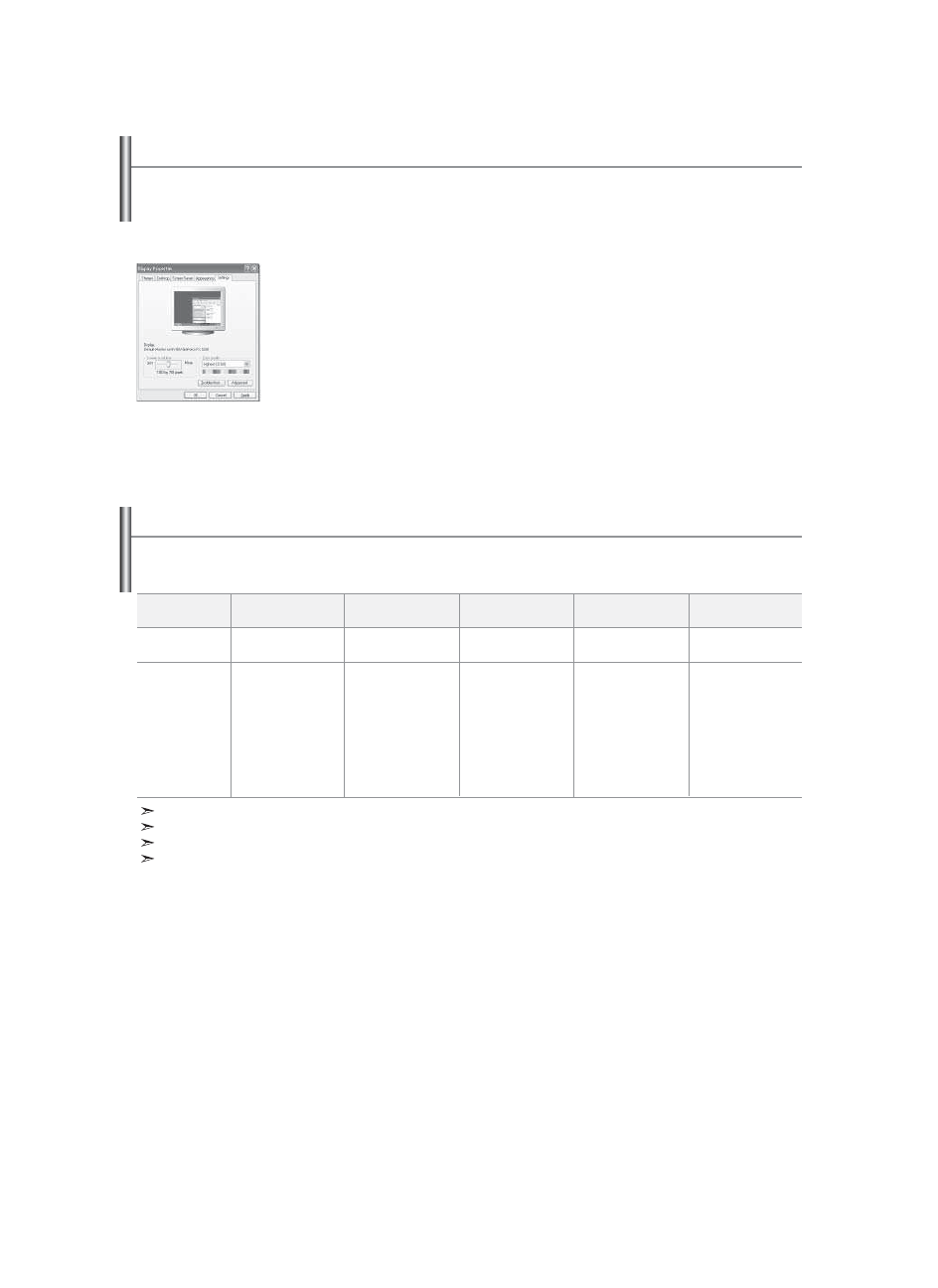

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be differ-
ent depending upon your particular version of Windows and your particular video card. Even if your actual screens
look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manu-
facturer or Samsung Dealer.)

1.

First, click on “Control Panel” on the Windows start menu.

2.

When the control panel window appears, click on “Appearance and Themes” and a display

dialog-box will appear.

3.

When the control panel window appears, click on “Display” and a display

dialog-box will appear.

4.

Navigate to the “Settings” tab on the display dialog-box.

The correct size setting (resolution): Optimum- 1360 X 768

If a vertical-frequency option exists on your display settings dialog box, the correct value is

“60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.

Setting up Your PC Software (Based on Windows XP)

  The interface mode is not supported.
  The set might operate abnormally if a non-standard video format is selected.
  HDMI/DVI does not support PC function.
  Separate and Composite modes are supported. SOG is not supported.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution.
The resolutions in the table are recommended. (All resolutions between the supported limits are supported)

Mode

IBM

VESA

Resolution

640 x 480
720 x 400

640 x 480
640 x 480
800 x 600
800 x 600
800 x 600

1024 x 768
1024 x 768
1024 x 768
1360 x 768

Horizontal

Frequency (kHz)

31.469
31.469

37.861
37.500
37.879
48.077
46.875
48.364
56.476
60.023
47.712

Vertical

Frequency (Hz)

59.940
70.087

72.809
75.000
60.317
72.188
75.000
60.000
70.069
75.029
60.015

Pixel Clock

Frequency (MHz)

25.175
28.322

31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
85.800

Sync Polarity

(H/V)

- / -

- / +

- / -
- / -

+ /+
+ /+
+ /+

- / -
- / -

+ /+
+ /+
