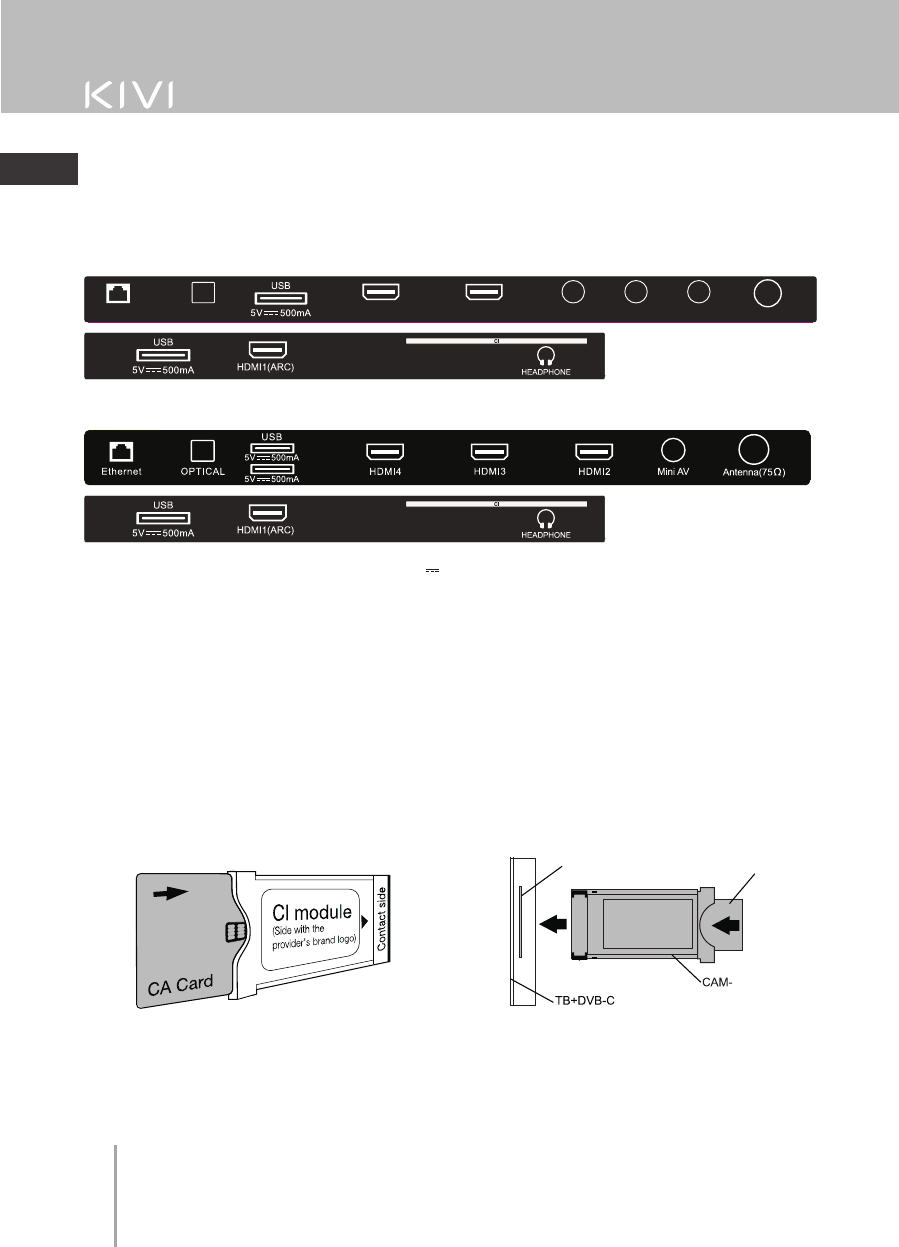

Connection ports

L/R

VIDEO

LAN

HEADPHONE

OPTICAL OUT

Composite audio input

Composite video - input

Ethernet - input

Headphone out (3.5mm)

Optical output

DC IN

USB

HDMI

Antenna

CI

Mini AV IN

Input for external power supply 12V    3A

Input for USB devices (500mA)

HDMI type input

Antenna connection port

CAM module connection port

Composite audio / video input

UHD models

E

th

e

rn

e

t

O P T I

C

A

L

HDM

I 3

HDM

I 2

V

I

D

E O

L

R

Antenna(75

Ω

)

Connecting a CI Conditional Access Card

Note:

1. Some adapters and devices may work improperly, as they transmit the signal in non-standard ways.
2. All external devices should be connected when the TV is off.
3. The maximum load on the USB port should not exceed 0.5A.

CAM - a CI Card Module can be purchased from your local digital cable service provider and can be
provided with information on using the CI Card. If you have any difficulties when working with the CI card,
please contact the service provider.

Due to the constant improvement of the products, the names of individual menu modes, the designation
of some connectors on the connector panel and the place of their application, as well as the performance
of certain ergonomic TV control functions, depending on the software version, may slightly differ from
those described and depicted in this manual. which does not significantly affect the operation of the TV.

module

authorization card

slot

Connecting devices

This TV is compatible with the majority of video playback devices. You may connect audio, video and other
devices to it according to this manual and manuals of other devices.
The TV can be connected to the following devices: Blueray, Android TV Box, Game console, Audio system,
etc.

HD, FHD models

13

EN
