AUTO FOCUS
In the AUTO FOCUS option, you can specify the Focus
method to AF, MF, or ONEAF.
MOTION DET
In the MOTION DET option, you can set the Motion
Detection function, motion detection sensitivity, and the
motion detection area. If you set the Motion Detection
function, you can detect an intruder's movement and check it
through the monitor and the ALARM OUT terminal.
Press the
ENTER
button.

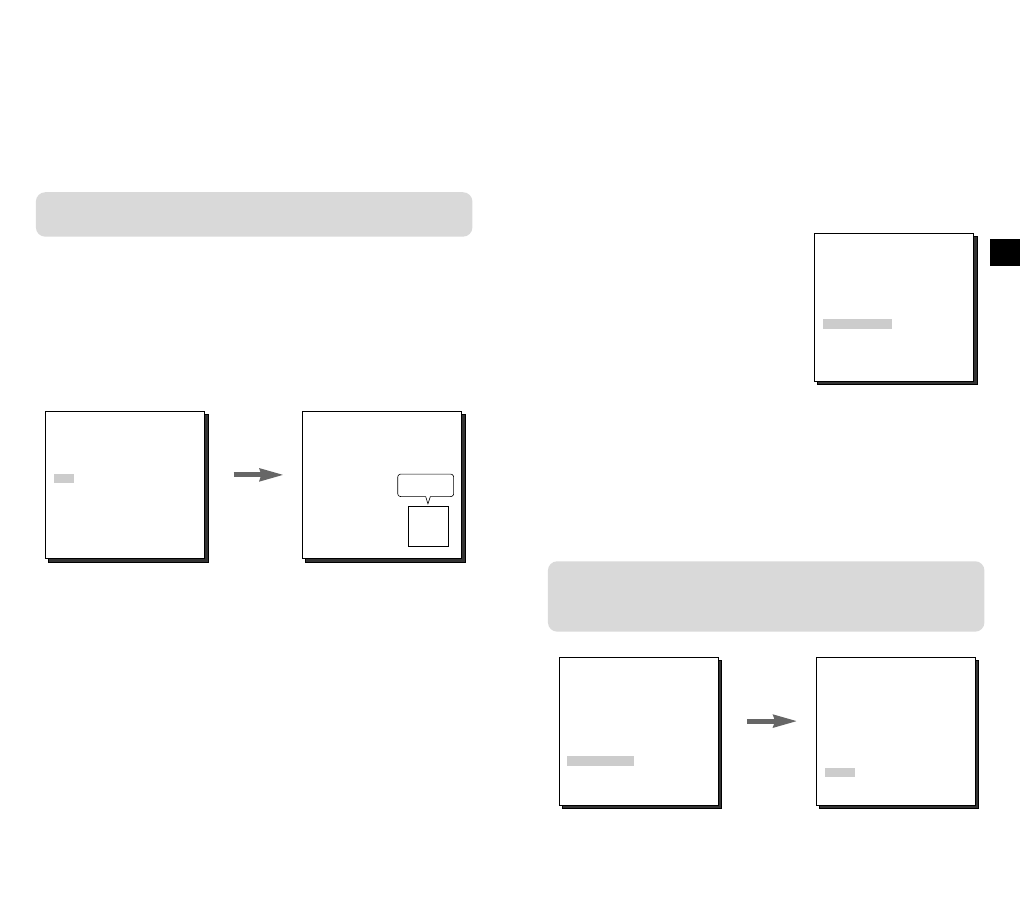

(SET UP)
CAMERA ID
OFF
IRIS
ALC...
SHUTTER
OFF
AGC
LOW
WHITE BAL
ATW
SPECIAL
...
AUTO FOCUS
ONEAF
MOTION DET
ON...
PRESET
...
COLOR/BW
COLOR
EXIT
QUIT
(MOTION DET)
AREA PRESET...
SENSITIVITY MEDIUM
RET
If you set ALARM which is located under COLOR/BW
AUTO menu to ON while MOTION DET remains ON, the
ALARM output port can not send any motion.
AF :
Focuses automatically by continuously monitoring the
screen in AUTO FOCUS mode. It does not process the
FOCUS button input because it focuses automatically
during ZOOM.
MF :
You can manually adjust
the focus.
ONEAF :
Focuses about 5
seconds only when ZOOM is
moved Wide to Tele. It is same
as MF mode while in STOP
mode, and same as AF mode
after ZOOM Tele.
☞
☞
☞
(SET UP)
CAMERA ID
OFF
IRIS
ALC...
SHUTTER
OFF
AGC
LOW
WHITE BAL
ATW
SPECIAL
...
AUTO FOCUS
AF
MOTION DET
OFF
PRESET
...
COLOR/BW
COLOR
EXIT
QUIT
Press the
ENTER
button.
(SPECIAL)
EANGUAGE
ENGLISH
V-SYNC
LINE...
CTRL TYPE
A
RS-485
...
PIP
ON
MIRROR
OFF
D-ZOOM
OFF
POSI/NEGA
+
ZOOM SPEED
3
DETAIL (0) ----I--
RET
Caution :
A communication error may occur if you connect
more than one camera set with an identical address.
PIP
CTRL TYPE :
You can select the A, B, C, or D mode
depending on the input of the wired remote control terminal.
(See page 7.)
RS-485 :
It sets up ADDRESS, PROTOCOL, and BAUD
RATE of RS-485 communication.
(BAUD RATE: 2400bps, 4800bps, 9600bps, 19200bps, 38400bps)
☞
PIP :
This is the Picture in Picture feature. It will show a
screen reduced by 1/16 of the main screen only when
operating the Digital Zoom. If you set the PIP option to ON
and press the ENTER button, you can use the UP, DOWN,
LEFT, and RIGHT buttons to set the PIP position.
* The PIP feature does not work in a low speed shutter mode.
The MIRROR feature does not work on the PIP window.
☞
MIRROR :
Horizontally flips the video output signal.
D-ZOOM :
Sets the magnification of the Digital Zoom.
The magnification level can be set to up to 10x.
POSI/ NEGA :
Outputs the video output signal normally or
inversely.
ZOOM SPEED :
In the ZOOM SPEED option, use the
LEFT and RIGHT buttons to set the speed as follows:
1 : Takes about 17 seconds from 1 x to 22 x magnification (slowest speed).
2 : Takes about 10 seconds from 1 x to 22 x magnification (slow speed).
3 : Takes about 6 seconds from 1 x to 22 x magnification (fast speed).
4 : Takes about 3 seconds from 1 x to 22 x magnification (fastest speed).
☞
☞
☞
☞
DETAIL:
Adjusts the sharpness.
☞
☞
