Janome Memory Craft 350Е - Инструкция по эксплуатации - Страница 49

47

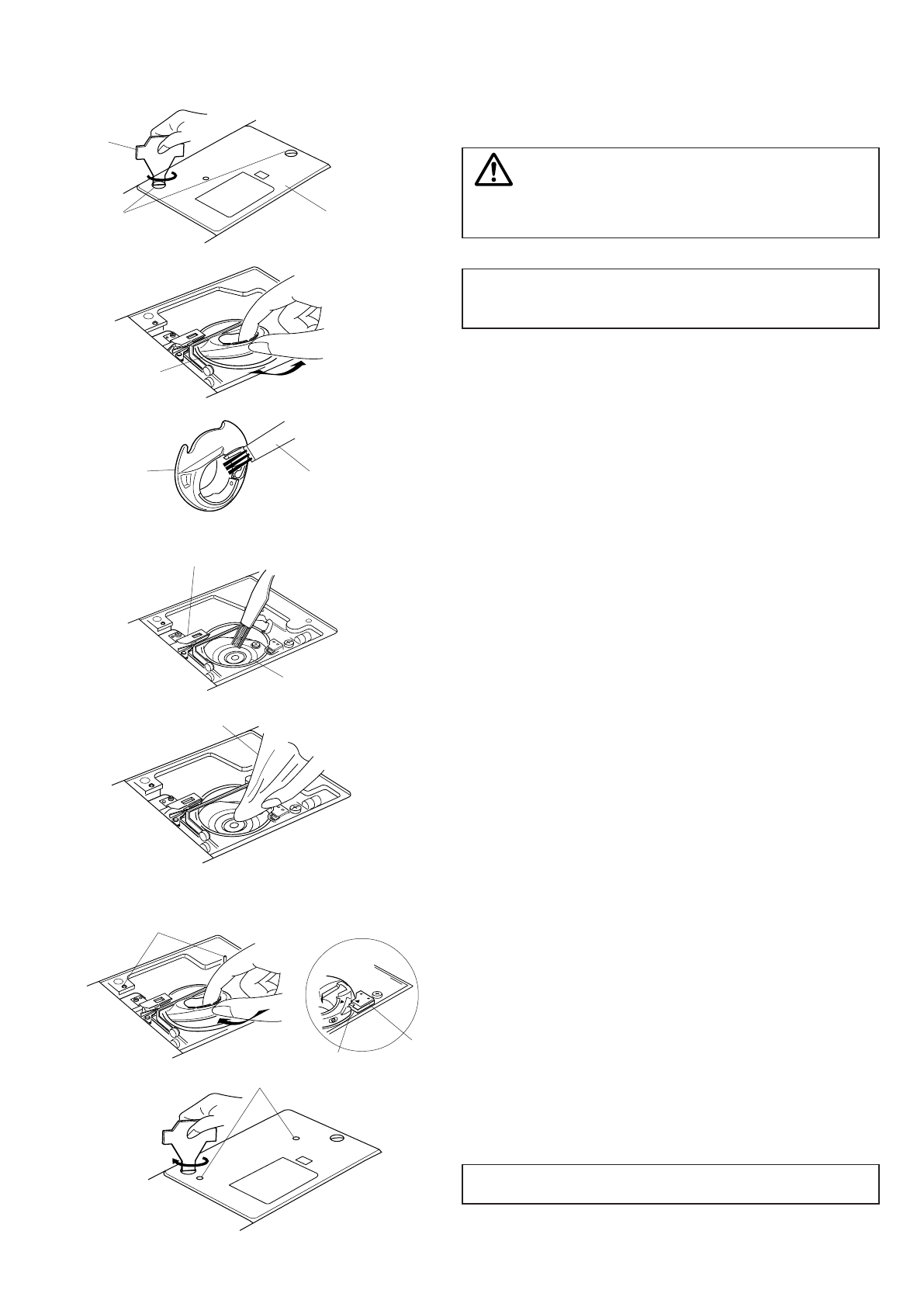

CARE AND MAINTENANCE

Cleaning the Hook Race

WARNING:

Turn the power switch off and unplug the machine

before cleaning.

NOTE:

Do not dismantle the machine in any way other than

what is explained in this section.

Clean the outside of the machine with a soft cloth and

mild soap.

z

Remove the setscrews with the screwdriver

supplied with the machine. Remove the needle

plate.

x

Lift up the bobbin holder and remove it.

q

Screwdriver

w

Setscrews

e

Needle plate

c

Clean the bobbin holder with a lint brush.

r

Bobbin holder

t

Lint brush

v

Clean the Auto thread cutter mechanism and hook

race with the lint brush.

y

Auto thread cutter mechanism

u

Hook race

b

Clean the hook race with a dry cloth.

(You may also use a vacuum cleaner.)

i

Dry cloth

Assemble the hook race

n

Insert the bobbin holder so that the knob fits next to

the stopper in the hook race.

o

Knob

!0

Stopper

m

Reattach the needle plate, aligning the needle plate

guide pins with the guide holes on the needle plate

and tighten the screw.

!1

Needle plate guide pins

NOTE:

After cleaning the machine, make sure the needle and

presser foot are attached.

z

x

c

v

b

n

m

q

w

e

r

r

t

y

i

u

!0

o

!1

!1

47

УХОД ЗА МАШИНОЙ

Чистка шпульного отсека

ВНИМАНИЕ:

Перед началом чистки отключите машину

и вытащите вилку из розетки.

ПРИМЕЧАНИЕ:

Не разбирайте машину иначе, чем описано на этих

страницах.

Внешний корпус машины чистите мягкой салфеткой

и мылом.

Открутите винты прилагаемой к машине отвёрткой.

Снимите игольную пластину.

Поднимите шпуледержатель и вытащите его.

Отвёртка

Винты

Игольная пластина

Прочистите шпуледержатель щёточкой.

Шпуледержатель

Щёточка

Прочистите челночный механизм щёточкой

и механизм автоматической обрезки.

Механизм автоматической обрезки

Челночный механизм

Прочистите челночный механизм мягкой сухой

тряпкой.

Мягкая сухая тряпка

Сборка челночного механизма

Вставьте шпуледержатель так, чтобы кнопка

находилась рядом со стопором челночного

механизма.

Стопор

Кнопка

Установите игольную пластину, вставив две

направительные шпильки в отверстия игольной

пластины. Затяните винт.

Направительные шпильки игольной пластины

ПРИМЕЧАНИЕ:

После чистки вставьте иглу и прижимную лапку.
