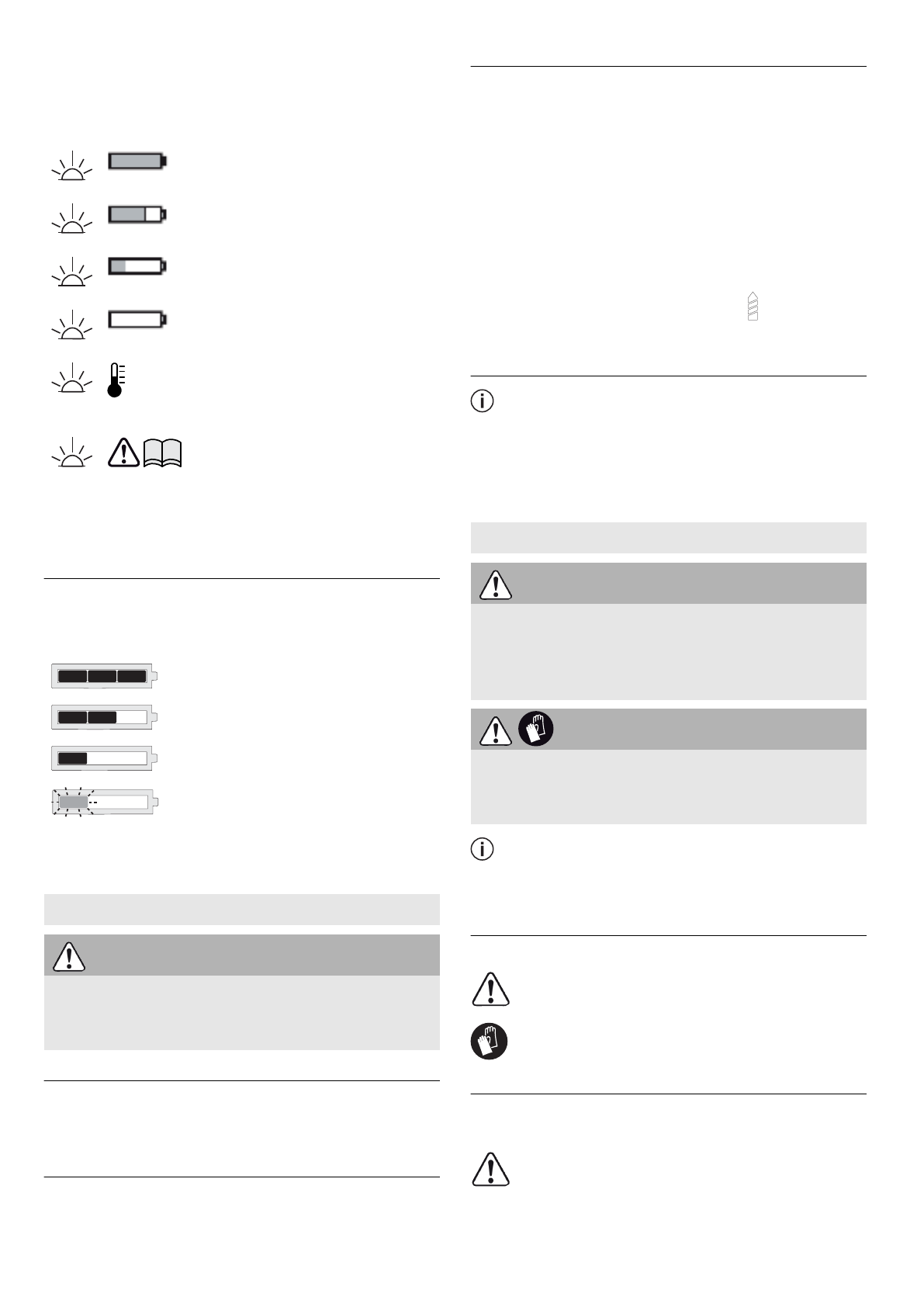

1x ... LED, working area illumination
2x ... capacity indicator, indicates the charg
ing state of the battery pack (not with NiCd
and NiMH battery packs)
LED green – lit continuous
ly:
charged > 60 %
LED green – flashing slow
ly:
charged 30 % – 60 %
LED green – flashing quick
ly:
charged 0 % – 30 %
LED yellow – lit continu
ously:
battery is empty
LED red – lit continuously:
battery temperature is out
side the permitted range.
LED red – flashing:
indi
cates a general fault, e.g.
incomplete contact, short
circuit, battery pack faulty,
etc.
6.3
Capacity indicator
The capacity display
[1-14]
indicates the charge
of the battery pack for approx. 2 seconds after
the button
[1-13]
is pressed:
70–100%
40–70%
15–40%
< 15%
*
*
Recommendation:
Charge the battery pack
before any further use.
7
Settings
CAUTION
Risk of injury
► Only adjust the settings when the power
tool is switched off.
7.1
Changing direction of rotation [1-9]
– Switch to the left = clockwise rotation
– Switch to the right = counterclockwise rota
tion
7.2
Changing gear
You can change gear using the gear
switch
[1-7]
.
7.3
Adjusting the torque [1-8]
Fastening
Select the correct torque setting:
Position 1 = low torque
Position 12 = high torque
An
acoustic signal
sounds when the preset tor
que is reached and the machine then switches
off. You must release and press the ON/OFF
switch
[1-4]
again to start the machine.
Drilling
Mark is aligned with drill symbol = maximum
torque.
7.4
Impact drilling
The machine was designed for impact
drilling into tiles, masonry and stone.
Set the selector switch
[1-6]
to the hammer
symbol. Set the adjusting wheel
[1-8]
to the
drill symbol.
8
Tool holder, attachments
WARNING
Risk of injury
► Remove the battery pack from the power
tool before performing any work on the
power tool.
CAUTION
Risk of injury from hot and sharp tool
► Do not use any blunt or faulty tools.
► Wear protective gloves.
Prior to initial use:
apply multi-purpose
grease to the drill spindle and gearbox
neck.
8.1
CENTROTEC tool chuck [4]
Quick change of tools with CENTROTEC shaft
Only clamp CENTROTEC tools in CEN
TROTEC tool chucks.
Wear gloves when replacing!
8.2
Chuck [5]
For clamping drill bits and bits with max. shaft
di-ameter of 13 mm.
Clamp tool centrally in the chuck.
