17
English

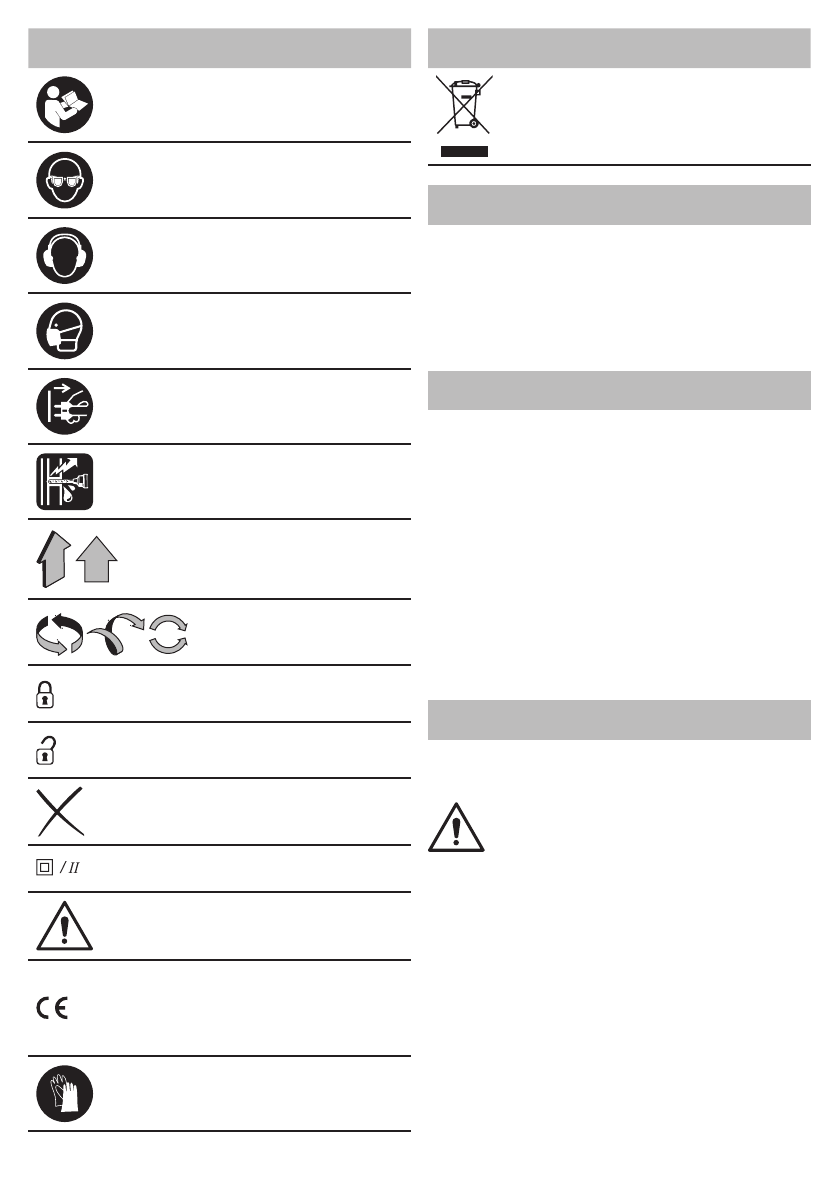

Symbol
Meaning
Read all safety regulations
and instructions�
Wear safety goggles�
Wear ear protectors�
Wear a dust mask�
Disconnect the power tool
from the mains before instal-
lation or adjustment�
Risk of damage to hidden
wiring or household service
lines�
Movement direction�
Rotation direction�
Locked�
Unlocked�
Prohibited�
Double insulation / protec-
tion class�
Attention� Important�
A sign certifying that the
product complies with es-
sential requirements of the
EU directives and harmo-
nized EU standards�
Wear protective gloves�
Symbol
Meaning
Do not dispose of the power
tool in a domestic waste
container�
DWT
power tool designation
Low-speed drill is intended also for miхing powdered
building materials, such as lime, cement, mixes for
plaster, materials not containing the solvents, varnish-
es and similar substances, and also drilling in steel,
wood and ceramics�
The area of the tool application can be expanded due
to use of additional accessories�
1
Power tool
components
Gear rim chuck *
2
Ventilation slots
3
Additional back handle*
4
On / off switch (reverse function)
5
Locking button for on / off switch
6
Auxiliary handle *
7
Wing screw *
8
Drill chuck key *
9
Cap *
10
Stirring paddle *
11
Screw *
* Optional extra
Not all of the accessories illustrated or described
are included as standard delivery.
Installation and regulation
of power tool elements
Before carrying out any works on the power tool it
must be disconnected from the mains.
Do not draw up the fastening elements
too tight to avoid damaging the thread.
Auxiliary handle (see fig. 1)
•
Release additional handle
6
as shown on picture 1�
•
Extract cap
9
and screw additional handle
6
into the
threaded opening�
•
Insert cap
9
into the freed threaded opening�
Additional back handle (see fig. 2)
The additional back handle
3
facilitates performance of
works and improves the control over the tool�
•
Release wing screw
7
(see fig. 2)
•
Place additional back handle
3
in desired position
(additional back handle make have set in four posi-
tion)�
•
Tighten wing screw
7
�
