Noise/Vibration Information

Measured sound values determined according to EN 60745.

GSR 36 V-LI

Typically the A-weighted sound pressure level of the product

is less than 70 dB(A). Uncertainty K = 3 dB.

The noise level when working can exceed 80 dB(A).

Wear hearing protection!

Vibration total values (triax vector sum) determined

according to EN 60745:

Drilling into metal: Vibration emission value a

h

< 2.5 m/s

2

,

Uncertainty K = 1.5 m/s

2

,

Screwdriving: Vibration emission value a

h

< 2.5 m/s

2

,

Uncertainty K = 1.5 m/s

2

.

GSB 36 V-LI

Typically the A-weighted noise levels of the product are:

Sound pressure level 86 dB(A); Sound power level 97 dB(A).

Uncertainty K = 3 dB.

Wear hearing protection!

Vibration total values (triax vector sum) determined

according to EN 60745:

Drilling into metal: Vibration emission value a

h

= 3.0 m/s

2

,

Uncertainty K = 1.5 m/s

2

,

Impact drilling into concrete: Vibration emission value

a

h

= 11.5 m/s

2

, Uncertainty K = 1.5 m/s

2

,

Screwdriving without impact: Vibration emission value

a

h

< 2.5 m/s

2

, Uncertainty K = 1.5 m/s

2

.

GSR 36 V-LI/GSB 36 V-LI

The vibration emission level given in this information sheet

has been measured in accordance with a standardised test

given in EN 60745 and may be used to compare one tool with

another. It may be used for a preliminary assessment of ex-

posure.

The declared vibration emission level represents the main ap-

plications of the tool. However if the tool is used for different

applications, with different accessories or poorly maintained,

the vibration emission may differ. This may significantly in-

crease the exposure level over the total working period.

An estimation of the level of exposure to vibration should also

take into account the times when the tool is switched off or

when it is running but not actually doing the job. This may sig-

nificantly reduce the exposure level over the total working

period.

Identify additional safety measures to protect the operator

from the effects of vibration such as: maintain the tool and the

accessories, keep the hands warm, organisation of work

patterns.

Declaration of Conformity

We declare under our sole responsibility that the product de-

scribed under “Technical Data” is in conformity with the fol-

lowing standards or standardization documents: EN 60745

according to the provisions of the directives 2004/108/EC,

2006/42/EC.
Technical file at:

Robert Bosch GmbH, PT/ESC,

D-70745 Leinfelden-Echterdingen

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

Leinfelden, 25.03.2011

Assembly

Battery Charging

f

Use only the battery chargers listed on the accessories

page.

Only these battery chargers are matched to the lith-

ium ion battery of your power tool.

Note:

The battery is supplied partially charged. To ensure full

capacity of the battery, completely charge the battery in the

battery charger before using your power tool for the first time.
The lithium-ion battery can be charged at any time without re-

ducing its service life. Interrupting the charging procedure

does not damage the battery.
The lithium-ion battery is protected against deep discharging

by the “Electronic Cell Protection (ECP)”. When the battery is

empty, the machine is switched off by means of a protective

circuit: The inserted tool no longer rotates.

Do not continue to press the On/Off

switch after the machine has been au-

tomatically switched off.

The battery can be damaged.

Removing the Battery

The battery

8

 is equipped with two locking levels that should

prevent the battery from falling out when pushing the battery

unlocking button

14

 unintentionally. As long as the battery is

inserted in the power tool, it is held in position by means of a

spring.

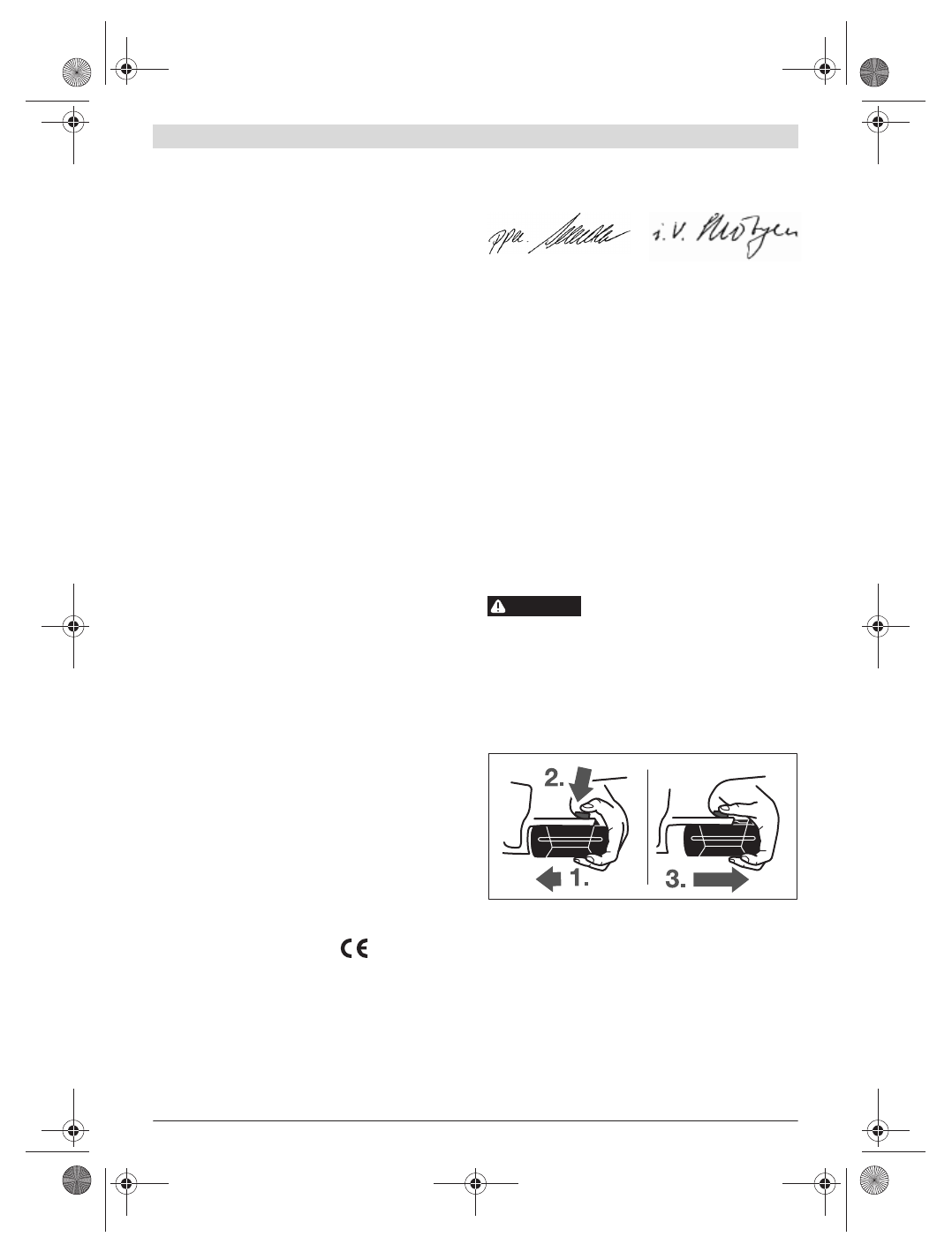

To remove the battery

8

:

– Push the battery against the base of the power tool (1.) and

at the same time press the battery unlocking button

14

 (2.).

– Pull the battery out of the power tool until a red stripe be-

comes visible (3.).

– Press the battery unlocking button

14

 again and pull out

the battery completely.

Battery Charge-control Indication (see figure A)

The three green LEDs of the battery charge-control indicator

12

 indicate the charge condition of the battery

8

. For safety

reasons, it is only possible to check the status of the charge

condition when the machine is at a standstill.

Dr. Egbert Schneider

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification
