lock-off lever. Return tool to a MAKITA service
center for proper repairs BEFORE further usage.

•

NEVER tape down or defeat purpose and function
of lock-off lever.

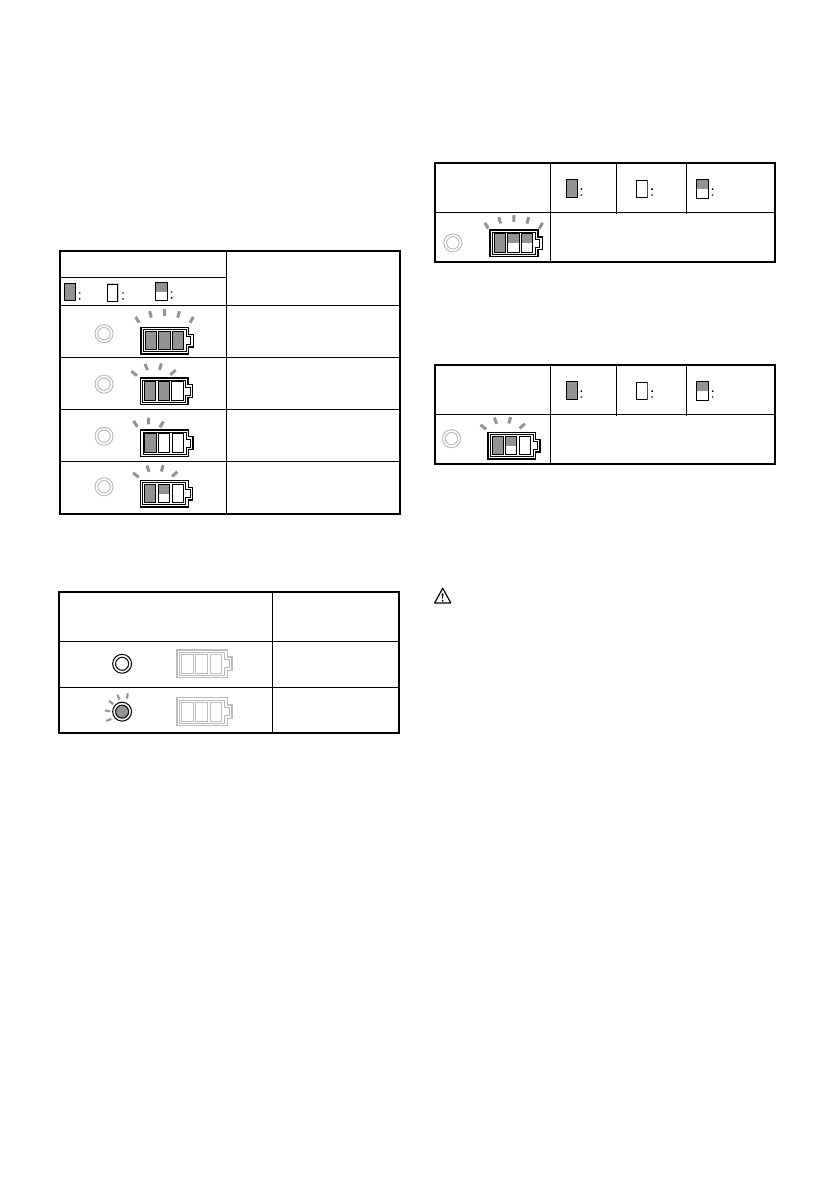

Indicating remaining battery capacity

Fig.3

When you turn the tool on, the battery indicator shows
the remaining battery capacity.
The remaining battery capacity is shown as the following table.

Battery indicator status

Remaining battery capacity

50% - 100%

20% - 50%

0% - 20%

Charge the battery

On

Off

Blinking

015146

Automatic speed change function

Fig.4

Mode indicator status

Operation mode

High speed mode

High torque mode

015137

This tool has "high speed mode" and "high torque
mode". It automatically changes operation mode
depending on the work load. When mode indicator lights
up during operation, the tool is in high torque mode.

Tool / battery protection system

The tool is equipped with a tool/battery protection
system. This system automatically cuts off power to the
motor to extend tool and battery life.
The tool will automatically stop during operation if the
tool or battery are placed under one of the following
conditions. In some conditions, the indicator lights up.

Overload protection

When the tool is operated in a manner that causes it to
draw an abnormally high current, the tool automatically
stops without any indications. In this situation, turn the
tool off and stop the application that caused the tool to
become overloaded. Then turn the tool on to restart.

Overheat protection for tool

When the tool is overheated, the tool stops
automatically and the battery indicator shows following
state. In this situation, let the tool cool before turning the
tool on again.

Battery indicator

Tool is overheated

On

Off

Blinking

015145

Releasing protection lock

When the protection system works repeatedly, the tool
is locked and the battery indicator shows the following
state.

Battery indicator

On

Off

Blinking

Protection lock works

015201

In this situation, the tool does not start even if turning
the tool off and on. To release the protection lock,
remove the battery, set it to the battery charger and wait
until the charging finishes.

Adjusting depth of cut

CAUTION:

•

After adjusting the depth of cut, always tighten the
lever securely.

Fig.5

Loosen the lever on the side of the rear handle and
move the base up or down. At the desired depth of cut,
secure the base by tightening the lever.
For cleaner, safer cuts, set cut depth so that no more
than one blade tooth projects below workpiece. Using
proper cut depth helps to reduce potential for dangerous
KICKBACKS which can cause personal injury.

Bevel cutting

Fig.6

Loosen the front lever. Set for the desired angle (0° - 50°) by
tilting accordingly, then tighten the front lever securely.

Fig.7

Use the 45° stopper when you do precise 45° angle
cutting. Turn the stopper counterclockwise fully for bevel
cut (0° - 45°) and turn it clockwise for 0° - 50° bevel cuts.

Sighting

Fig.8

For straight cuts, align the 0° position on the front of the
base with your cutting line. For 45° bevel cuts, align the
45° position with it. The position of the top guide is
adjustable.
