 | English

1 609 92A 0JA | (22.6.15)

Bosch Power Tools

– It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the
materials to be worked.



Prevent dust accumulation at the workplace.

Dusts can

easily ignite.

A GDE 16 Plus (accessory) is required for dust extraction.

The vacuum cleaner must be suitable for the material being
worked.

When vacuuming dry dust that is especially detrimental to
health or carcinogenic, use a special vacuum cleaner.

Operation

Starting Operation

Inserting the battery

– Set the rotational direction switch

8

 to the centre position

to protect the power tool against accidental starting.

– Insert the charged battery pack

11

 from the rear into the

base of the power tool. Press the battery pack completely
into the base until the red stripe can no longer be seen and
the battery pack is securely locked.

Setting the operating mode

The operating mode of the power tool is selected with the
mode selector switch

13

.

Note:

Change the operating mode only when the machine is

switched off! Otherwise, the machine can be damaged.

– To change the operating mode, push the release button

12

and turn the mode selector switch

13

 to the requested po-

sition until it can be heard to latch.

Reversing the rotational direction

The rotational direction switch

8

 is used to reverse the rota-

tional direction of the machine. However, this is not possible
with the On/Off switch

10

 actuated.

Right rotation:

Move the rotational direction switch

8

 all the

way to position

.

Left rotation:

Move the rotational direction switch

8

 all the

way to position

.

Set the direction of rotation for hammer drilling, drilling and
chiselling always to right rotation.

Switching On and Off

To save energy, only switch the power tool on when using it.

– To

start

 the machine, press the On/Off switch

10

.

When starting the machine for the first time, a starting delay
is possible, as the electronic system of the power tool has to
configure itself first.

– To

switch off

 the machine, release the On/Off switch

10

.

Setting the Speed/Impact Rate

The speed/impact rate of the switched on power tool can be
variably adjusted, depending on how far the On/Off switch

10

is pressed.

Light pressure on the On/Off switch

10

 results in low

speed/impact rate. Further pressure on the switch increases
the speed/impact rate.

Electronic Precision Control (EPC) (see figure L)

EPC assists you when working with impact in sensitive mate-
rials by ensuring slow start-up and reduced operating speed.

– Slide the EPC switch

30

 to the desired position.

Overload Clutch



If the tool insert becomes caught or jammed, the drive
to the drill spindle is interrupted. Because of the forces
that occur, always hold the power tool firmly with both
hands and provide for a secure stance.



If the power tool jams, switch the machine off and loos-
en the tool insert. When switching the machine on with
the drilling tool jammed, high reaction torques can oc-
cur.

Rapid Shut-off (ERC)

The rapid shut-off feature enables better control of the power
tool. The power tool shuts off in case of sudden and unexpect-
ed rotation of the power tool around the drilling axis.

Rapid shut-off is indicated by flashing of the worklight

14

 on

the power tool.

– To

restart the machine

, release the On/Off switch and

then actuate again.



Rapid shut-off can trigger only when the power tool is
running at maximum operating speed and can rotate
freely around the drill bit axis.

Choose a suitable work

position for this. Otherwise, rapid shut-off will not be en-
sured.

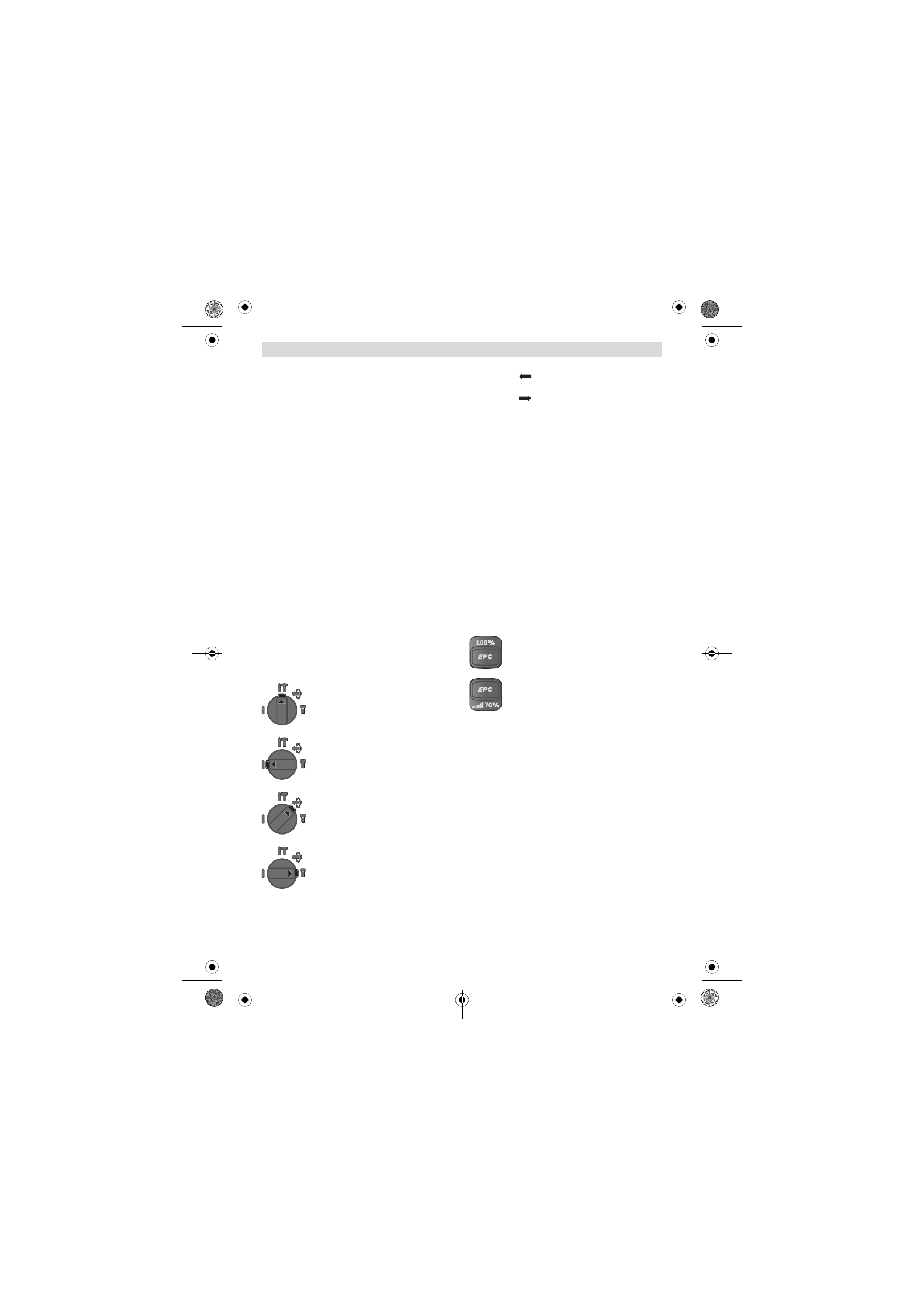

Position for

hammer drilling

 in concrete or

stone

Position for

drilling

 without impact in wood,

metal, ceramic and plastic as well as for
screwdriving

Vario-Lock

 position for adjustment of the

chiselling position

The mode selector switch

13

 does not latch in

this position.

Position for

chiselling

Position for maximum operating speed

Position for slow start-up and reduced operating
speed
