Operation

Starting Operation



Observe correct mains voltage! The voltage of the pow-
er source must agree with the voltage specified on the
nameplate of the machine. Power tools marked with
230 V can also be operated with 220 V.

Setting the operating mode

GBH 2-26 E/RE:

With the selector switch for drilling/hammer drilling

16

, the

operating mode of the machine is selected.

– To change the operating mode, press the release button

15

 and turn the drilling/hammer drilling selector switch

16

to the desired position until it can be heard to latch.

GBH 2-26 DE/DRE/DFR:

The operating mode of the power tool is selected with the
mode selector switch

11

.

– To change the operating mode, push the release button

10

and turn the mode selector switch

11

 to the requested po-

sition until it can be heard to latch.

Note:

Change the operating mode only when the machine is

switched off! Otherwise, the machine can be damaged.

Reversing the rotational direction
(GBH 2-26 RE/DRE/DFR)

The rotational direction switch

7

 is used to reverse the rota-

tional direction of the machine. However, this is not possible
with the On/Off switch

9

 actuated.

Right rotation:

Turn the selector switch for drilling/ham-

mer drilling

7

 on both sides to the stop in the position

.

Left rotation:

Turn the selector switch for drilling/ham-

mer drilling

7

 on both sides to the stop in the position

.

– Set the direction of rotation for hammer drilling, drilling

and chiselling always to right rotation.

Switching On and Off

– To

start

 the machine, press the On/Off switch

9

.

– To

lock

 the On/Off switch, keep it pressed and additionally

push the lock-on button

8

.

– To

switch off

 the machine, release the On/Off switch

9

.

When the On/Off switch

9

 is locked, press it first and then

release it.

To save energy, only switch the power tool on when using it.

Setting the Speed/Impact Rate

The speed/impact rate of the switched on power tool can be
variably adjusted, depending on how far the On/Off switch

9

is pressed.

Light pressure on the On/Off switch

9

 results in low speed/im-

pact rate. Further pressure on the switch increases the
speed/impact rate.

Overload Clutch



If the tool insert becomes caught or jammed, the drive
to the drill spindle is interrupted. Because of the forces
that occur, always hold the power tool firmly with both
hands and provide for a secure stance.



If the power tool jams, switch the machine off and loos-
en the tool insert. When switching the machine on with
the drilling tool jammed, high reaction torques can oc-
cur.

Working Advice



Before any work on the machine itself, pull the mains
plug.

Changing the Chiselling Position (Vario-Lock)
(GBH 2-26 DE/DRE/DFR)

The chisel can be locked in 36 positions. In this manner, the
optimum working position can be set for each application.

– Insert the chisel into the tool holder.
– Turn the mode selector switch

11

 to the “Vario-Lock” posi-

tion (see “Setting the operating mode”, page 18).

– Turn the tool holder to the desired chiselling position.
– Turn the mode selector switch

11

 to the “chiselling” posi-

tion. The tool holder is now locked.

– For chiselling, set the rotation direction to right rotation.

Inserting Screwdriver Bits (see figure L)



Apply the power tool to the screw/nut only when it is
switched off.

Rotating tool inserts can slip off.

To work with screwdriver bits, a universal bit holder

30

 with

SDS-plus shank (accessory) is required.

– Clean the shank end of the adapter shank and apply a light

coat of grease.

– Insert the universal bit holder with a turning motion into

the tool holder until it automatically locks.

– Check the locking effect by pulling the universal bit holder.
– Insert a screwdriver bit into the universal bit holder. Use

only screwdriver bits that match the screw head.

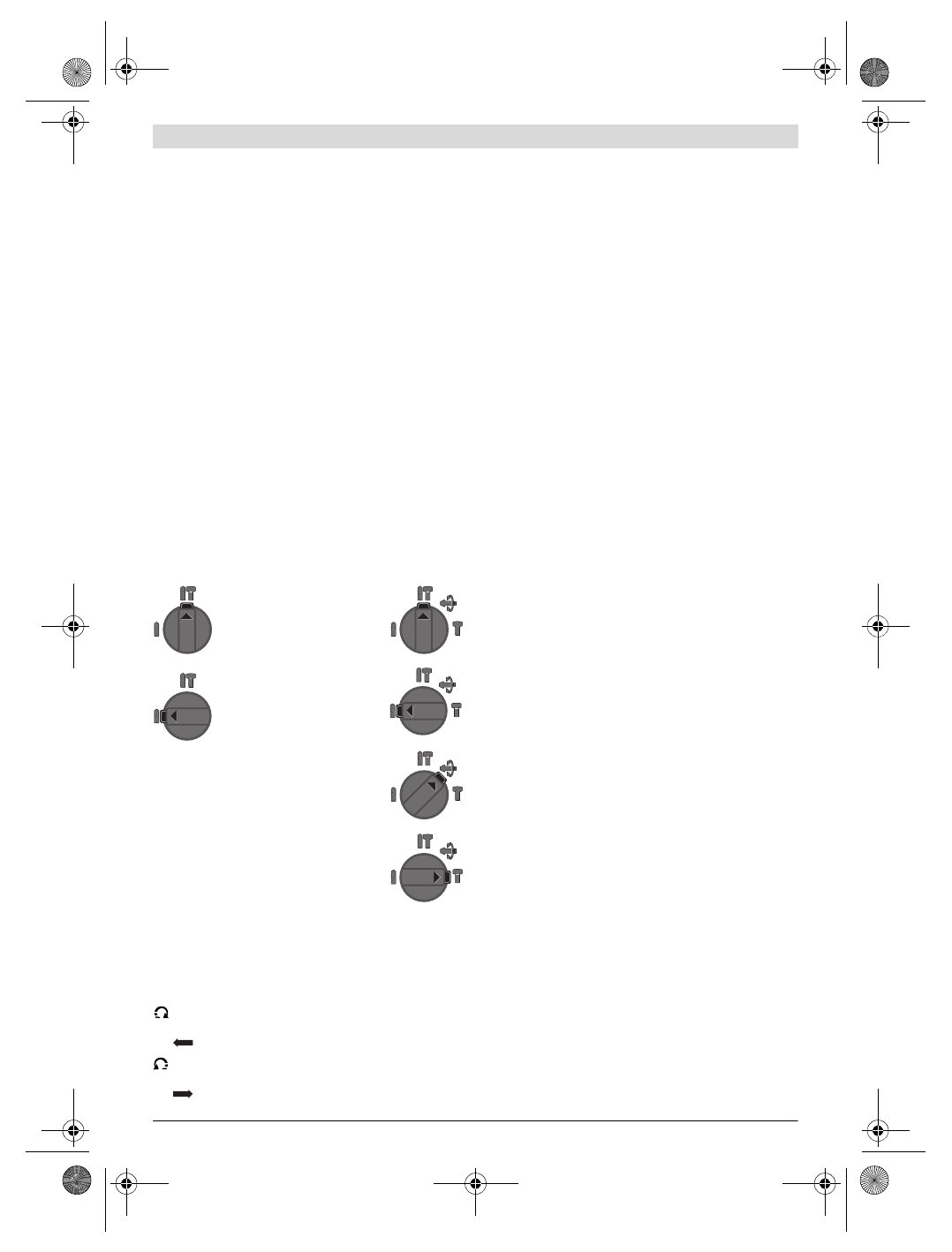

GBH 2-26 E/RE

GBH 2-26 DE/

DRE/DFR

Position for

hammer drilling

 in

concrete or stone

Position for

drilling

 without im-

pact in wood, metal, ceramic
and plastic as well as for screw-
driving

Vario-Lock

 position for adjust-

ment of the chiselling position

The mode selector switch

11

does not latch in this position.

Position for

chiselling
