Installation

84

5 Installation

5.1 Electrical connection

General information

Check the grid characteristics against the
data indicated on the plate. The
identification plate bearing the technical
data, serial number and brand name is
visibly positioned on the appliance. Do not
remove this plate for any reason.
Ground the appliance using a wire that is
20 mm longer than the other wires. The
appliance is provided with a five-core
H07RN-F cable (5 x 1.5 mm² referring to
the cross section of the internal conductor).

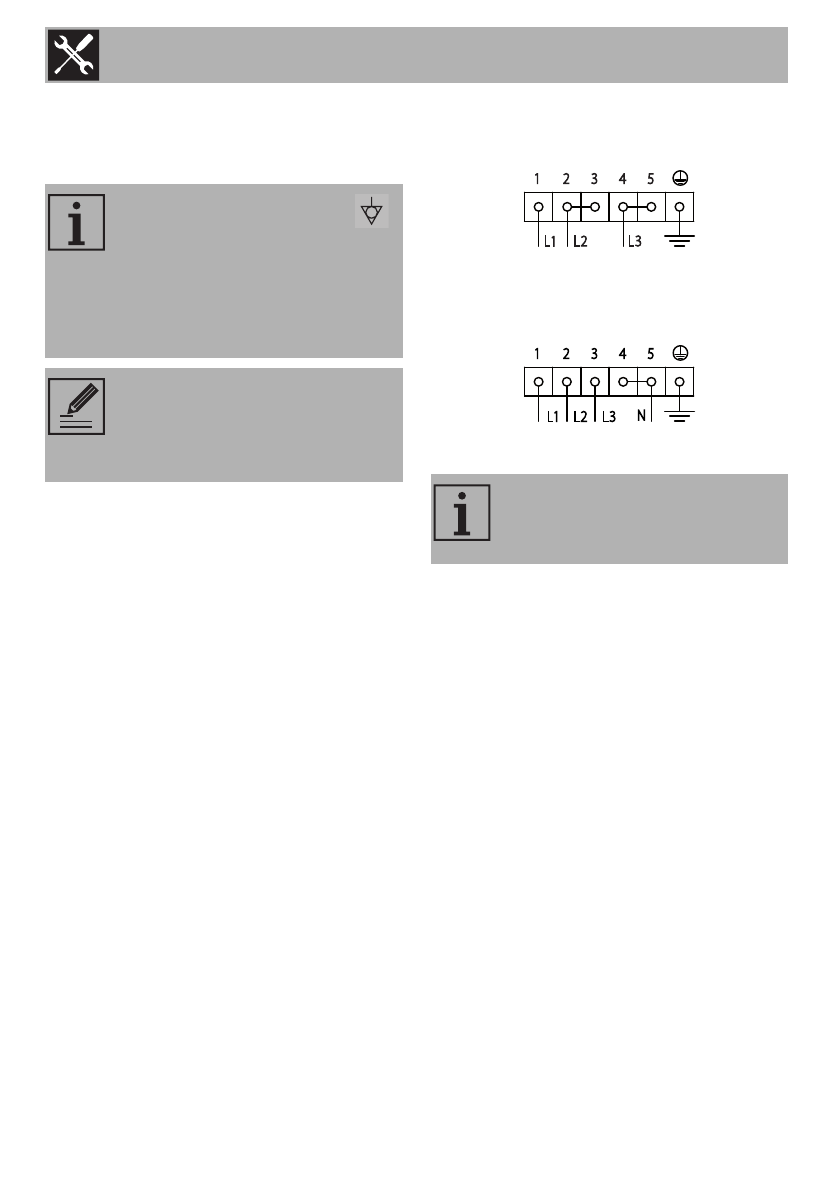

Connection modes:

•

220-240 V 3

~

4 x 6 mm²

four-core

 cable.

•

380-415 V 3N

~

5 x 2.5 mm²

five-core

 cable.

Fixed connection

Fit the power line with an all-pole circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.

Connection with plug and socket

To connect:

380-415 V 3N

~

with

5 x 2.5 mm² five-core

 cable.

Check that the plug (not supplied) and
power socket are compatible and of
adequate capacity for the maximum current
draw of the appliance.
Avoid using adapters and shunts as these
could cause overheating and a risk of
burns.

The terminal indicated by the

symbol links up parts that are
normally earthed. Connect the
appliances appropriately using this
terminal in order to make sure that
they are equipotential.

If the phase voltage drops below
190V~, the performance of the
oven may suffer, not due to the
product itself.

The values indicated above refer
to the cross-section of the internal
conductor.
