Connect the speakers and antenna.

Do not connect this unit’s power cable until you’ve finished connecting all cables.

If the radio reception is poor, try changing the height or direction or placement of the antenna to find a location that has better
reception.
If you use a commercially available outdoor antenna instead of the supplied antenna, reception may be better.

CONNECTIONS

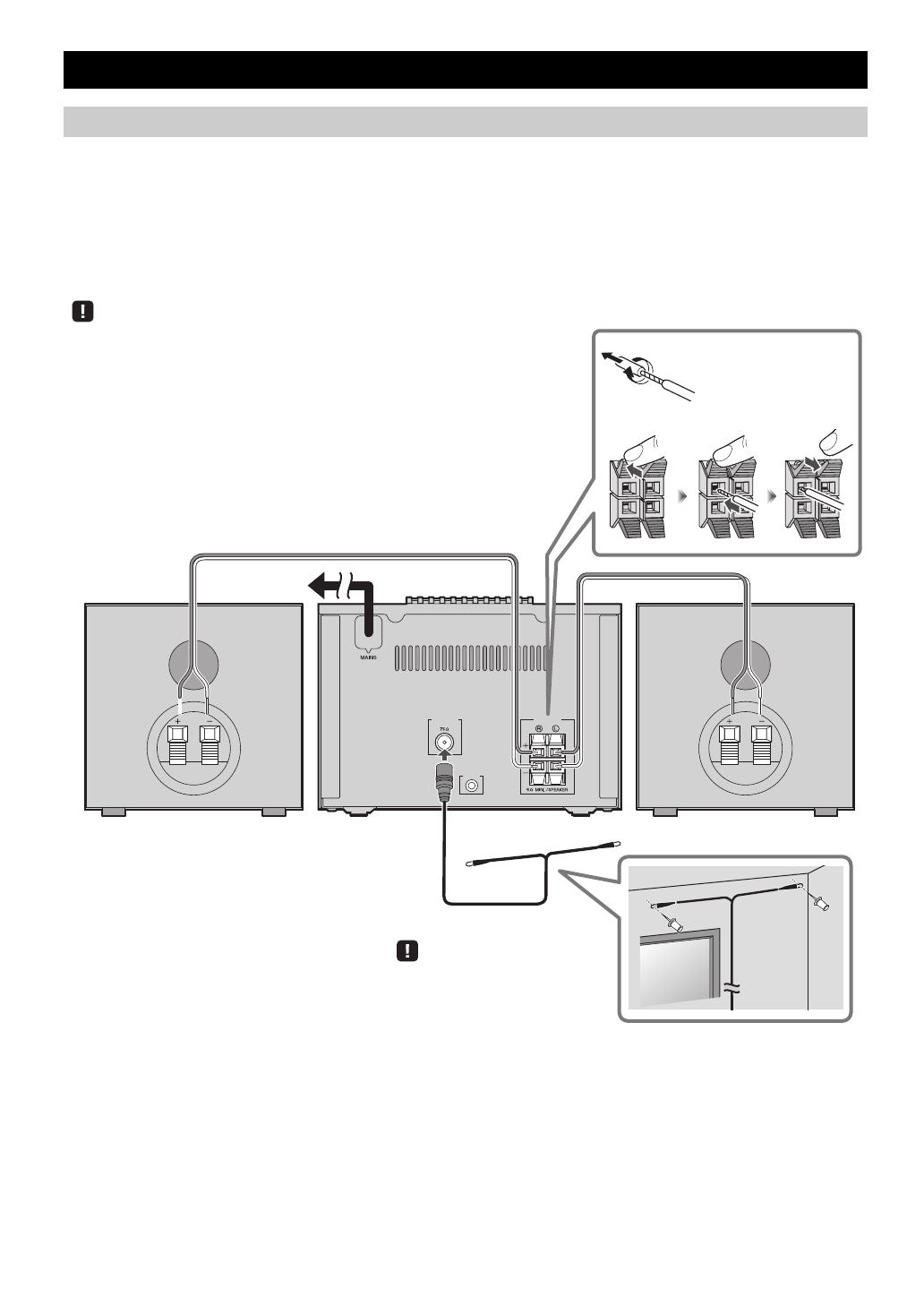

Connecting the speakers and antenna

ANTENNA

SPEAKERS

AUX IN

FM



Speakers

• You must peel off the insulation (covering) from the tip of the speaker cable to

expose the conductor.

• Check the connections; make sure that left and right (L, R) and polarity (red: +,

black: –) are connected correctly. If connections are incorrect, the sound will be
unnatural and the low frequencies may be insufficient. There might not be any
sound at all if connections are incorrect.

• Take care that the conductors of the speaker cable do not touch each other, and that

the conductors do not touch any other metal part. Such conditions can damage this
unit or the speakers.

• Use only the supplied speakers. Using other speakers may result in unnatural sound.
• If you’re using this unit nearby a CRT display and you notice distorted color or

noise in the display, move the speakers farther away from the display.

Twist the bare wires
tightly so the individual
strands are not splayed.



Supplied antenna

Be sure to stretch out the antenna.

To the AC
wall outlet

(MCR-B043)
