– 5 –

EN

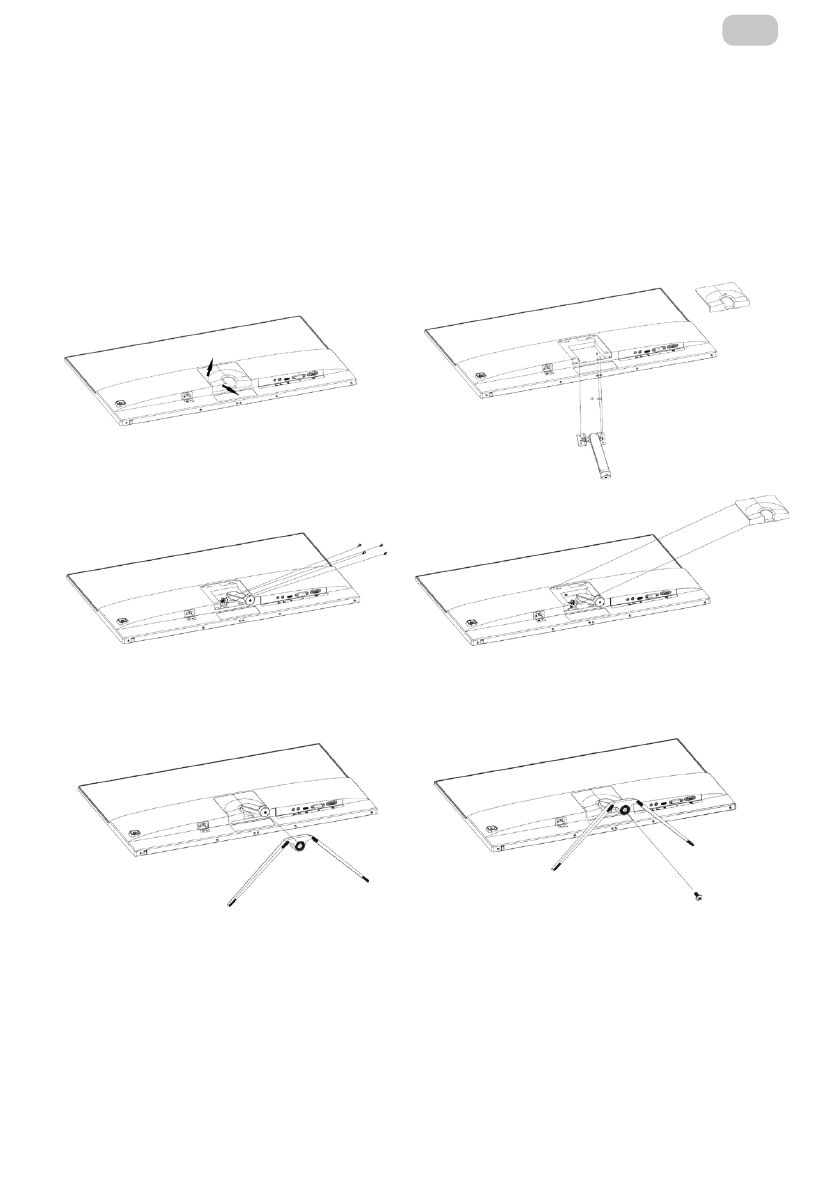

Instruction of Base Installation

1.

Remove the small cover on the rear shell, as shown in Fig. 1

2.

Install the base support at the position shown in Fig. 2

3.

Fix the base support on the machine with four Ø4x9 screws, as shown in Fig. 3

4.

Install the small cover on the whole machine through the support, as shown in Fig. 4

5.

Install the base on the support, and fix the base on the support with M6x14mm combination screw
with shrapnel, as shown in Fig. 5 and Fig. 6

Instruction of Base Installation
1.

Remove the small cover on the rear shell, as shown in Fig. 1

2.

Install the base support at the position shown in Fig. 2

3.

Fix the base support on the machine with four Ø4x9 screws, as shown in Fig. 3

4.

Install the small cover on the whole machine through the support, as shown in Fig. 4

5.

Install the base on the support, and fix the base on the support with M6x14mm combination screw

with shrapnel, as shown in Fig. 5 and Fig. 6

Fig. 1

Fig. 2

Ø4x9 screws

Fig. 3

Fig. 4

        M6x14mm combination screws

Fig. 5

Fig. 6

Note: Some of the contents in this manual may differ slightly from the final product, and the later shall be

referred to.

Note:

Some of the contents in this manual may differ slightly from the final product, and the later shall

be referred to.
