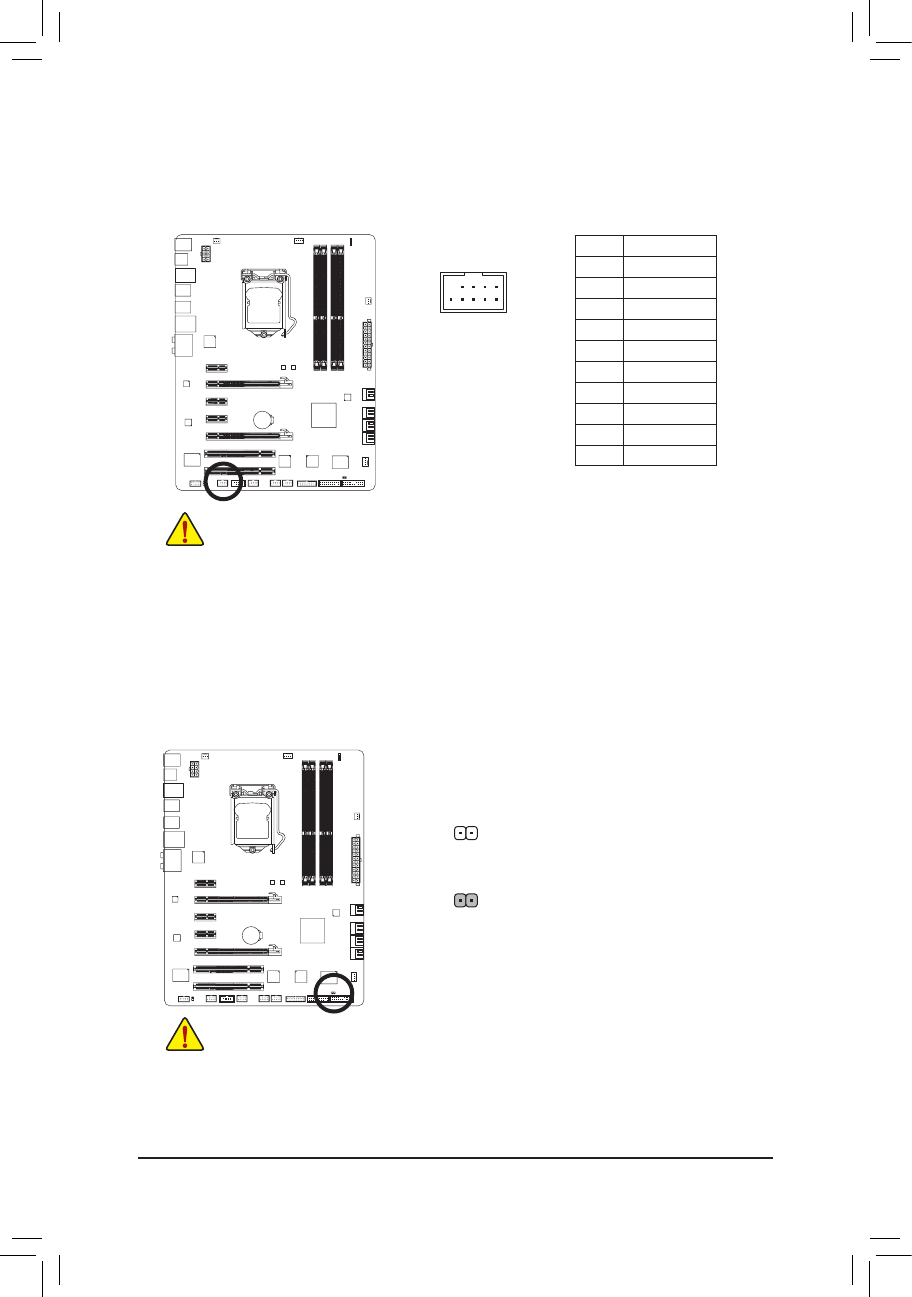

Hardware Installation

- 30 -

16)  F_1394 (IEEE 1394a Header)



The header conforms to IEEE 1394a specification. The IEEE 1394a header can provide one IEEE 1394a

port via an optional IEEE 1394a bracket. For purchasing the optional IEEE 1394a bracket, please con-
tact the local dealer.

  Do not plug the USB bracket cable into the IEEE 1394a header.

  Prior  to  installing  the  IEEE  1394a  bracket,  be  sure  to  turn  off  your  computer  and  unplug  the

power cord from the power outlet to prevent damage to the IEEE 1394a bracket.

  To connect an IEEE 1394a device, attach one end of the device cable to your computer and

then attach the other end of the cable to the IEEE 1394a device. Ensure that the cable is se-
curely connected.

17)  CLR_CMOS (Clearing CMOS Jumper)



Use  this  jumper  to  clear  the  CMOS  values  (e.g.  date  information  and  BIOS  configurations)  and  reset

the CMOS values to factory defaults. To clear the CMOS values, place a jumper cap on the two pins to
temporarily  short  the  two  pins  or  use  a  metal  object  like  a  screwdriver  to  touch  the  two  pins  for  a  few
seconds.

Always turn off your computer and unplug the power cord from the power outlet before clear-



ing the CMOS values.

After clearing the CMOS values and before turning on your computer, be sure to remove the



jumper cap from the jumper. Failure to do so may cause damage to the motherboard.

After  system  restart,  go  to  BIOS  Setup  to  load  factory  defaults  (select  Load  Optimized  De-



faults)  or  manually  configure  the  BIOS  settings  (refer  to  Chapter  2,  "BIOS  Setup,"  for  BIOS

configurations).

Open: Normal

Short: Clear CMOS Values

DEBUG

PORT

G.QBOFM

10

9

2

1

Pin No.

Definition

1

TPA+

2

TPA-

3

GND-

4

GND

5

TPB+

6

TPB-

7

Power (12V)

8

Power (12V)

9

No Pin

10

GND
