- 27 -

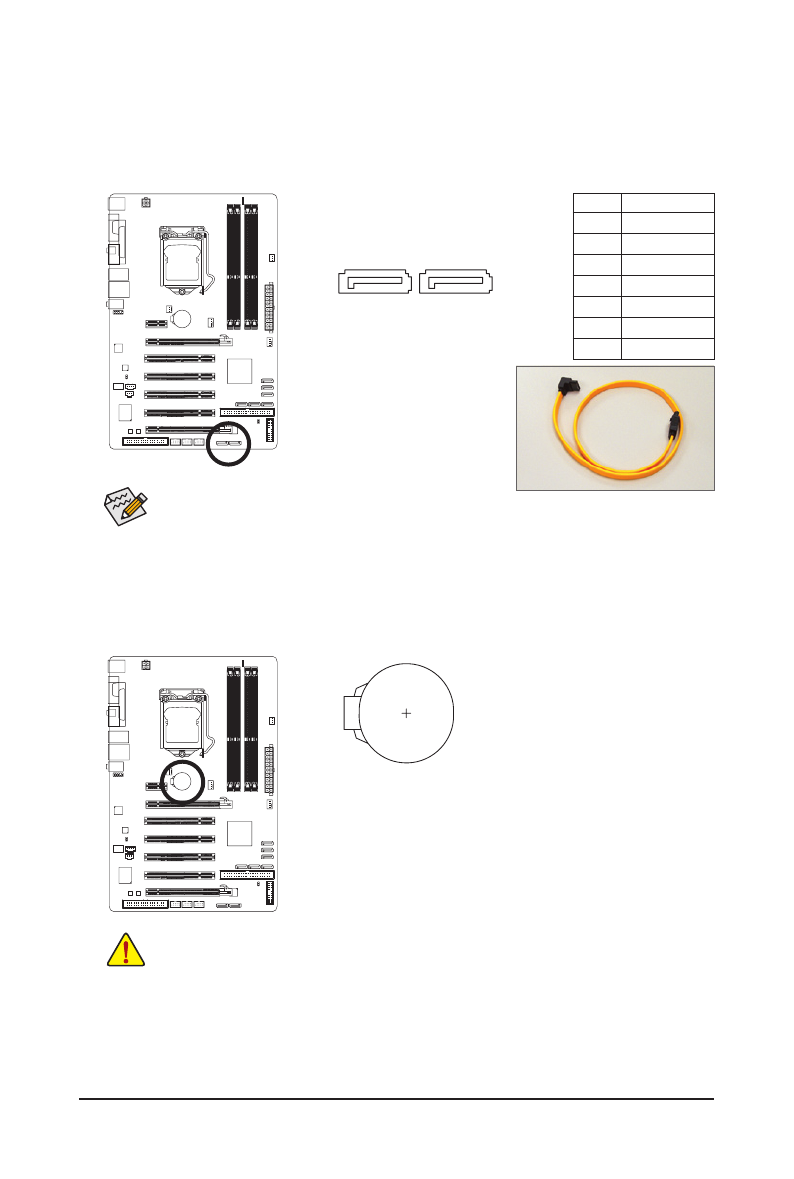

Hardware Installation

9)  GSATA2_0/1 (SATA 3Gb/s Connectors, Controlled by GIGABYTE SATA2)



The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.

Each SATA connector supports a single SATA device. The GIGABYTE SATA2 controller supports RAID 0,

RAID 1, and JBOD. Refer to Chapter 5, "Configuring SATA Hard Drive(s)," for instructions on configuring

a RAID array.

Pin No.  Definition
  1

GND

  2

TXP

  3

TXN

  4

GND

  5

RXN

  6

RXP

  7

GND

A RAID 0 or RAID 1 configuration requires at least two hard
drives. If more than two hard drives are to be used, the total
number of hard drives must be an even number.

Please  connect  the  L-shaped  end  of

the  SATA  3Gb/s  cable  to  your  SATA

hard drive.

10)  BAT (BATTERY)



The battery provides power to keep the values (such as BIOS configurations, date, and time information)
in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a

low level, or the CMOS values may not be accurate or may be lost.

You may clear the CMOS values by removing the battery:

1.  Turn off your computer and unplug the power cord.

2.  Gently remove the battery from the battery holder and wait for one minute.

(Or use a metal object like a screwdriver to touch the positive and negative

terminals of the battery holder, making them short for 5 seconds.)

3.  Replace the battery.

4.  Plug in the power cord and restart your computer.

  Always turn off your computer and unplug the power cord before replacing the battery.

  Replace  the  battery  with  an  equivalent  one.  Danger  of  explosion  if  the  battery  is  replaced  with  an

incorrect model.

  Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or

uncertain about the battery model.

  When installing the battery, note the orientation of the positive side (+) and the negative side (-) of the

battery (the positive side should face up).

  Used batteries must be handled in accordance with local environmental regulations.

GSATA2_0

GSATA2_1

7

1
