Hardware Installation

- 20 -

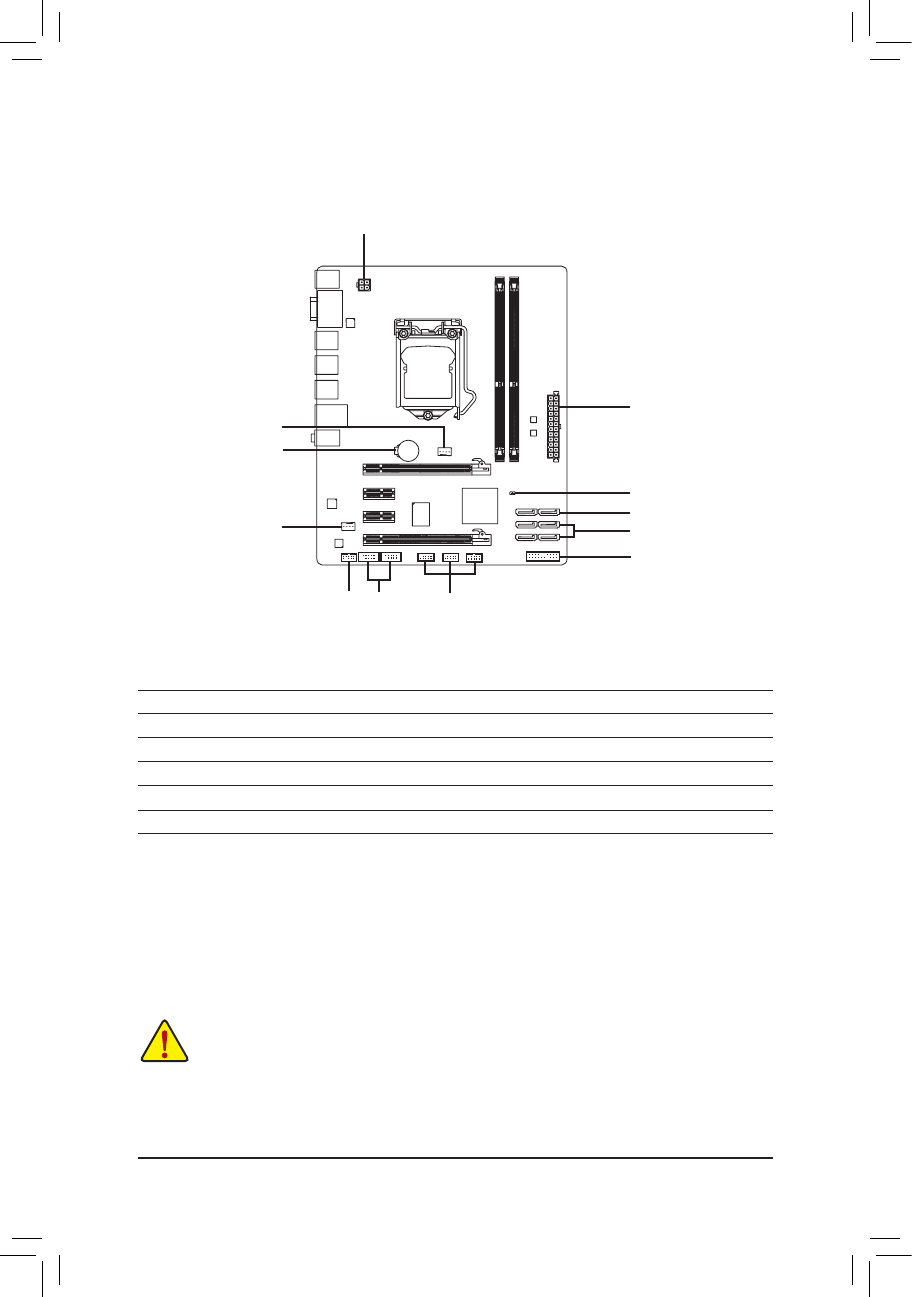

1-7  Internal Connectors

Read the following guidelines before connecting external devices:

First make sure your devices are compliant with the connectors you wish to connect.

•

Before  installing  the  devices,  be  sure  to  turn  off  the  devices  and  your  computer.  Unplug  the

•

power cord from the power outlet to prevent damage to the devices.
After installing the device and before turning on the computer, make sure the device cable has

•

been securely attached to the connector on the motherboard.

1

2

9

10

6

7

3

4

5

8

12

11

  1)

ATX_12V

  2)

ATX

  3)

CPU_FAN

  4)

SYS_FAN

  5)

BAT

  6)

SATA3_0/1

  7)

SATA2_2/3/4/5

  8)

F_PANEL

  9)

F_AUDIO

  10)

COMA/COMB

  11)

F_USB1/2/3

  12)

CLR_CMOS
