Unique Features

- 57 -

Button Information Table

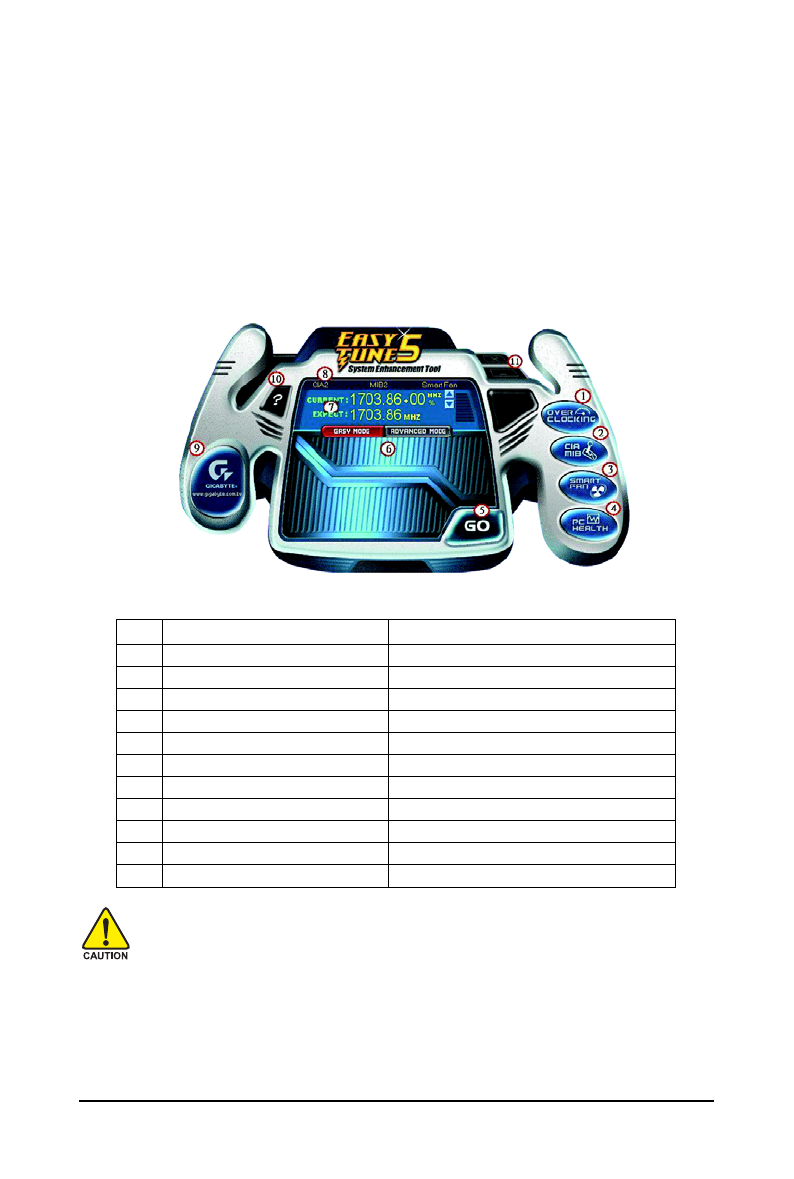

The EasyTune 5 Interface

(Note 1) Available functions in EasyTune 5 may differ by motherboard model.
(Note 2) C.I.A. and M.I.B. may provide optimizations for CPU and memory, enhancing the

performance of these components.

Button/Display

Description

1 .

OVERCLOCKING

Enters the Overclocking setting page

2 .

C.I.A./M.I.B.

Enters the C.I.A. and M.I.B. setting page

3 .

SMART FAN

Enters the Smart-Fan setting page

4 .

PC HEALTH

Enters the PC Health setting page

5 .

GO

Confirmation and Execution button

6 .

EASY MODE/ADVANCED MODE

Toggles between Easy and Advance Mode

7 .

Display Field

Displays panel of CPU frequency

8 .

Function LEDs

Shows the information of the current function

9 .

GIGABYTE Logo

Visits GIGABYTE website

10.

Help

Displays EasyTune

TM

 5 help screen

11.

Exit or Minimize

Quits or minimizes EasyTune

TM

  5

Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and
reduce the useful life of these components.  Before you do the overclock/overvoltage, make sure
that you fully know how to use each function of EasyTune 5, or system instability or other
unexpected results may occur.

4-3

EasyTune 5

EasyTune

TM

 5, an easy-to-use and convenient system overclocking and management tool, lets you do

overclock and overvoltage in Windows environment, eliminating the need to enter the BIOS Setup
program.  EasyTune 5 provides the following functions

 (Note 1)

: overclocking/overvoltage, C.I.A./

M.I.B.

 (Note 2)

, smart fan control, and hardware monitoring and warning.  (For instructions on using

EasyTune5, read or download the information on/from the Support\Motherboard\Utility page on our
website.)
