GA-73UM-S2H Motherboard

- 74 -

Step 6:
After assigning the RAID drives, press <F7>. A message which says "All data on new(or added) disks
will be overwritten. Continue?" appears (Figure 6). To overwrite the data in the selected hard drives,
press <Y> to confirm or press <N> to cancel. (If the hard drives contain a previously created RAID
array, you need to press <Y> to clear the data in the hard drives.) If you confirm Yes to the prompt
above, the "Clear MBR?" prompt appears. Press <Y> to clear or <N> to abort. (We recommend that you
clear the MBR to reduce drive errors.)

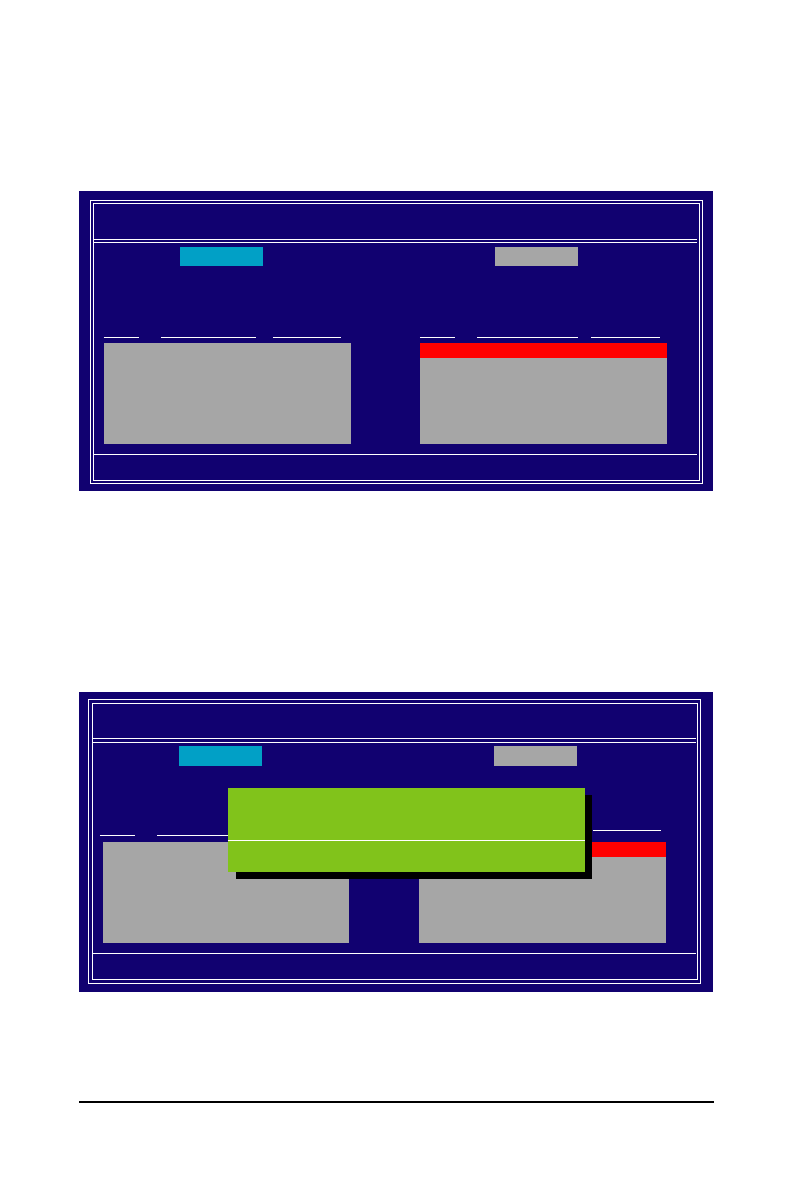

Figure 6

Figure 5

Step 5:
Next, select the hard drives which you wish to be included in the disk array. The

Free Disks

 block

displays the information about the SATA hard drives that are available for use as RAID array drives.
Press <Tab> to move to the

Free Disks

 block. Select the target hard drives using the up or down arrow

key and use the right arrow key to add the hard drives to the

Array Disks

 block (Figure 5).

MediaShield BIOS  Jul 27 2007

- Define a New Array -

RAID Mode:

Striped

Stripe Block:

Optimal

[

J

J

J

J

J

] Add

[

I

I

I

I

I

] Del

[ESC] Quit      [F6] Back      [F7] Finish      [TAB] Navigate      [

KL

KL

KL

KL

KL

] Select      [ENTER] Popup

0.0

ST3120026AS

111.79GB

0.2

ST3120026AS

111.79GB

Free Disks
Port

Disk  Model

Capacity

Array Disks
Port

Disk  Model

Capacity

Clear disk data ?

[Y] YES     [N] NO

RAID Mode:

Striped

Stripe Block:

Optimal

[

J

J

J

J

J

] Add

[

I

I

I

I

I

] Del

[ESC] Quit       [F6] Back      [F7] Finish      [TAB] Navigate      [

KL

KL

KL

KL

KL

] Select      [ENTER] Popup

1.0.M

ST3120026AS

111.79GB

1.1.M

ST3120026AS

111.79GB

MediaShield BIOS  Jul 27 2007

- Define a New Array -

Array Disks
Port

Disk  Model

Capacity

Free Disks
Port

Disk  Model

Capacity

All data on new(or added) disks will be overwritten. Contiune?

[Y] YES     [N] NO
