12 |

Chapter 2: Hardware installation

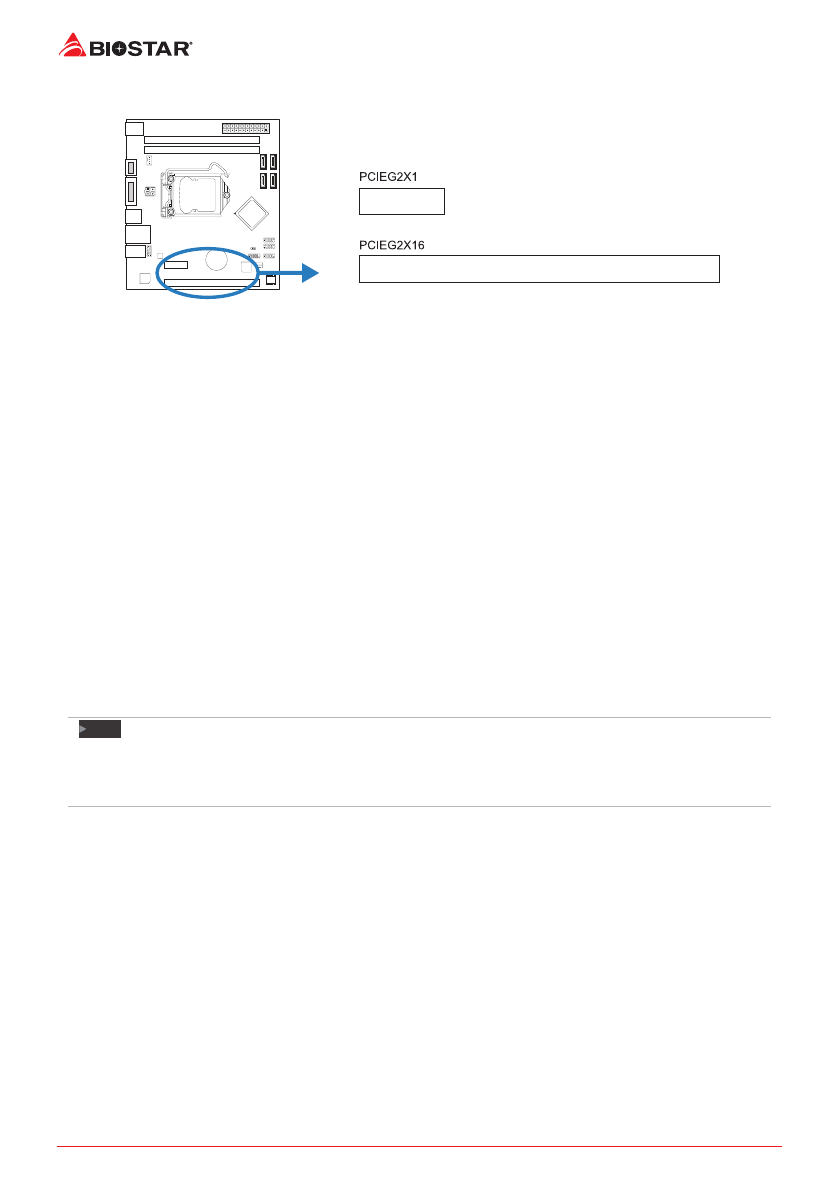

2.5 Expansion Slots

PCIEG2X16: PCI-Express Gen2 x16 Slot (x16 mode)

•   PCI-Express 2.0 compliant.

•   The maximum bandwidth of the PCIe slot is 16GB/s.

PCIEG2X1: PCI-Express Gen2 x1 Slots

•   PCI-Express 2.0 compliant.

•   Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.

Install an Expansion Card

You can install your expansion card by following steps:

•   Read the related expansion card’s instruction document before install the expansion card into the

computer.

•   Remove your computer’s chassis cover, screws and slot bracket from the computer.

•   Place a card in the expansion slot and press down on the card until it is completely seated in the

slot.

•   Secure the card’s metal bracket to the chassis back panel with a screw. (This step is only

for installing a VGA card.).

•   Replace your computer’s chassis cover.

•   Power on the computer, if necessary, change BIOS settings for the expansion card.

•   Install related driver for the expansion card.

Note

»

Please be note that you will need to use M2 type screwdriver if you want to install or uninstall the

screw. It is recommended not to use a screwdriver that does not meet the specifications, otherwise

the screw may be damaged.
