Chapter 2: Hardware installation | 13

B560MH-E 2.0

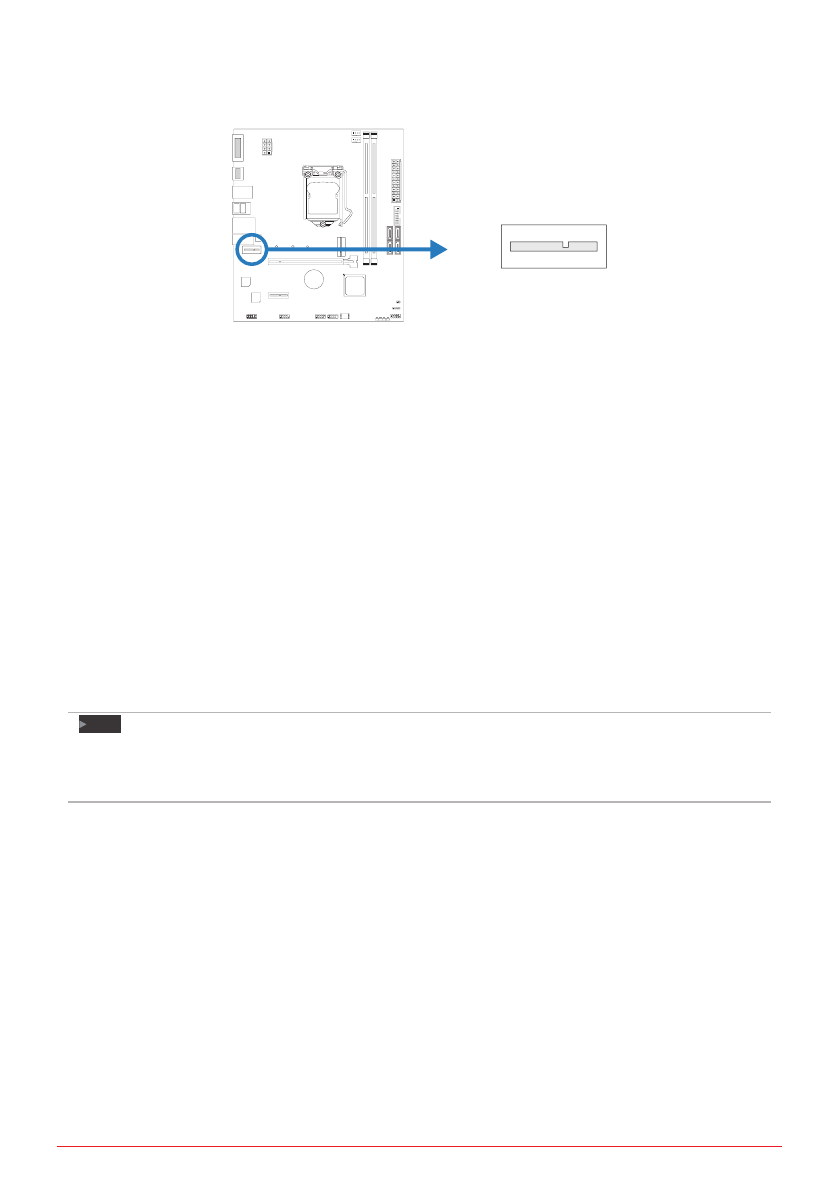

HYBRID_WIFI6: M.2 (E Key) Socket (M.2 (E key) Wi-Fi card is not provided)

•   Support M.2 socket 2230 type module.

•   Supports WiFi/ Bluetooth module and Intel® CNVi (Integrated WiFi/ BT).

Install an Expansion Card

You can install your expansion card by following steps:

•   Read the related expansion card’s instruction document before install the expansion card into the

computer.

•   Remove your computer’s chassis cover, screws and slot bracket from the computer.

•   Place a card in the expansion slot and press down on the card until it is completely seated in the

slot.

•   Secure the card’s metal bracket to the chassis back panel with a screw. (This step is only

for installing a VGA card.).

•   Replace your computer’s chassis cover.

•   Power on the computer, if necessary, change BIOS settings for the expansion card.

•   Install related driver for the expansion card.

Note

»

Please be note that you will need to use M2 type screwdriver if you want to install or uninstall the

screw. It is recommended not to use a screwdriver that does not meet the specifications, otherwise

the screw may be damaged.
