Installation

4

4

Installation

Installation

General notes

• Choose the mounting location

where the unit will not interfere with
the normal function of the driver.

• Before finally installing the unit

connect the wiring and make sure that
the unit works properly.

• Consult with your nearest dealer

if installation requires the drilling of
holes or other modifications of the
vehicle.

• Install the unit where it does not

get in the driver’s way and cannot
injure the passenger if there is a
sudden stop, like an emergency stop.

• Avoid installing the unit where it

would be subject to high temperature,
such as from direct sunlight, or from
hot air, from the heater, or where
it would be subject to dust, dirt or
excessive vibration.

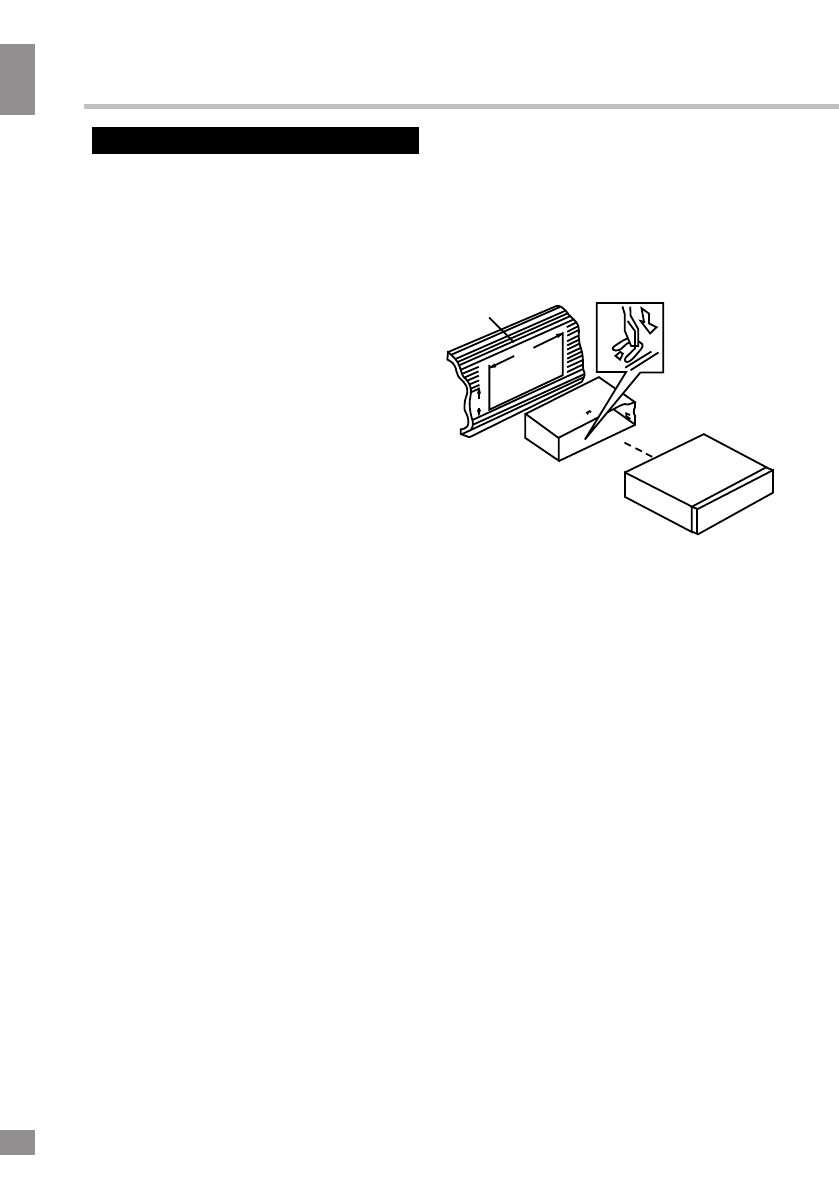

DIN front-mount

1. Install the sleeve into the

dashboard; ensure it is installed with
the correct side and there are no
obstacles (wires, dashboard elements,
etc) for the unit installation.

2. After installing the sleeve into the

dashboard, bend tabs fitting to the size
of the dashboard to fix the sleeve in
place.

2

1

182

53

1.

Dashboard

2.

Sleeve tab to bend

3.

Make the necessary wire

connections. Ensure the connections
are correct.

4.

Install the unit into the sleeve until

the side locks are fixed.
