ENGLISH

GENERAL

Power Requirement:

Operating Voltage: DC  14.4 V

(11 V to 16 V allowance)

Grounding System: Negative ground
Allowable Operating Temperature:

0°C to +40°C

Dimensions (W

×

 H

×

 D):

Installation Size:
• With sleeve-mounting plate Type B

(standard)

182 mm

×

 52 mm

×

 165 mm

• With sleeve-mounting plate Type A

182 mm

×

 52 mm

×

 160 mm

Panel Size: 188 mm

×

 58 mm

×

 14 mm

Mass: 2.25 kg (including monitor)

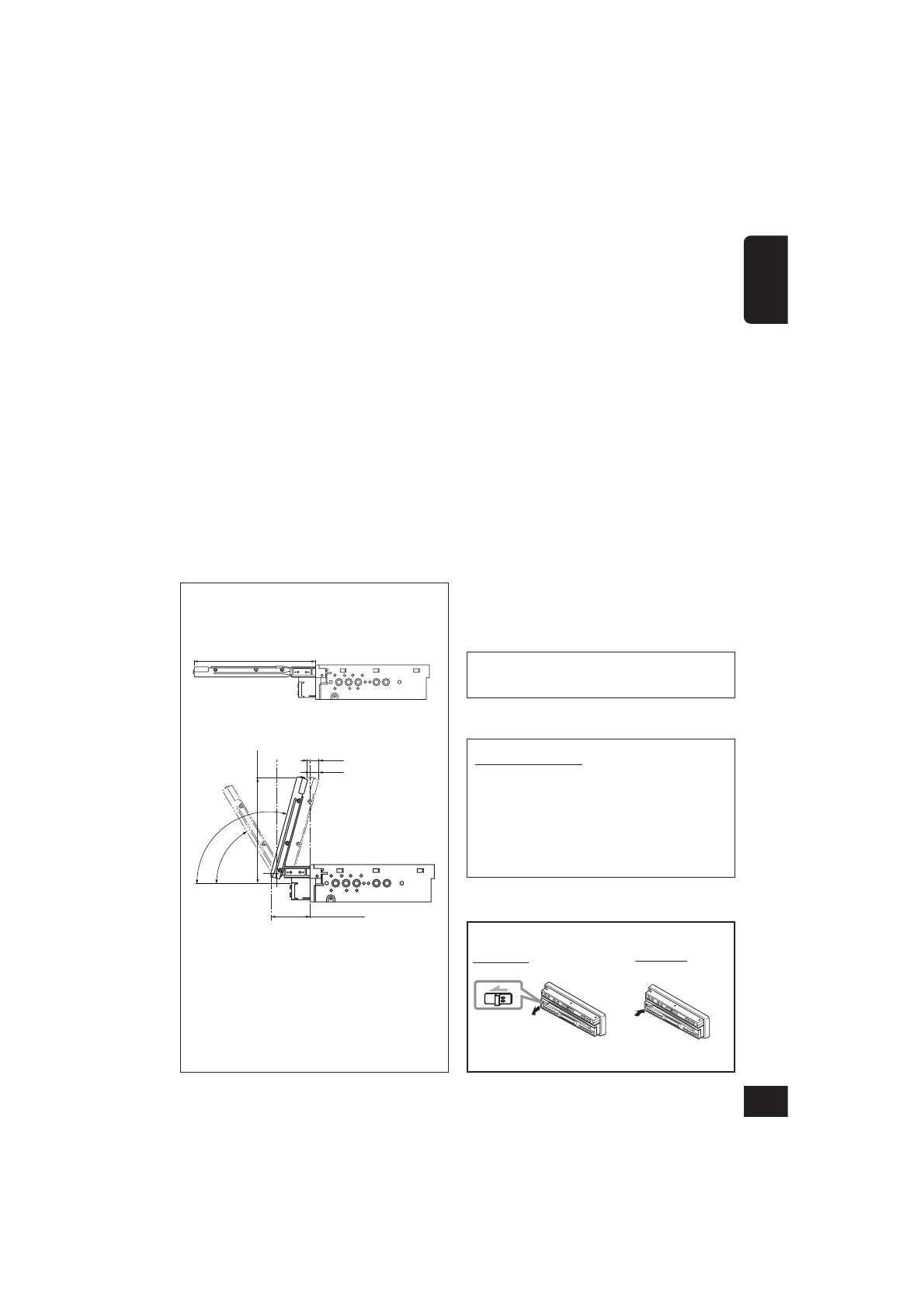

177

60˚

105˚

51.8

143.3

15

12.2

mm

Required space for the monitor
ejection

CAUTION:

 When ejecting the monitor,

keep an open space for the monitor to come
out. If not, the monitor may obstruct the
steering wheel and gearshift lever
operations, as this may result in a traffic
accident.

○ ○ ○ ○ ○ ○ ○ ○ ○

Hideaway unit

Input Terminals:

AV INPUT 1/2:

Audio: 0.5 Vrms (Left/Right)
Video (composite): 1 Vp-p/75

Ω

Output Terminals (Level/Impedance):

AV OUTPUT:

Audio: 2.0 V/20 k

Ω

 load (full scale)

Video (composite): 1 Vp-p/75

Ω

PRE OUT:

Audio: 2.0 V/20 k

Ω

 load (full scale)

Other Terminals:

System integration (TO MAIN UNIT)
FM/AM antenna (FM/AM ANTENNA)
AV bus (AV BUS)
CD changer (TO CHANGER)
Rear view camera/Center speaker
(BACKCAMERA REMOTE/CENTER SPEAKER)
Power cord (POWER)

Dimensions (W

×

 H

×

 D):

230 mm

×

 35 mm

×

 181 mm

Mass: 1.3 kg

Design and specifications are subject to
change without notice.

About mistracking:

Mistracking may result from driving on
extremely rough roads. This does not
damage the unit and the disc, but will be
annoying.
It is recommended to stop disc play while
driving on such rough roads.

Removing the control panel

To detach

To attach
