Operation

Control elements

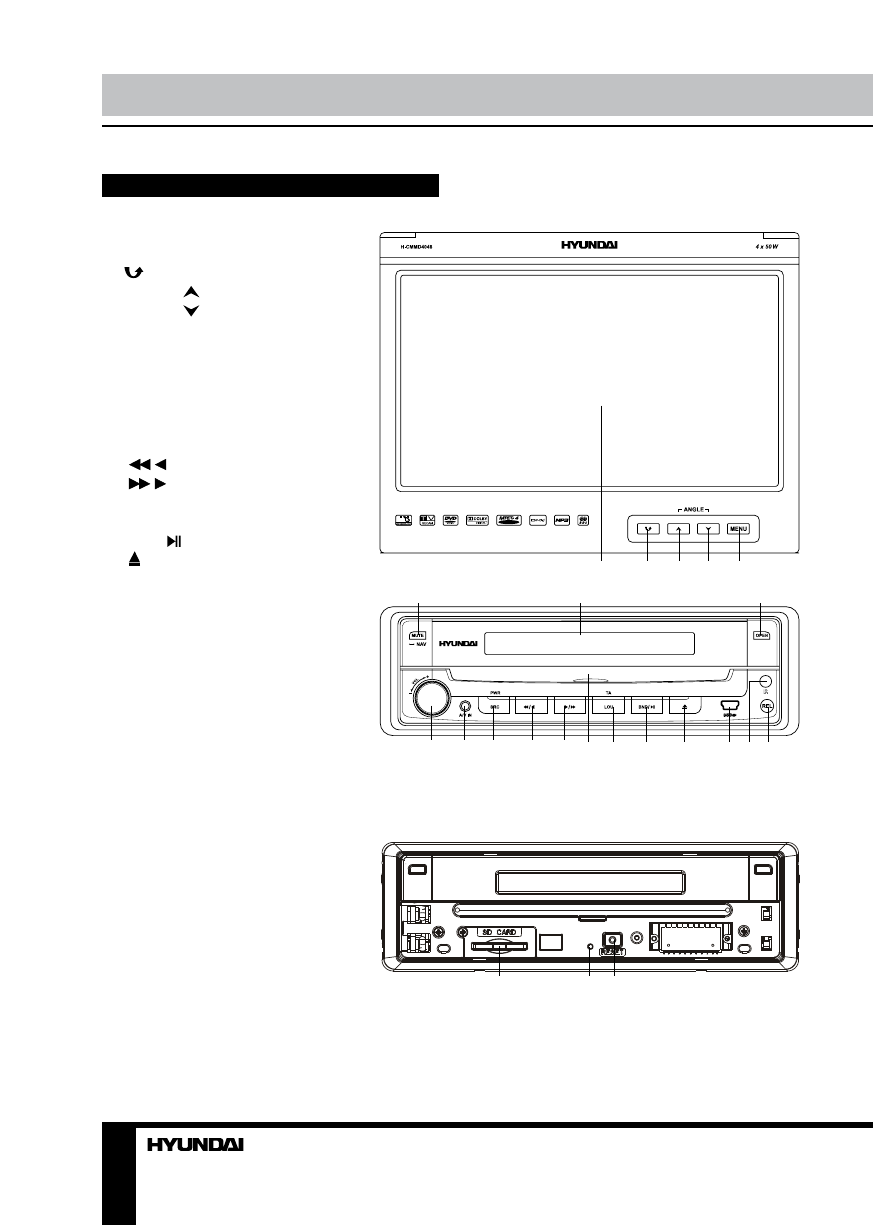

Front panel

1.  TFT display
2.

 button

3.  ANGLE   button
4.  ANGLE   button
5.  MENU button
6.  MUTE/NAV button (option)
7.  LCD display
8.  OPEN button
9.  VOL regulator/SEL button
10. A/V input
11. PWR/SRC button
12.

/  button

13.

/  button

14. Disc slot
15. TA/LOU button
16. BND/  button
17.   button
18. USB port
19. IR sensor
20. REL button

Not indicated:

 GPS card slot (option)

on the right side of the monitor

1

2

3

4

5

Inner panel

1. Memory card slot
2. Panel status indicator
(flashes when the panel is detached)
3. Reset button (hole)

1

2 3

6

7

8

9

10 11

12 13

15

14

16

17

18 19 20

H-CMMD4049
