Installation/Connection

Connection

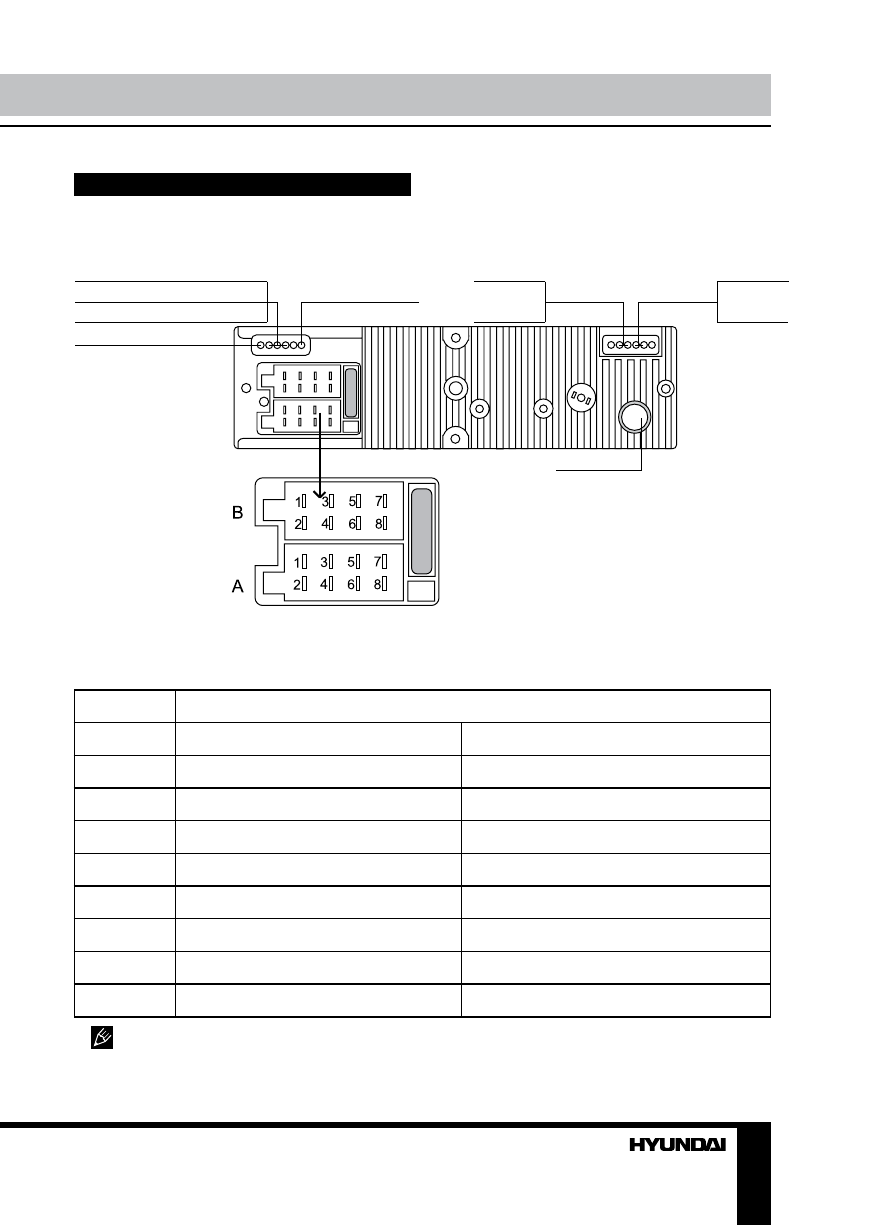

Connection diagram

Connector A

1. -
2. -
3. -
4. Memory +12V
5. Auto antenna output
6. To dimmer control
7. +12V (to ignition key)
8. Ground

Connector B

1. Rear right speaker (+)
2. Rear right speaker (-)
3. Front right speaker (+)
4. Front right speaker (-)
5. Front left speaker (+)
6. Front left speaker (-)
7. Rear left speaker (+)
8. Rear left speaker (-)

ISO connector

DVD video RCA out (yellow)

Red-Right

Red-Right

Line out
Grey-Front

Line out
Brown-Rear

DVD audio RCA out (white-left)
DVD audio RCA out (red-right)

White-Left

White-Left

Parking (brown)

Subwoofer out (blue)

Antenna jack

ISO connection table

Location

1

2

3

4

5

6

7

8

Connector A

Battery 12V (+)/yellow

Power Antenna/Blue

Dimmer/Orange

ACC+/Red

Ground/Black

Connector B

Rear Right(+)---Violet

Rear Right(-)---Violet/Black Stripe

Front Right(+)---Grey

Front Right(-)---Grey/Black Stripe

Front Left(+)---White

Front Left((-)---White/Black Stripe

Rear Left(+)---Green

Rear Left(-)---Green/Black Stripe

Function

  Power antenna wire is intended for power supply of the antenna and for remote control of

an additional amplifier.
