6

Installation/Connection

Connection

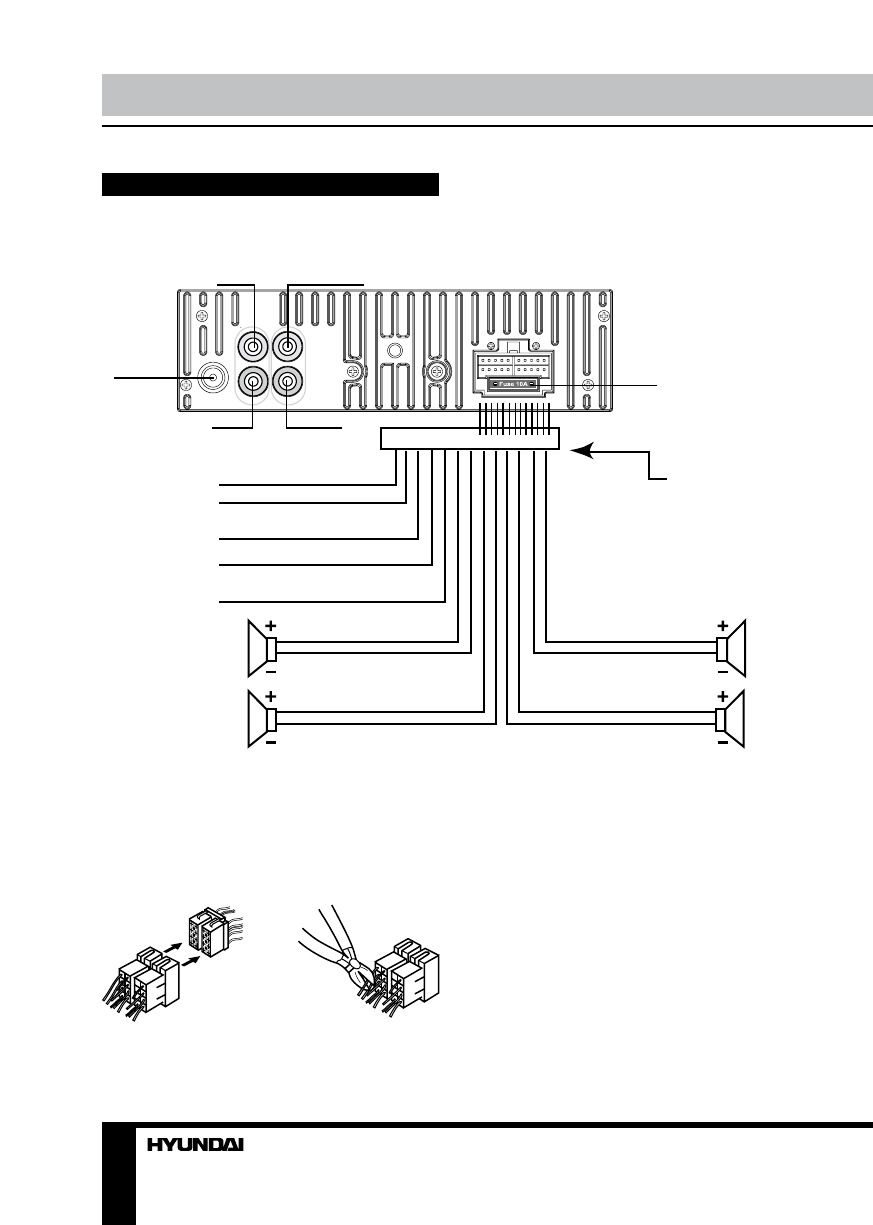

Connection diagram

SUB 1

ISO
CONNECTOR

ANTENNA

SOCKET

SUB 2

WHITE

PANEL LIGHT

POWER ANTENNA

GROUND

BLACK

POWER B+

FRONT

4 ohm

FRONT
4 ohm

REAR
4 ohm

RIGHT
SP

REAR

4 ohm

LEFT

SP

TO CAR BATTERY

MEMOTY B+

ORANGE

YELLOW

RED +12V

FUSE

GREEN

GREY

GREEN/WHITE

GREY/WHITE

BROWN

BLUE

BROWN/WHITE

BLUE/WHITE

RCA OUT RIGHT (red)

RCA OUT LEFT (white)

Using the ISO Connector

1.   If your car is equipped with the ISO

connector, then connect the ISO connectors as
illustrated.

2.  For connections without the ISO

connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.

1.

2.
