6

Installation/Connection

Connection

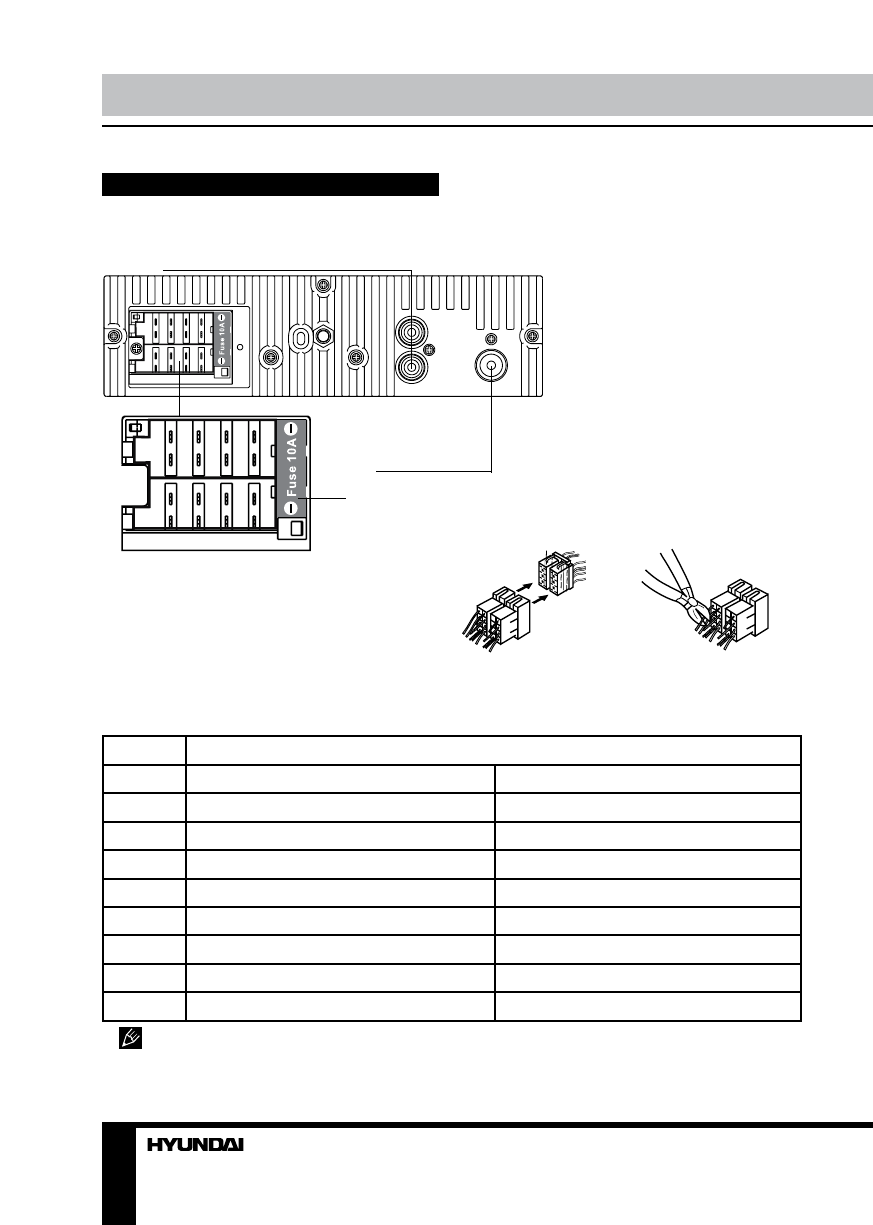

Connection diagram

FUSE

ISO CONNECTOR

ANTENNA SOCKET

RCA LINE-OUT (LEFT=WHITE; RIGHT=RED)

1

1

3

3

5

5

7

7

2

2

4

4

6

6

8

8

A

B

Using the ISO Connector

1.  If your car is equipped with the ISO

connector, then connect the ISO connectors as
illustrated.

2.  For connections without the ISO

connectors, check the wiring in the vehicle
carefully before connecting, incorrect connection
may cause serious damage to this unit.

Cut the connector, connect the colored leads

of the power cord to the car battery as shown
in the color code table below for speaker and
power cable connections.

Location

Function

Connector A

Connector B

1

Rear right (+) - Blue

-

2

Rear right (-) - Blue/White

-

3

Front right (+) - Grey

-

4

Front right (-) - Grey/White

Battery +12V/Yellow

5

Front left (+) - Green

Power antenna/Orange

6

Front left (-) - Green/White

-

7

Rear left (+) - Brown

Ignition/Red

8

Rear left (-) - Brown/White

Ground/Black

  Power antenna wire is intended for power supply of the antenna and for remote control of

an additional amplifier.

1.

2.
